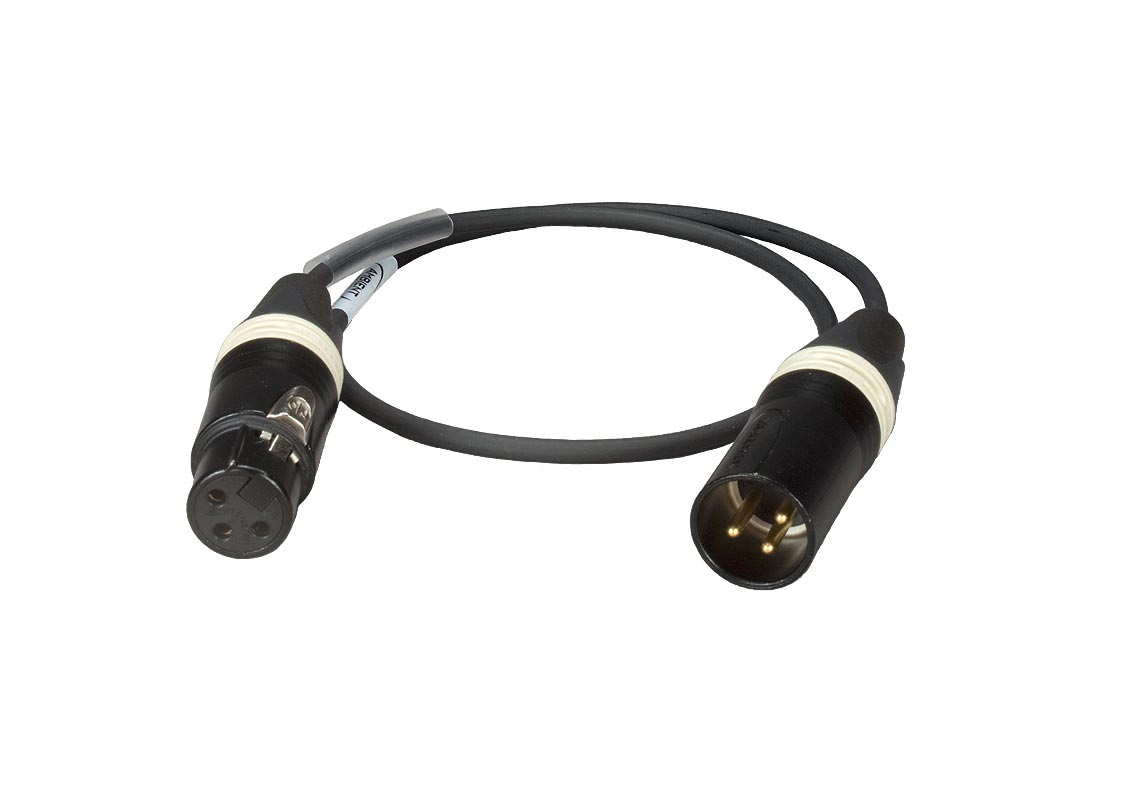

PTM "PhanTomizer" - Phantom Power / T-Power Converter

  • Phantom to T-Power Adaptor
  • 3-pin XLR male to 3-pin XLR female | 3-pin XLR male to Tuchel/ DIN 3-pin female
€145.00

plus VAT

In stock.

Quantity:

  • A80353

Features

The “Phan-T-omizer” offers an economic alternative to operate 12 Volts T-powered condenser microphones on microphone inputs, which supply only 48 Volts Phantom Power. An electronic circuit is built into the XLR-3M connector to adapt the voltage and block the Phantom Power from pin 3.

With this, the high quality T-powered Microphones (like the old Sennheiser MKH415 and MKH416 and Schoeps Colette series with CMC 4 preamp) can be used with modern mixers and recorders.

Optionally, the adaptor can be supplied with a Tuchel/DIN 3-pin female screwlock connector.

The “Phan-T-omizer” offers an economic alternative to operate 12 Volts T-powered condenser microphones on microphone inputs, which supply only 48 Volts Phantom Power. An electronic circuit is built into the XLR-3M connector to adapt the voltage and block the Phantom Power from pin 3.

With this, the high quality T-powered Microphones (like the old Sennheiser MKH415 and MKH416 and Schoeps Colette series with CMC 4 preamp) can be used with modern mixers and recorders.

Optionally, the adaptor can be supplied with a Tuchel/DIN 3-pin female screwlock connector.

  • 3-pin XLR male to 3-pin XLR female | 3-pin XLR male to Tuchel/ DIN 3-pin female
  • Weight: approx. 75 g
  • Length: approx. 40 cm
