The Compact Ambient Hydrophone
Manual

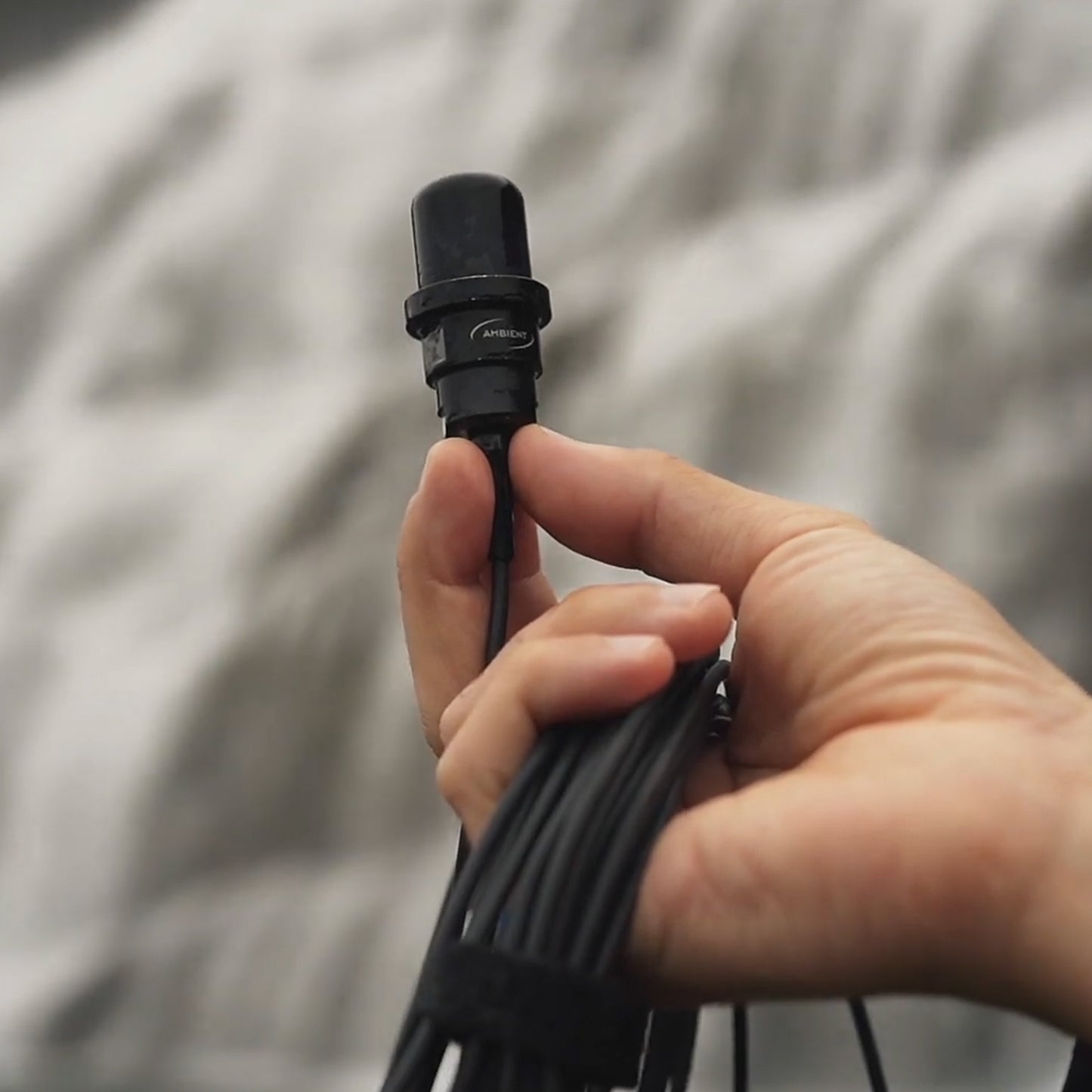

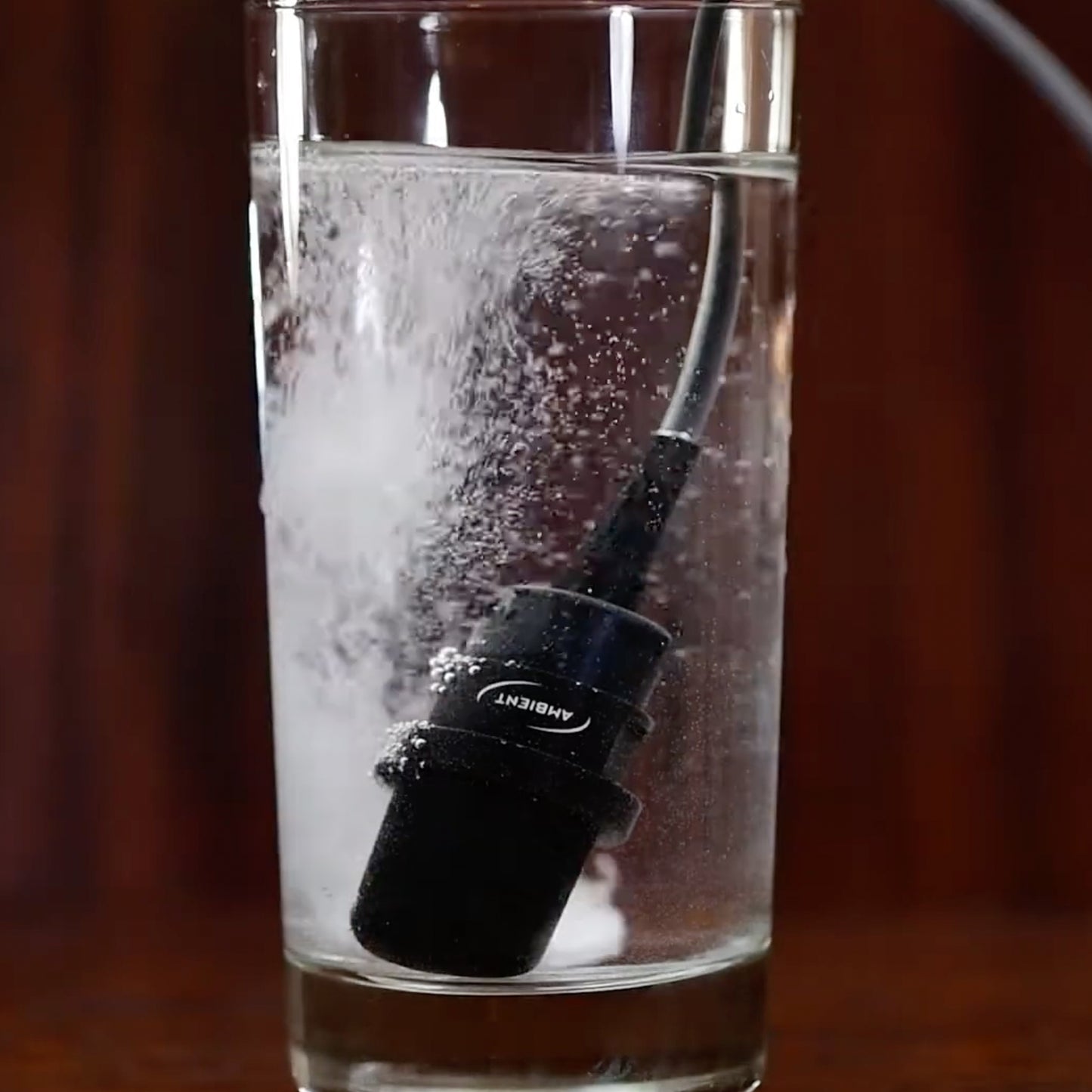

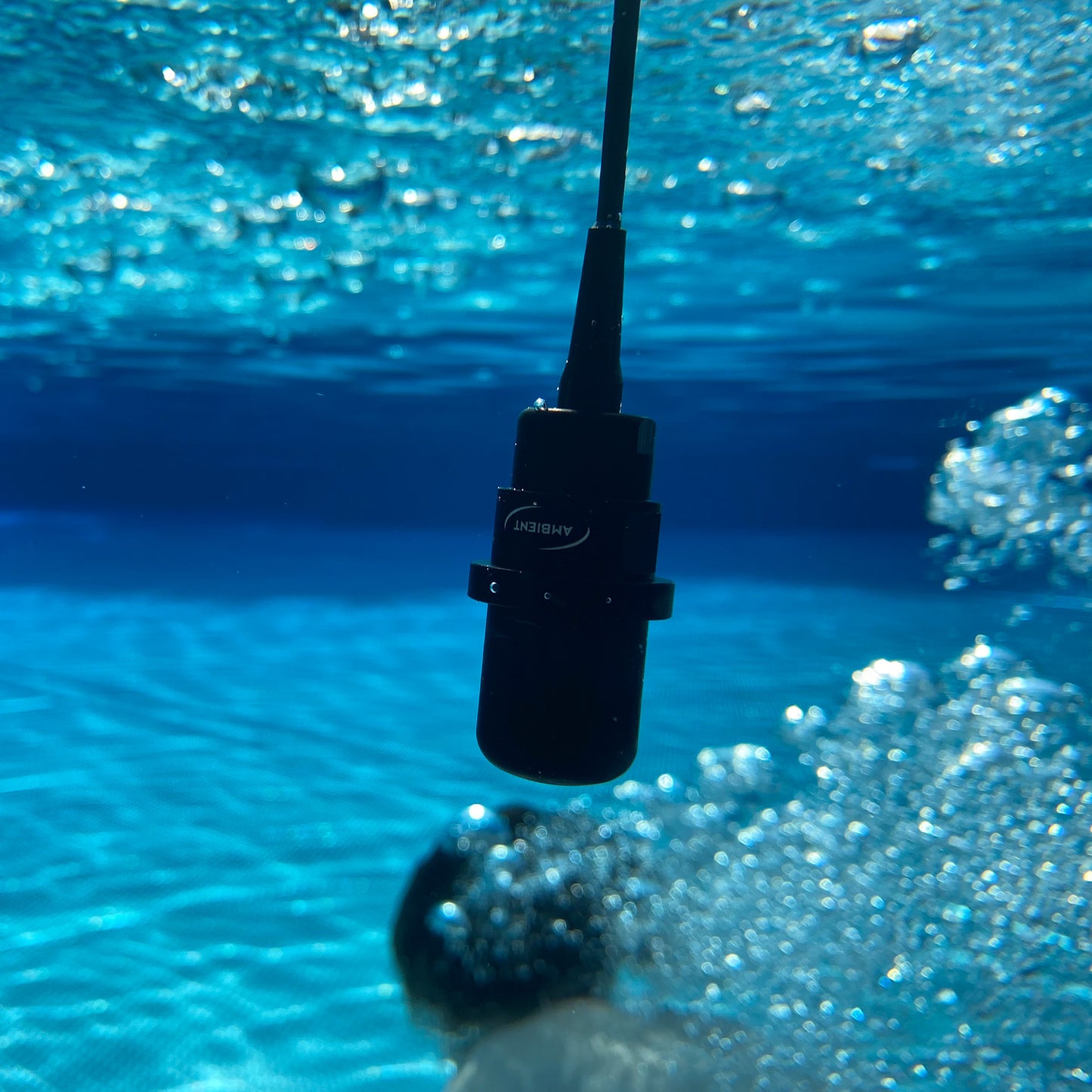

The ASF-2 MKII Hydrophone is affordable, easy to use – and simply a great sounding hydrophone. Designed with key components used in the renowned ASF-1 MKII, the ASF-2 MKII effectively utilizes the same professional hydrophone technology for outstanding underwater audio capture.
With a frequency range of 70Hz-20kHz, we designed a microphone able to capture a perfect spectrum of sounds while effectively avoiding low frequency noise created by cable handling.
Designed to withstand roughest conditions

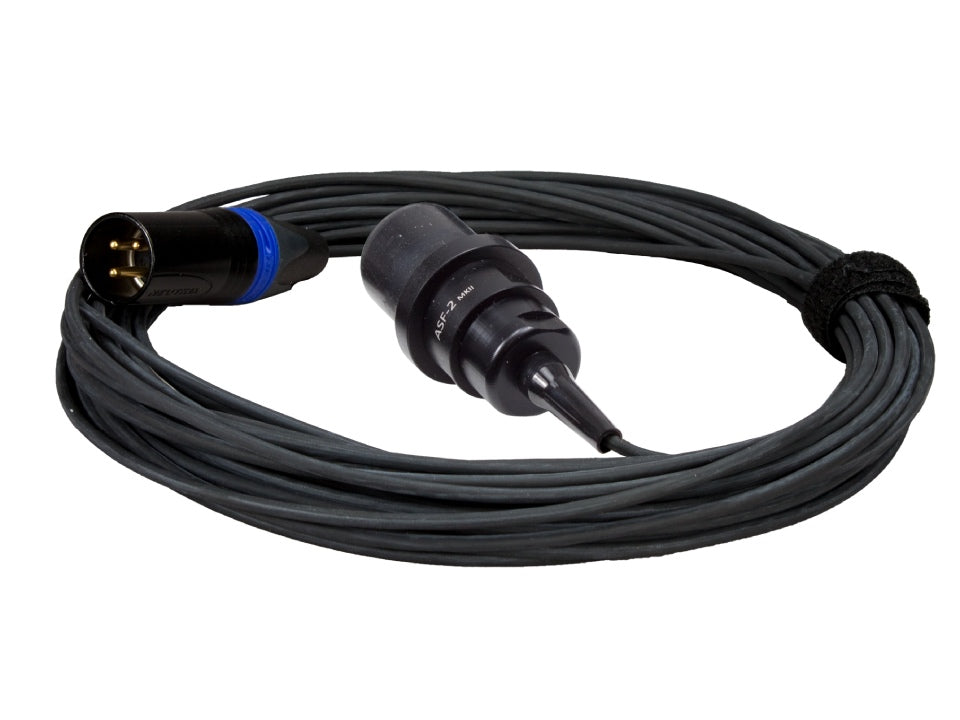

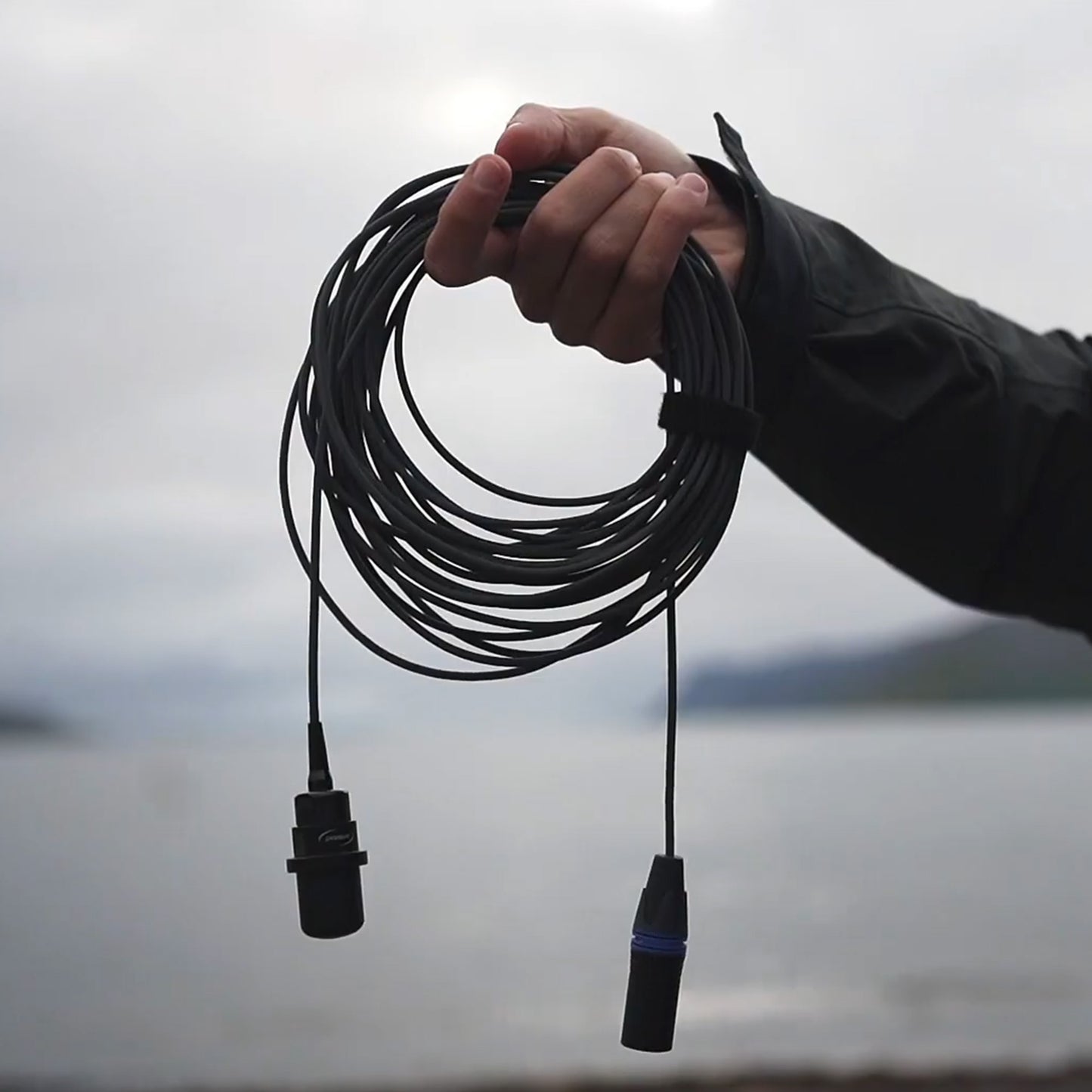

The housing is machined out of high-quality aluminium with an anodized exterior for protection against the corrosive nature of seawater, while the 10m polyurethane cable is cast into the housing for a water-tight seal. This design enables the ASF-2 MKII Hydrophone to easily withstand roughest field conditions. In addition to being an affordable hydrophone, the ground-breaking design of the ASF-2 MKII makes it affordable to operate as it is compatible with standard professional audio equipment.
Terminated with an XLR connector and powered by 48V phantom power, this plug-and-play hydrophone is designed for use with today’s professional field mixers and recorders for outstanding underwater recordings.
Never before has professional underwater audio capture been so affordable.
| Technical Details |
|---|
| Usable frequency range: 70Hz-100kHz |
| Horizontal directivity: omnidirectional ±3dB at 100kHz |
| Vertical directivity: 270° ±3dB at 15kHz |
| Sensitivity: -208dB re 1V/μPa |
| Power supply: 48V Ph |
| Dimensions (L / W / H): 75 x 30 x 30 mm (incl. bend relief) |
| Weight: 200g (incl. cable) |
| Maximum depths: 50m |
| Material: anodized aluminum |
| Capsule material: seawater resistant PUR system |
| Operating temperature: -5°C to +50°C (23°F to 122°F) |
