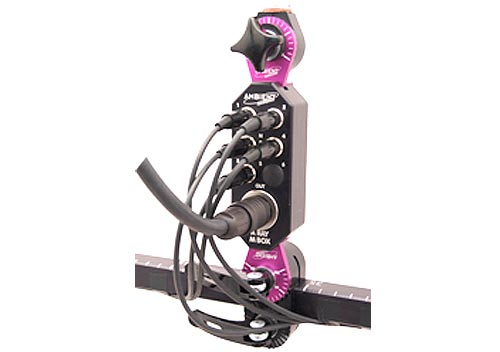

• A-MBOX mounted on the A-Ray with six microphone cables and the multicore cable connected
  • A-Ray with its arms spread out and the A-MBOX mounted at the center
1 2

Ambient

A-MBOX - Distributor Box for A-Ray

A-MBOX - Distributor Box for A-Ray

405,00 EUR

excl. VAT

405,00 EUR
Sale
  • Model: A-MBOX
  • Multicore breakout box for the A-Ray
  • 6× TA3M input
  • 1× Binder 440 output, 19-pin
  • Matching multicore cable: A-MK6
  • Aluminum housing, 180 g

Delivery time upon request

Item number: A80073

A-MBOX – breakout box for up to six microphones

The A-MBOX is a multicore breakout box for up to six microphones on the A-Ray. Its six TA3M connectors accept all kinds of microphones. The compact connector format offers professional signal routing in a very small space.

The locking Binder 440 connector (19-pin) gives you a secure connection to the A-MK6 multicore cable. For your microphones there are the A-MXL-2F adapter cable (XLR-3F to TA3F) and the A-MK1.2LU for the Schoeps Colette system.

The A-MBOX mounts on the A-Ray in just a few steps. Cables are not included.

  • Dimensions (W × H × D): 40 mm × 180 mm × 30 mm
  • Weight: 180 g
  • Material: aluminum
  • Connectors: 6× TA3M input, 1× Binder 440 output (19-pin)
  • A-MBOX breakout box
