ALP620 - passive LPDA antenna

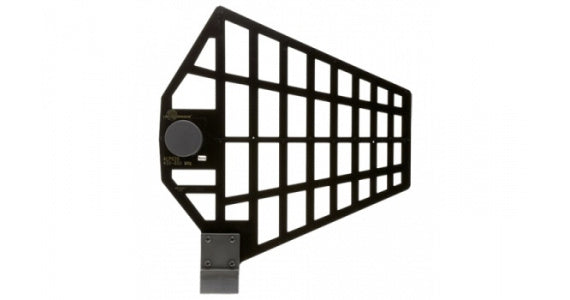

ALP620 – Shark Antenna, Passive, Skeletal Design, 450–862 MHz

The ALP series features a Log Periodic Dipole Array (LPDA) design, providing a directional reception pattern across a wide frequency range. The skeletal construction significantly reduces wind load – ideal for outdoor use or mobile setups.

ALP500, ALP620 – Technical Specifications

• Gain (directional):
  +7 dBi (isotropic) / +4 dBd (over dipole)
• Frequency Range: 450–862 MHz
• Weight:
ALP500: 403 g / ALP620: 266 g
• Connector: 50 Ohm BNC
• Dimensions: 12” high × 10.5” deep × 1.5” wide (30.5 cm × 26.7 cm × 3.8 cm)
