Lectrosonics

DSQD - Digital 4-Channel Receiver w/ Dante

DSQD - Digital 4-Channel Receiver w/ Dante

5.255,00 EUR

excl. VAT

5.255,00 EUR
Sale

Ready to ship in 14 days

Item number: A00189

Description

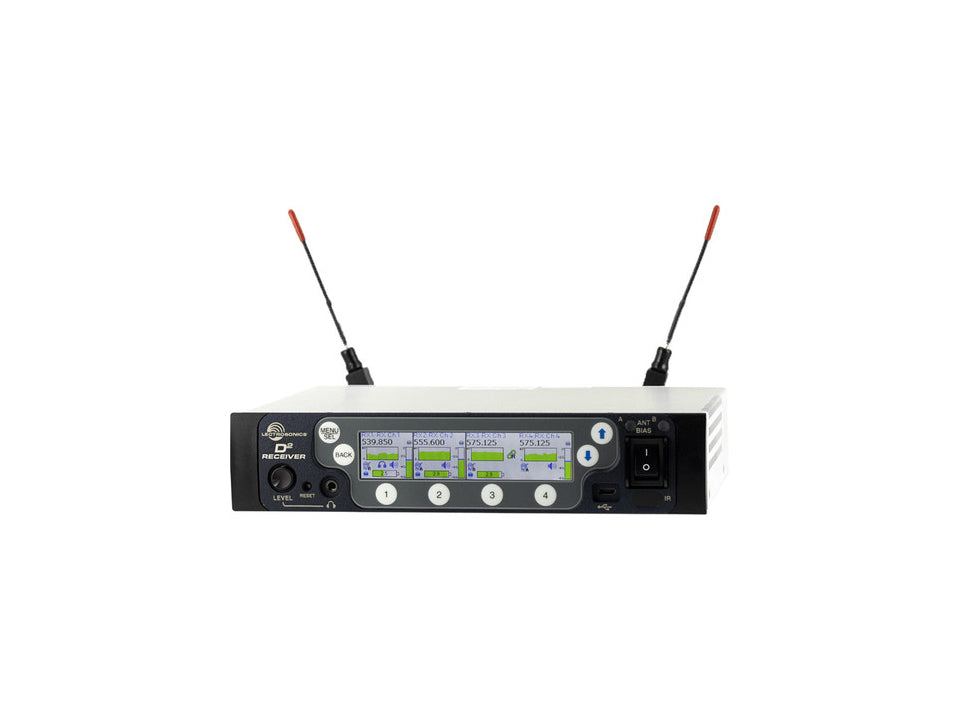

The DSQD Half Rack Receiver with analog and digital Dante® network audio outputs utilizes the Lectrosonics signature digital architecture with remarkable audio quality and ultra-low latency. The receiver includes an extended operating range rivaling the best analog and Digital Hybrid Wireless® systems with continuously tunable tracking filters covering 470.100 – 614.375 MHz.

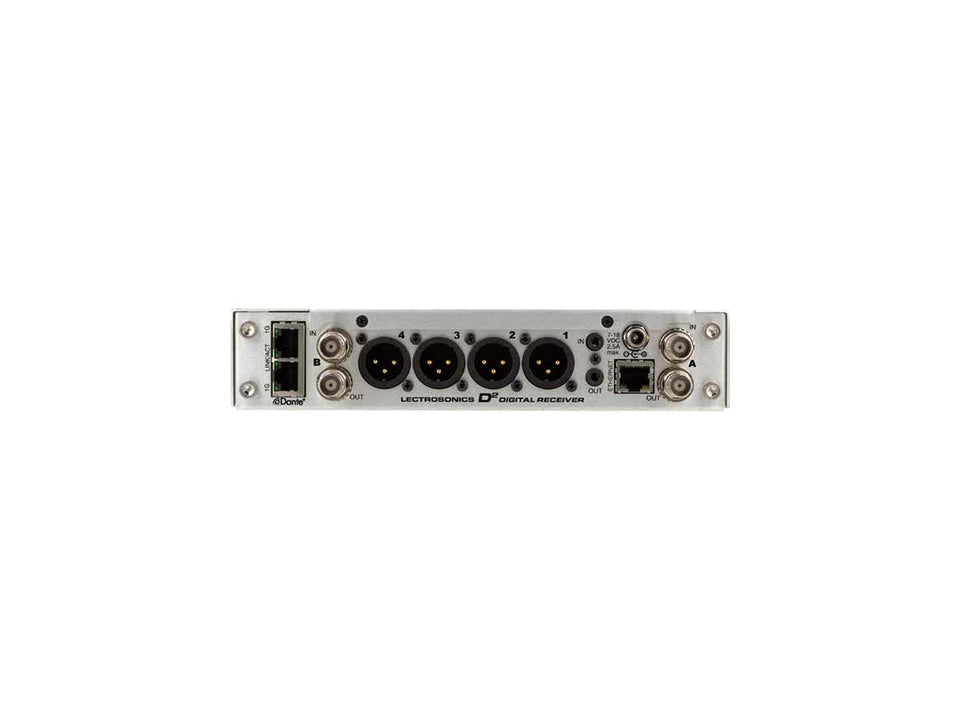

Antenna ports on the rear panel accept input from remote antennas, with a “loop-thru” output to another mainframe using the internal multicoupler. A kit is also available to mount antenna inputs (BNC connectors) on the front panel.

  • Four-channel, half-rack design
  • Continuously tunable tracking filters covering 470.100 – 614.375 MHz
  • Compatible with D2, DSW, Duet and Digital Hybrid Wireless® transmitters
  • Built-in wideband antenna multicoupler with loop-thru for additional receivers
  • Antenna bias power enabled from the front panel (fused and over-temperature protected)
  • IR bi-directional port for transmitter setup
  • Analog and Dante® audio outputs with TalkBack (in applicable RX modes)
  • Ethernet and USB interface
