Lectrosonics

DSR - Digital 2-Channel Receiver

DSR - Digital 2-Channel Receiver

2.768,00 EUR

excl. VAT

2.768,00 EUR
Sale
Frequency range
  • Two independent channels, compact design
  • Vector diversity for superior performance
  • Compatible with huge existing ecosystem
  • Compatible with D2, HDM, Duet and DCHX Digital modes and all hybrid modes
  • 24 bit/48 kHz digital for flawless audio
  • AES 256-bit, CTR mode encryption, with 4 different key policies available
  • Analog and AES3 digital audio outputs

Ready to ship in 14 days

Item number: A14436

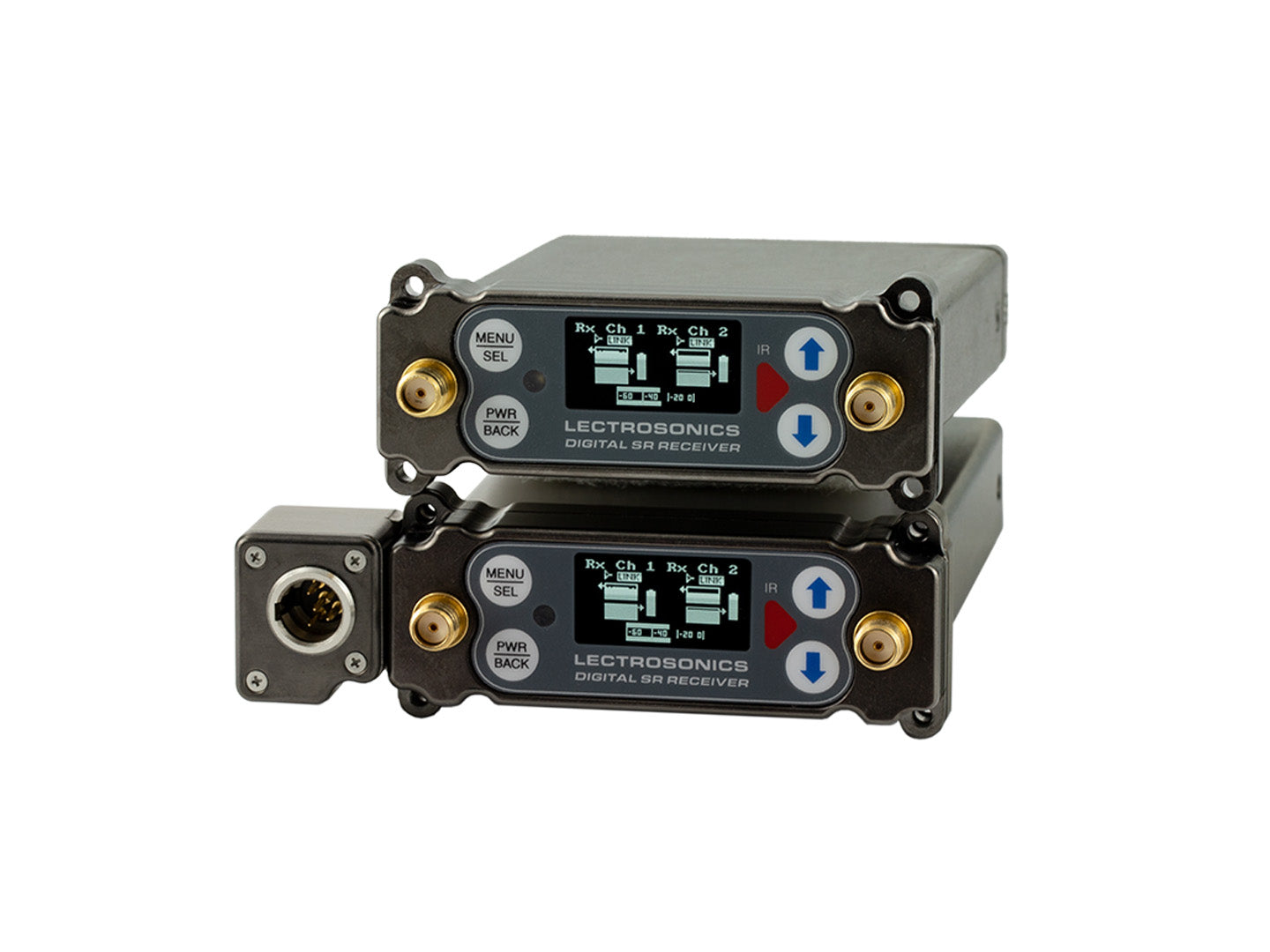

The DSR and DSR5P digital receivers provide the highest level of RF and audio performance available with a versatile feature set in a compact design for camera mounted applications. Settings can be made from the front panel, making the unit ideal for use in camera hop configurations, in bags and on sound carts. An RF spectrum analyzer and SmartTune are built into the receivers to alleviate interference problems in an increasingly congested RF spectrum.

The mechanical design of the receivers fits into the SuperSlot ecosystem and combines field-proven features developed over many years of experience in motion picture and television production. To decrease weight, the DSR/DSR5P provide a two channel receiver in one unit powered by external DC. The receivers are also equipped with an IR port for data transfer between units. The machined aluminum housing and panels are surfaced with a hard-anodized finish with laser etched markings to
withstand the rigors of field production.

The RF gain stages in the front end use a newly developed design to provide low noise RF amplification, excellent sensitivity and extremely low susceptibility to intermodulation and de-sensitization.

  • Model A1B1: 470.100 - 614.375
  • Model B1C1: 537.600 - 691.175
  • 941: 941.525 - 959.825
  • 961: 961.100 - 1014.900

NOTE: It’s the user’s responsibility to select the approved frequencies for the region where the transmitter is operating.

  • Frequency Selection Steps: 25 kHz
  • Frequency Stability: ±0.001 %
  • Front end bandwidth: ±5.5 MHz, @ -3 dB
  • Sensitivity: 20 dB Sinad: 0.9 uV(-108 dBm), A weighted
  • 60 dB Quieting: 1.12 uV (-105 dBm), A weighted
  • AM rejection: >60 dB, 2 uV to 1 Volt
  • Modulation acceptance: 85 kHz
  • Spurious rejection: 85 dB
  • Third order intercept: +11 dBm
  • Diversity method: Vector diversity
  • Antenna inputs: 50 Ohm; SMA female connectors
  • Audio output connectors:
  • Front panel output: Control panel TA5M with two balanced outputs (5P model) (either analog or AES3)
  • Audio Performance (overall system):

Note: The dual envelope “soft” limiter provides exceptionally good handling of transients using variable attack and release time constants. Once activated, the limiter compresses 30+ dB of transmitter input range into 4.5 dB of receiver output range, thus reducing the measured figure for SNR without limiting by 4.5 dB.

  • Input Dynamic Range: 125 dB (with full Tx limiting)
  • Overall Latency (time delay): 1.4 ms with digital source
  • Weight:
  • Dimensions
  • 1x DSR digital two channel receiver
  • 1x Quickstart guide
  • 2x AMJ-19 jointed SMA antennas
  • 2x AMJ-22 jointed SMA antennas
