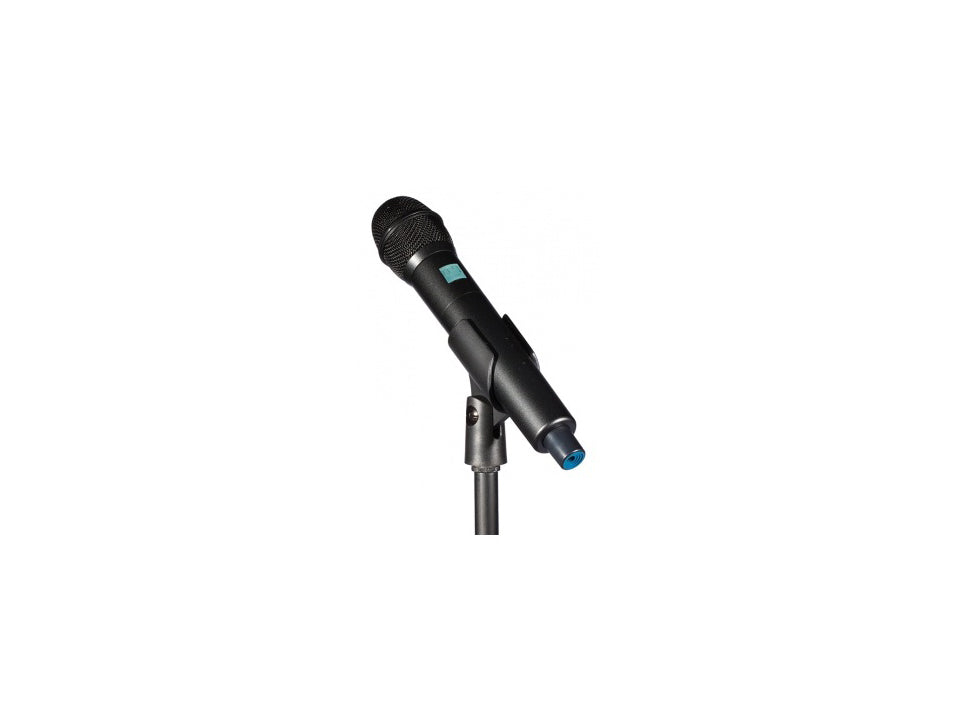

HHA/E01 - Handheld Transmitter

Description

The HHa Digital Hybrid Wireless handheld transmitter represents an elegant solution for a variety of wireless microphone applications including live performance, broadcast, AV rental and houses of worship. The HHa incorporates many advanced features to provide highquality speech and vocal reinforcement. Along with providing peerless audio quality with wide frequency response and dynamic range in native 400 Series mode, the technology used in the HHa includes compatibility modes for Lectrosonics 200 Series, 100 Series and IFB receivers, and some systems from other top manufacturers.

The SSM is available in three different frequency blocks:

Features

• 25 or 100 kHz tuning steps for up to 3072 selectable frequencies across a 76 MHz tuning range
• Digital Hybrid Wireless® Technology
• Standard thread-on capsules
• Membrane switch and LCD interface
• AA battery power
• Selectable RF power at 50 and 100 mW
• Talkback feature
• IR (Infrared) Port for fast setup

List of compatible capsules

The following capsules are known to fit properly and have the correct current draw/audio connections to work with the HH:

Lectrosonics

• HHC cardioid condenser element
• HHVMC cardioid condenser element with VariMic™ tone controls

Shure®

• RPW112 capsule head with SM58 dynamic element
• RPW120 capsule head with Beta 87A condenser element
• RPW122 capsule head with Beta 87C condenser element
• RPW118 capsule head with Beta 58A dynamic element
• RP114 capsule head with SM86 condenser element
• RPW184 capsule head with KSM9 dual-element condenser
• RPW124 capsule head with VP68 omni condenser element
• RPW186 capsule head

EV®

• RC2-767 – Supercardioid dynamic N/D767a
• RC2-967 – Supercardioid dynamic N/D967
• RC2-PL80a – Supercardioid dynamic PL80a
• RC2-410 – Cardioid condenser RE410
• RC2-510 – Supercardioid Condenser RE510

Heil Sound™

• RC35

Earthworks®

• WL40V

BLUE®

• Encore 300 (not yet on the market)

Audix®

(all Audix capsules require a Sound Tools audix2shure adapter)T363-CA capsule assembly with OM3 dynamic element)

• T365-CA capsule assembly with OM5 dynamic element
• T366-CA capsule assembly with OM6 dynamic element
• T367-CA capsule assembly with OM7 dynamic element

DPA®

• d:facto II

Neumann®

(all Neumann capsules require an adapter – see below)

• KK104-S cardioid condenser element (requires Ambient HHA adapter set at 15V)
• KK105-HD supercardioid condenser element (requires Ambient HHA adapter set at
• 15V)
• KK105-S supercardoid condenser element (requires Ambient HHA adapter set at 15V)
• KK204 cardioid condenser element (requires Lectrosonics HH2SEN adapter)
• KK205 supercardioid condenser element (requires Lectrosonics HH2SEN adapter)

Sennheiser®

(all Sennheiser capsules require an adapter – see below)

• MD5235 dynamic cardioid element (requires Ambient HHA adapter)
• ME5002 omni condenser element (requires Ambient HHA adapter set at 7V)
• ME5004 cardioid condenser element (requires Ambient HHA adapter set at 7V)
• ME5005 supercardioid condenser element (requires Ambient HHA adapter set at 7V)
• ME5005-E supercardioid condenser element optimized for live sound applications
• (requires Ambient HHA adapter set at 7V)
• ME5009 wide cardioid condenser element (requires Ambient HHA adapter set at 7V)
• MMD835-1 cardioid dynamic element (requires Lectrosonics HH2SEN adapter)
• MMD845-1 supercardioid dynamic element (requires Lectrosonics HH2SEN adapter)
• MME865-1 supercardioid condenser element (requires Lectrosonics HH2SEN
• adapter)
• MMD935-1 cardioid dynamic element (requires Lectrosonics HH2SEN adapter)
• MMD945-1 supercardioid dynamic element (requires Lectrosonics HH2SEN adapter)
• MME965-1 dual pattern condenser element (requires Lectrosonics HH2SEN adapter)

*The brand names and product models listed here are trademarks of their respective companies and copyright holders. These companies have no direct relationship with Lectrosonics.
