M2C-L - antenna combiner 8-IN/1 OUT

The M2C-L active antenna combiner can feed up to eight digital transmitters through a single antenna to minimize cabling in multi-channel systems. The inputs are isolated to minimize crosstalk and intermodulation (IM) between RF channels.

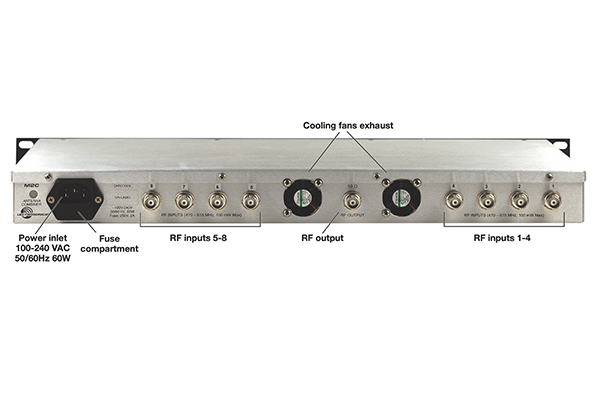

• Combines up to 8 RF output signals from transmitters to feed a single antenna
• Frequency range: 470 to 614 MHz
• High-load components minimize intermodulation products
• Up to 100 mW input on each port
• Efficient architecture for low power consumption
• USB port for firmware updates

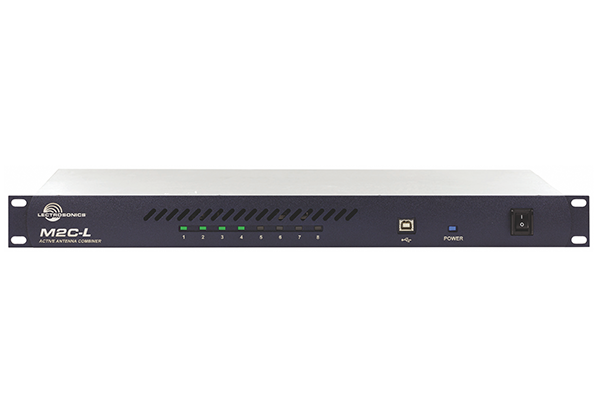

• Front panel LEDs indicate active channels
• Made in the USA

The overall design architecture provides excellent performance with low power consumption and minimal heat generation. Front panel indicators show the active status of the RF inputs. A USB port on the front panel is provided for firmware updates.
