MTCR - Miniaturrecorder mit Timecode

When distances are too great or wireless microphones are impractical, the MTCR recorder can record audio with timecode directly on your subject. Its tiny size makes it easy to conceal in clothing and costumes, or use as a “plant” microphone for capturing environmental or location sound.

• Professional digital audio recordings in Broadcast Wave Format (BWF).
• Ultra-compact size.
• Records to microSDHC memory cards.
• Wide input gain adjustment for mic and line level signals.
• Timecode jam/sync from external source.

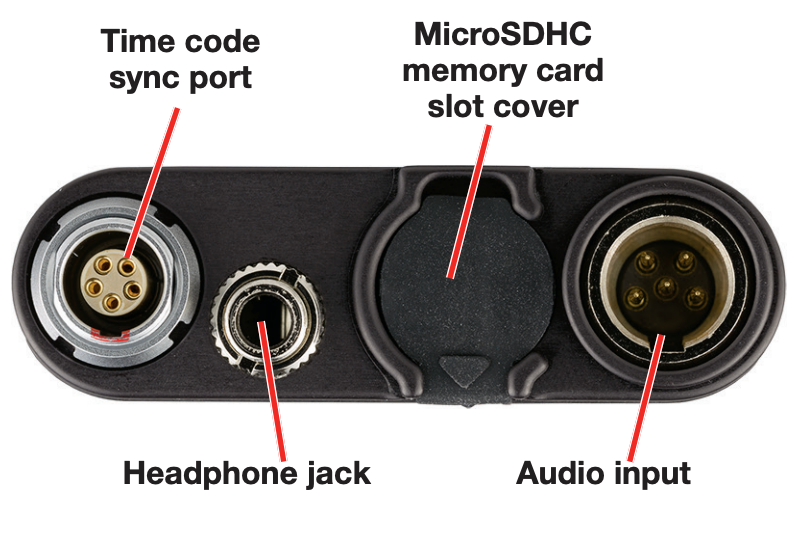

• Standard Lectrosonics TA5M input jack.
• Lectrosonics “servo bias” input preamp.
• Solid machined aluminum housing.

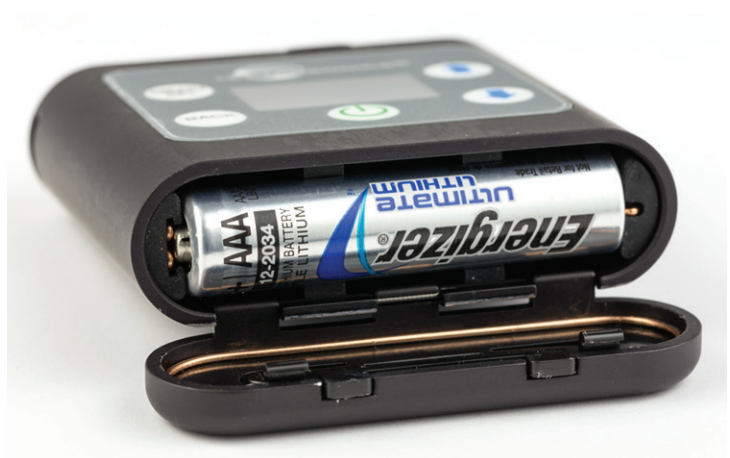

• Over six hours of operation with a single AAA lithium battery.

With timecode synchronization, audio tracks can be precisely aligned with video timelines. The .wav (BWF) format is compatible with nearly any audio or video software.

The recorder can be connected to a camera for high-quality or backup audio. The standard TA5M jack supports mic or line signals and powers electret lavalier microphones. Wiring is compatible with Lectrosonics wireless microphones.

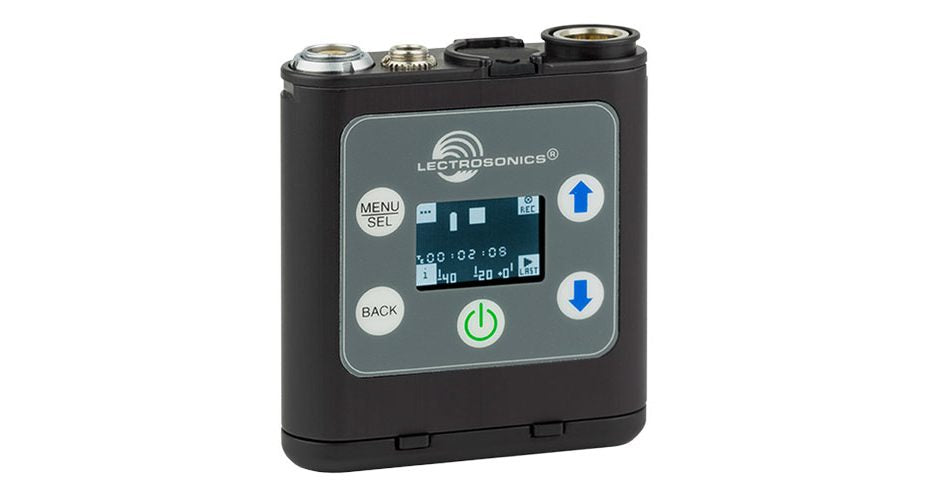

The device is operated via an intuitive keypad and LCD display. The rugged machined aluminum housing, as with all Lectrosonics gear, is designed for tough outdoor production use.

Includes microSD card and belt clip.

Audio Specifications:

• Frequency response: 20 – 20 kHz
• 105 dB(A) signal-to-noise ratio (in HD mono mode), <0.035% distortion
• Timecode compliant with SMPTE 12M – 1999
• MTCR dimensions: 60x54x17 mm, weight: 71 grams (with battery)
