Lectrosonics

LMB/E01 - Bodypack Transmitter

LMB/E01 - Bodypack Transmitter

944,00 EUR

excl. VAT

944,00 EUR
Sale
Frequency range

Ready to ship in 14 days

Item number: A00252

Description

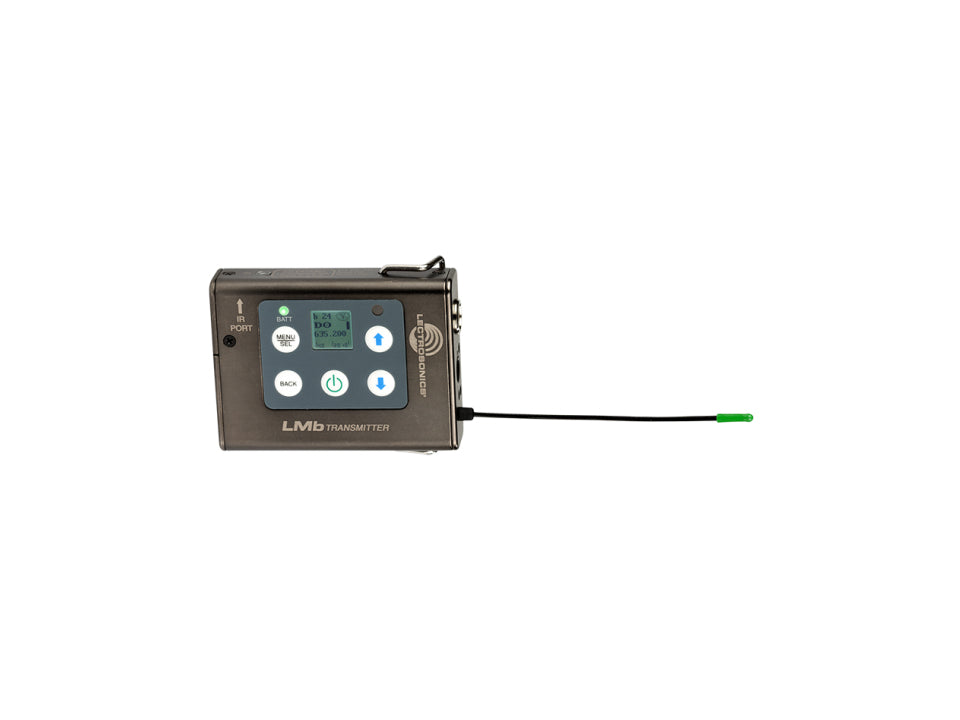

The LMB/E01 is the latest successor in Lectrosonics’ line of economical beltpack transmitters designed for applications including theater, house of worship, TV, ENG, video and film production.

The LMB/E01 features an all-metal housing, wire belt clip, 50 mW of RF power, 25 or 100 kHz tuning steps (yielding up to 3,072 selectable frequencies) and an integrated multi-function switch with menu-selectable modes for power, mute or talkback. A graphic LCD and membrane switch panel plus IR synch port make setup and operation a snap. Power is provided via two AA batteries.

 All three L Series units are available in three different frequency ranges for worldwide use:

LMB/E01-A1

(470.100 – 537.575 MHz)

LMB/E01-B1

(537.600 – 614.375 MHz)

LMB/E01-C1

(614.400 – 691.175 MHz)

  • Digital conversion: 24 bit/88.2 kHz sampling rate.
  • Frequency response: 40 to 20 kHz +/- 1 dB, THD+N = 0.3 % in Digital Hybrid mode, to 95 dB s/n ratio.
  • Audio output levels are adjustable from – 50 to +5 dBu in 1dB steps.
  • Compander free audio
  • 75 MHz pass band covers more than 12 NTSC TV channels or 8 PAL channels
  • UHF from 470-698MHz in three bands
  • User selectable tuning setups - 100kHz or 25kHz
  • Compatible with all Lectrosonics receivers
  • Emulation modes
  • Machine Aluminum Housing with wire belt clip
  • AA batteries
  • IR sync port
  • Multi-function top switch user programmable for Mute, Power or Disabled
  • 50mW RF power output
  • 24 bit/88.2 kHz sampling
  • 82" x 2.37" x 3.16"
