Lectrosonics

LR - Bodypack Receiver

LR - Bodypack Receiver

Digital Hybrid Wireless® LR Receiver

1.685,00 EUR

excl. VAT

1.685,00 EUR
Sale
Frequency range

Ready to ship in 14 days

Item number: A00257

Description

The ultra-compact LR receiver takes the Lectrosonics Digital Hybrid Wireless® compact receiver concept to an entirely new level. Designed to be ultra-portable for use with DSLR, 4/3, small 4K, and other compact HD cameras, the LR’s diminutive size belies the technology inside. The wide tuning bandwidth with tracking front-end filters provides plenty of flexibility while avoiding the vulnerabilities of wider pass bands. Tuning steps are user selectable at 25 or 100 kHz, yielding up to 3,072 operating frequencies.

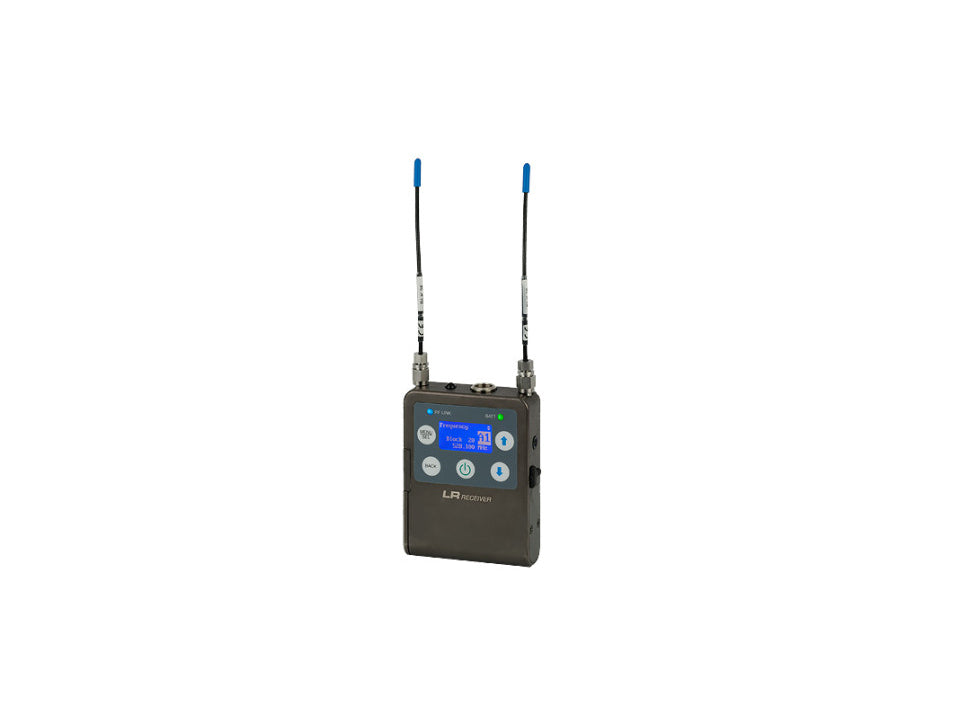

Compatibility modes enable the LR to operate with older analog transmitters. Dual antenna diversity improves range and resistance to dropouts. The RF spectrum analyzer and Lectrosonics’ SmartTune capability make quick work of finding clean frequencies on site. A large, backlit LCD provides instant, clear information for setup and status monitoring while operational. Detachable antennas allow for remote antenna mounting.

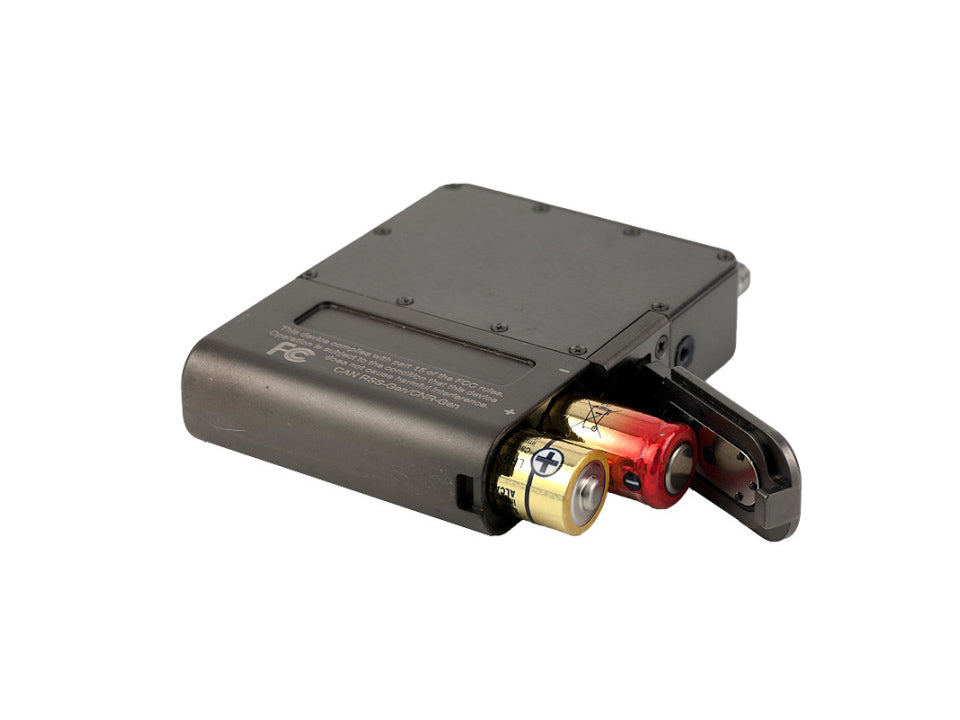

The LT is housed in the latest machined aluminum shell with super-hard EbNi ‘Ebony’ conductive finish. The unit is powered with two AA batteries.

 All three L Series units are available in three different frequency ranges for worldwide use:

A1

(470.100 – 537.575 MHz)

B1

(537.600 – 614.375 MHz)

C1

(614.400 – 691.175 MHz)

  • Digital conversion: 24 bit/88.2 kHz sampling rate.
  • Frequency response: 40 to 20 kHz +/- 1 dB, THD+N = 0.3 % in Digital Hybrid mode, to 95 dB s/n ratio.
  • Audio output levels are adjustable from – 50 to +5 dBu in 1dB steps.
  • Compandor free audio
  • Wide band with tracking front end filters for RF reliability
  • UHF from 470-698MHz in three bands
  • Dual Antenna Diversity with detachable antennas
  • Balanced audio output
  • Smart Tune for rapid field setup and frequency selection
  • Backlit LCD with IR Sync
  • Choice of tuning setups - 100kHz or 25kHz
  • Compatibility Modes
  • Audio output levels are adjustable from - 50 to +5 dBu in 1dB steps.
  • Dimensions: .74" x 2.44" x 3.22"
