M2TND/E01 - DUET Digital IEM/IFB Transmitter

Description

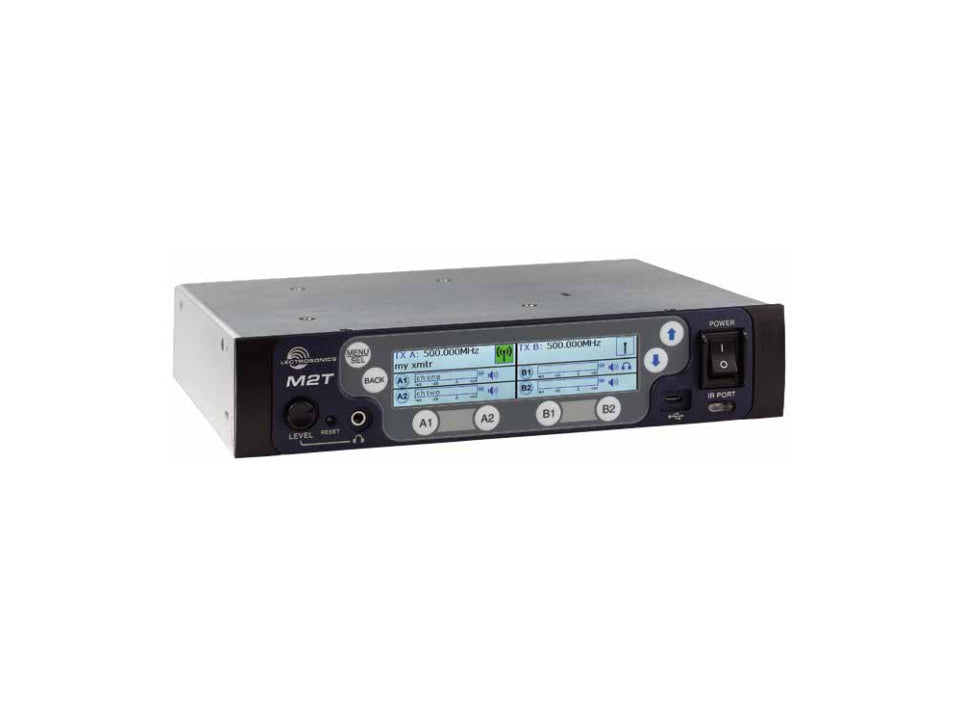

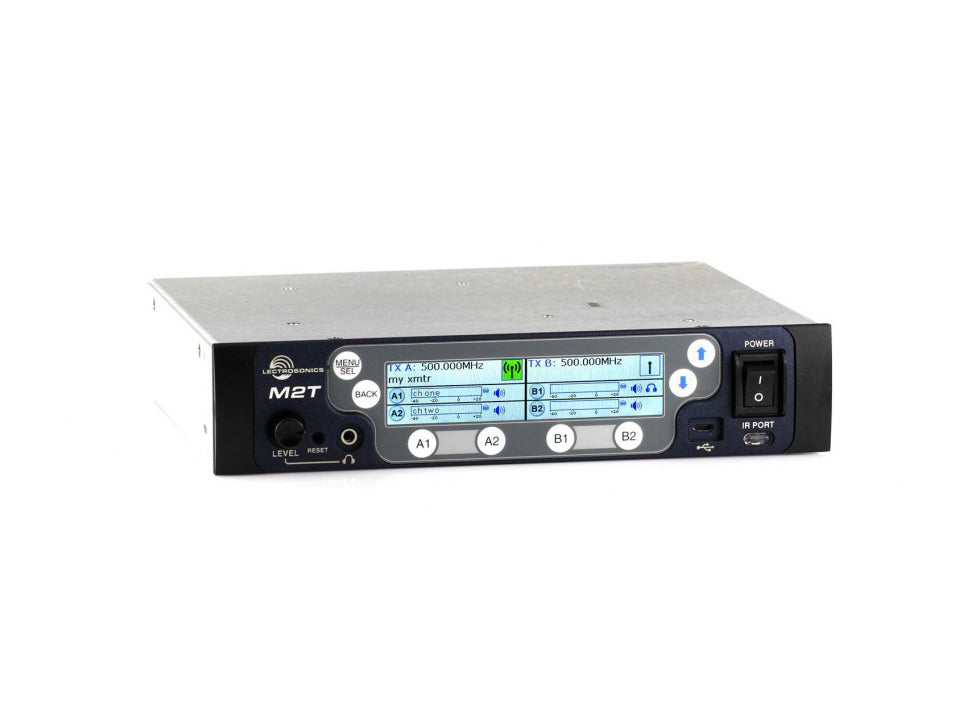

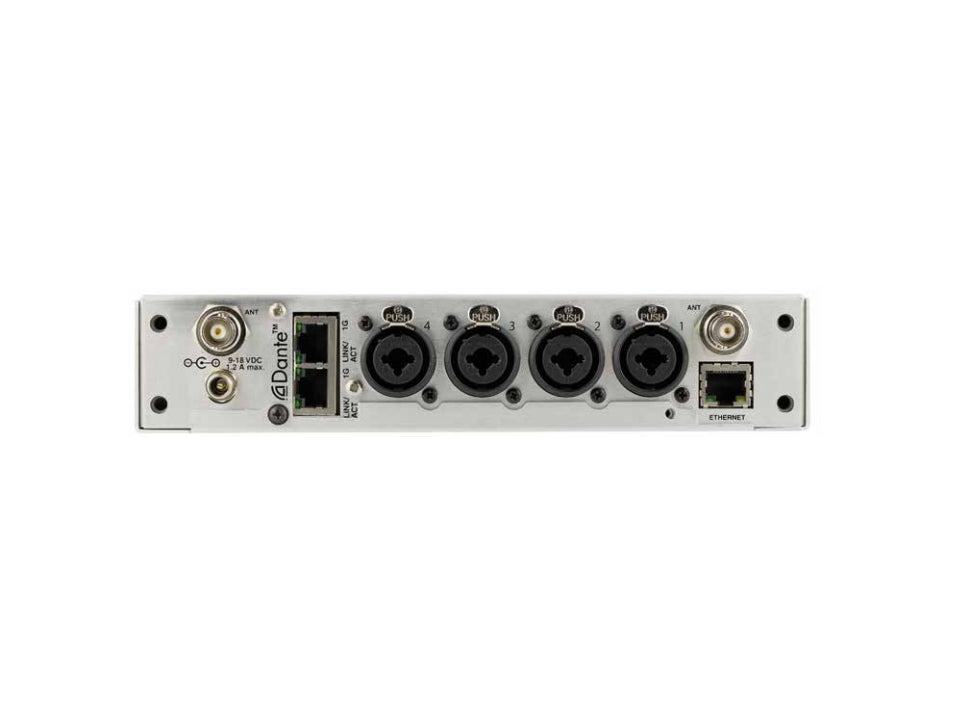

The M2T half-rack transmitter houses two stereo transmitters to provide two stereo audio channels, and for up to four mono audio channels in a single rack space. The audio inputs can be individually configured to be analog or Dante compatible. The analog input connectors are full-size XLR/TRS combo types for balanced line-level analog signals while the input preamp circuits use a special balanced amplifier with very high common mode rejection to minimize hum and noise. A Dante™ Ultimo™ interface via dual RJ45 connectors accepts Dante networked audio inputs and can cascade the digital stream to additional units via CAT6 cables. An additional RJ45 jack provides an Ethernet connection for programming and control via Wireless Designer™ software and a USB jack on the front panel allows for firmware updates. The transmitter features a full color, backlit LCD for high visibility in any environment, while the chassis is all-metal and can be racked singly or in pairs using included rack mount hardware.

Features

• IEM (Wireless Monitor) with digital RF transmission
• 24-bit digital audio
• 2 independent stereo audio transmissions per 1/2 RV enclosure
• USB port for firmware updates
• Fully Dante™ compatible
• IR (infrared) port for fast setup
• Up to 50 mW per Rf carrier
• All metal housing
• Compatible with Wireless Designer™ Software
