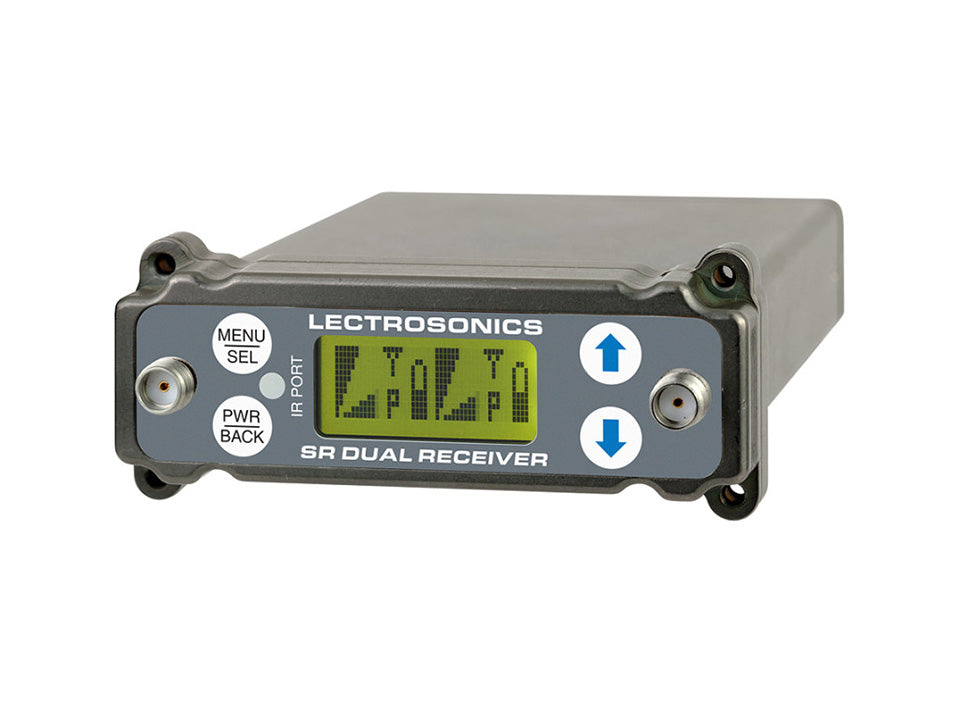

SRC - 2-Channel Receiver

Description

The SRc5P and SRc consists of two separate receivers built into a single, ultra compact housing with adapters for video camera receiver slots and for stand-alone use. Digital Hybrid Wireless® technology provides superb, compandor-free audio quality and compatibility with other wireless systems.

The RF performance is extremely stable over a very wide temperature range, making the receiver perfectly suited to the rough environmental conditions found in field production.

DSP compatibility modes allow the receiver to be used with a variety of Lectrosonics systems, other brands of wireless systems and with Lectrosonics IFB transmitters.

Features

• Fits camera “slots,” Lectrosonics Duopack adapter and Octopack multicoupler, and operates stand-alone with various adapters
• Tunes over a 75 MHz range* (3 blocks)
• Dual receiver design for two channels with phase switched diversity or single channel with ratio diversity operation
• Digital Hybrid Wireless® with compatibility modes for use with other transmitters

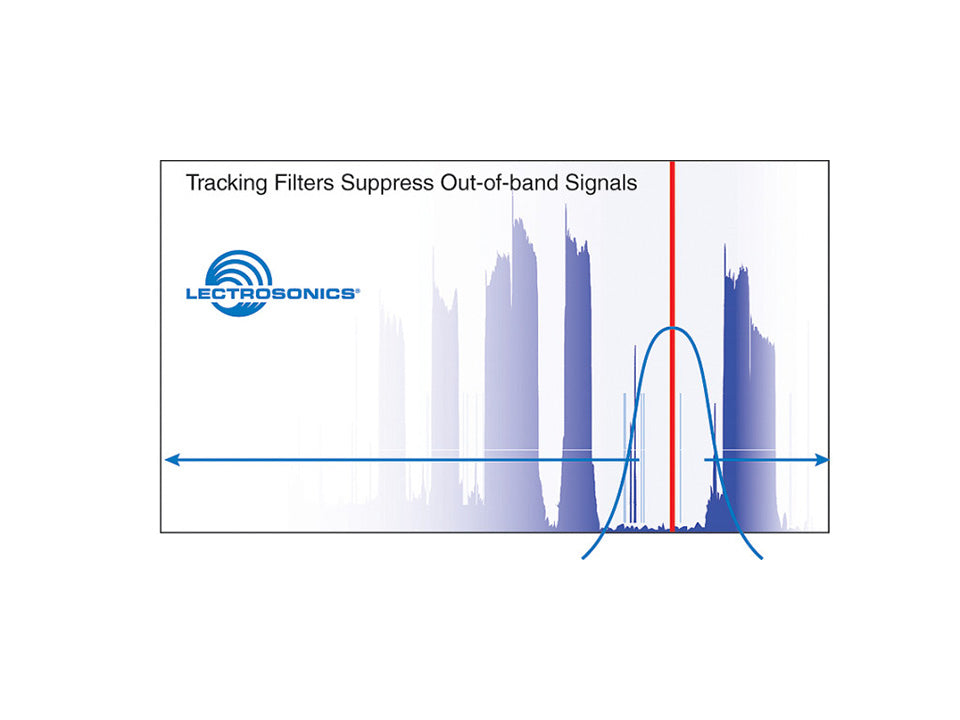

• Tracking front-end filters for high performance in tough RF environments
• LCD with RF spectrum scanning
• SmartSquelchTM DSP-controlled, noise based filtering and squelch
• DSP-based pilot tone for squelch control
• IR sync port for quick transmitter setup (LMb, LT, HHa, HMa, & SSM)
• SmartTune operation for quick and confident frequency selection

The receiver SRc/E01 is available in three different frequency ranges for worldwide use:

IKEGAMI

All current Ikegami camcorders with Uni-Slot receiver mounts are dual-channel capable in the slot with a simple switch activation on the UI board, including models:

• HDS-V10
• HDN-X10
• DNS-33W

Contact engineering at Ikegami for details:

website:http://www.ikegami.co.jp/global/

e-mail: engineering@ikegami.com

phone: (201) 368-9171

PANASONIC

SR Compatibility with Panasonic Professional Camcorders:

Cameras currently shipping with the two-channel* audio operation within the receiver slot (Unislot) with the SR/SRa Receivers. If you have an older version of these cameras,

you may need a firmware upgrade available from Panasonic.

• AG-HPX300
• AJ-HPX2000
• AJ-HPX2100
• AJ-HPX2700
• AJ-HPX3000
• AJ-HPX3700

*Note: SRc, Src5P, SRb, SRb5p, SR, SRa, SR5P and SRa5P Receivers all operate in diversity mode in either single or dual-channel modes.

Cameras requiring SRa5P Receiver and external audio inputs for two channel operation.

• AG-HPX500
• AG-HDX900
• AJ-SPX900/800
• AJ-SPC700

Information Provided By Panasonic Japan
