Voice Technologies

VT506 - Lavalier Microphone with Presence Boost

VT506 - Lavalier Microphone with Presence Boost

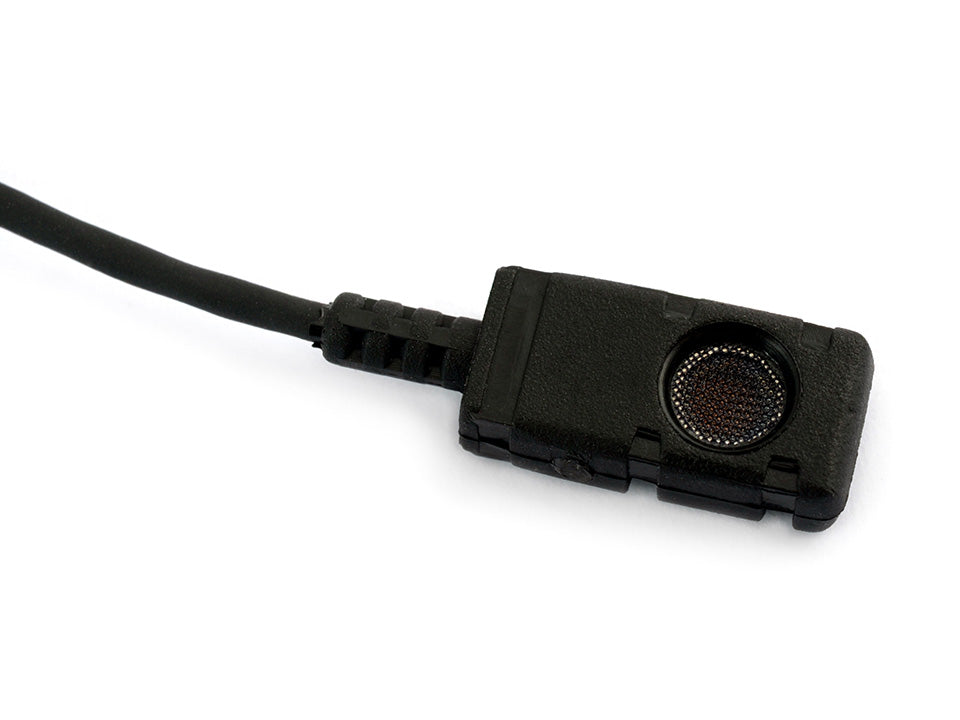

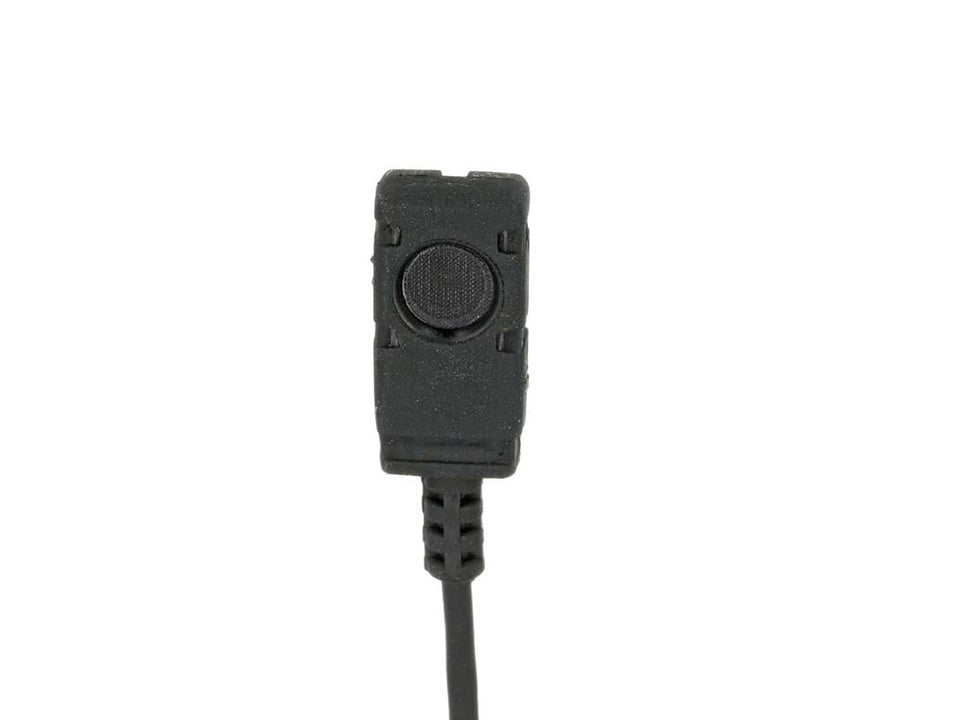

Miniature lavalier microphone

Regular price 297,60 EUR

excl. VAT

Regular price Sale price 297,60 EUR
Sale
Color
Accesories

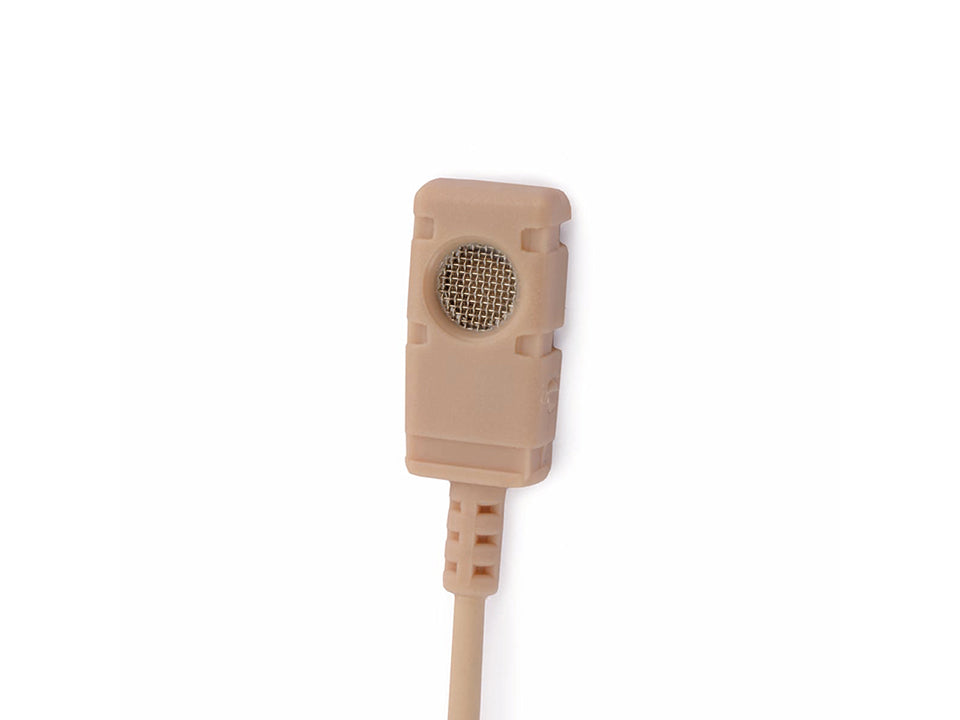

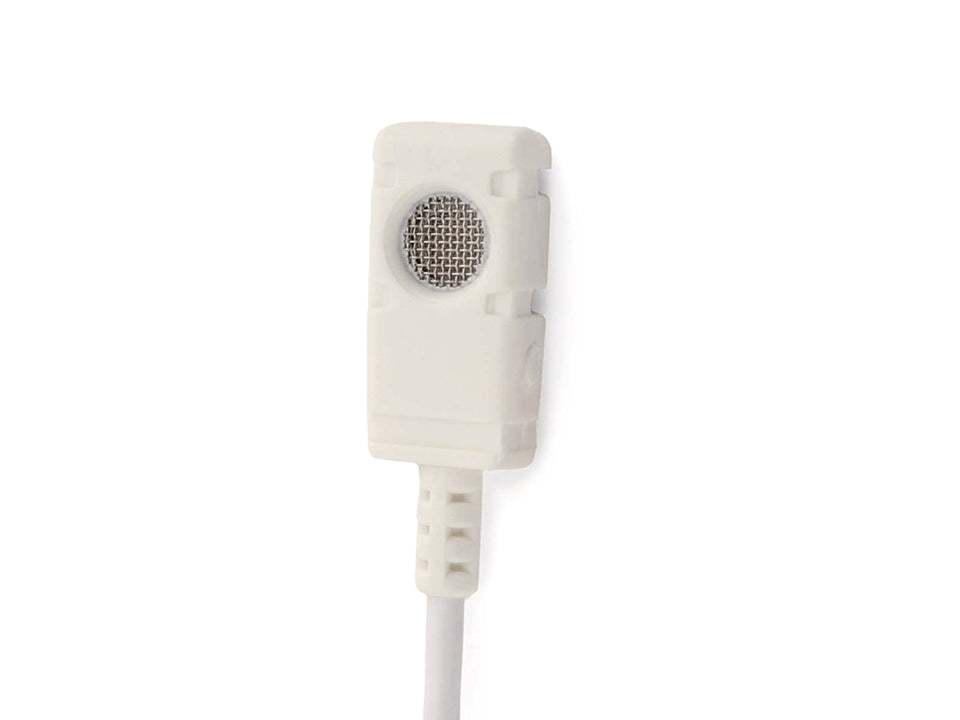

  • Color: black, white, beige (more colors on request)
  • Polar pattern: omnidirectional
  • Slight frequency boost at 10KHz
  • Sturdy
  • Flexible cable
  • Field of application: theater, film, broadcast & live
  • Optional with accessories
  • Important Note:Microphone without plug.
    Choose an additional plug for your setup.

Ready to ship in 5-8 days

Item number: A09129

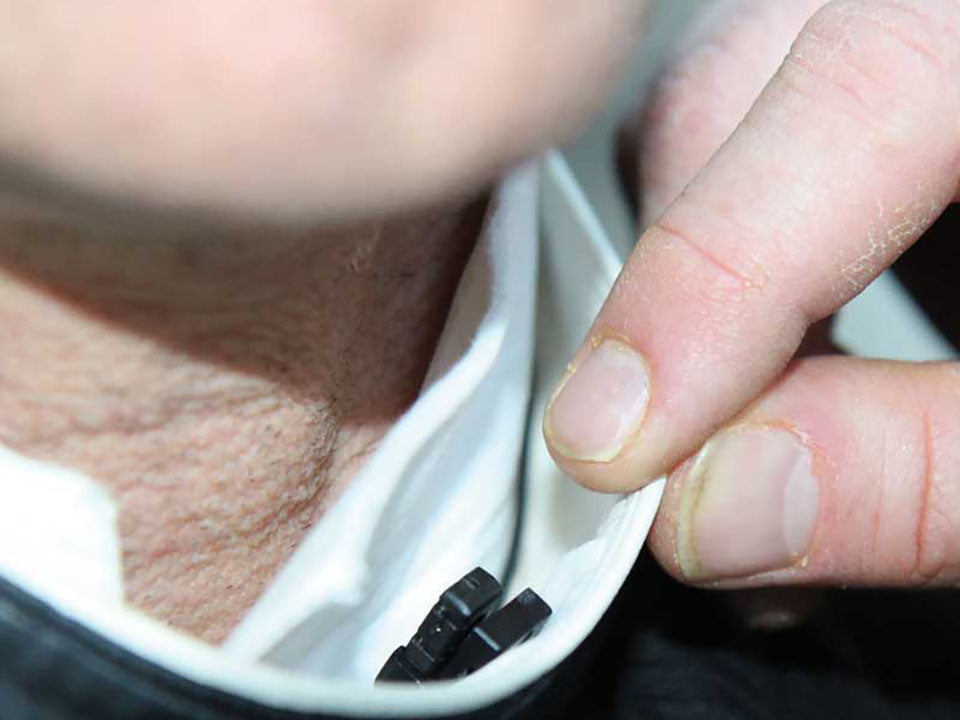

Designed for performing talent in broadcast, theatre and film, the VT506 has a rising frequency response to assure speech intelligibility and under-clothing use. The molding injection adds a high solidity to the VT506. The microphone capsule is RF-protected. Voice Technologies also relies on an especially flexible cable, which has excellent isolation from rubbing noise.

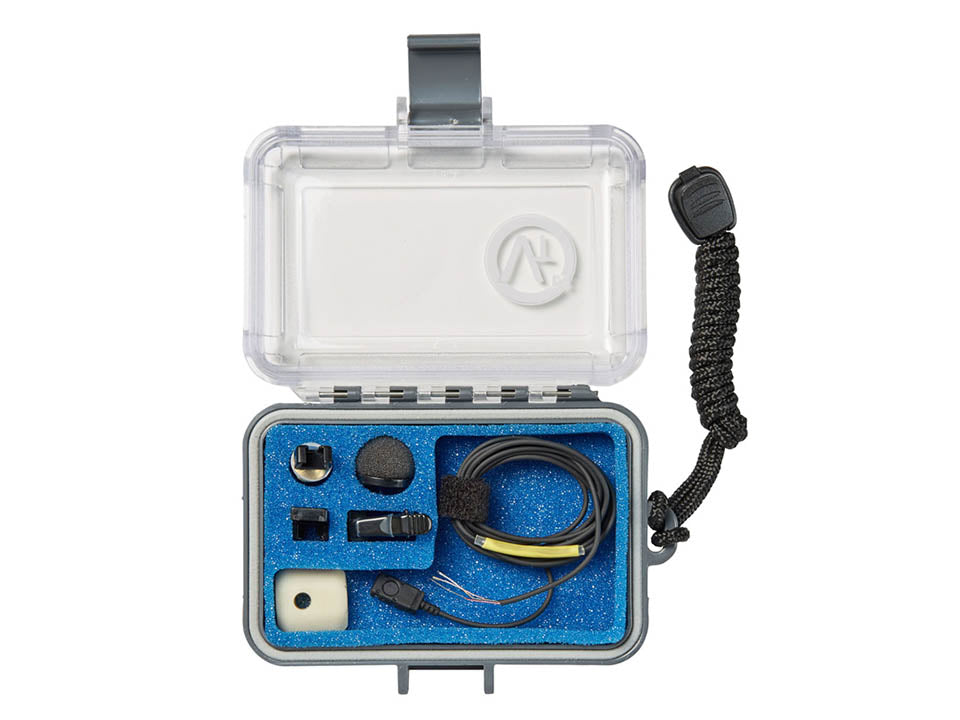

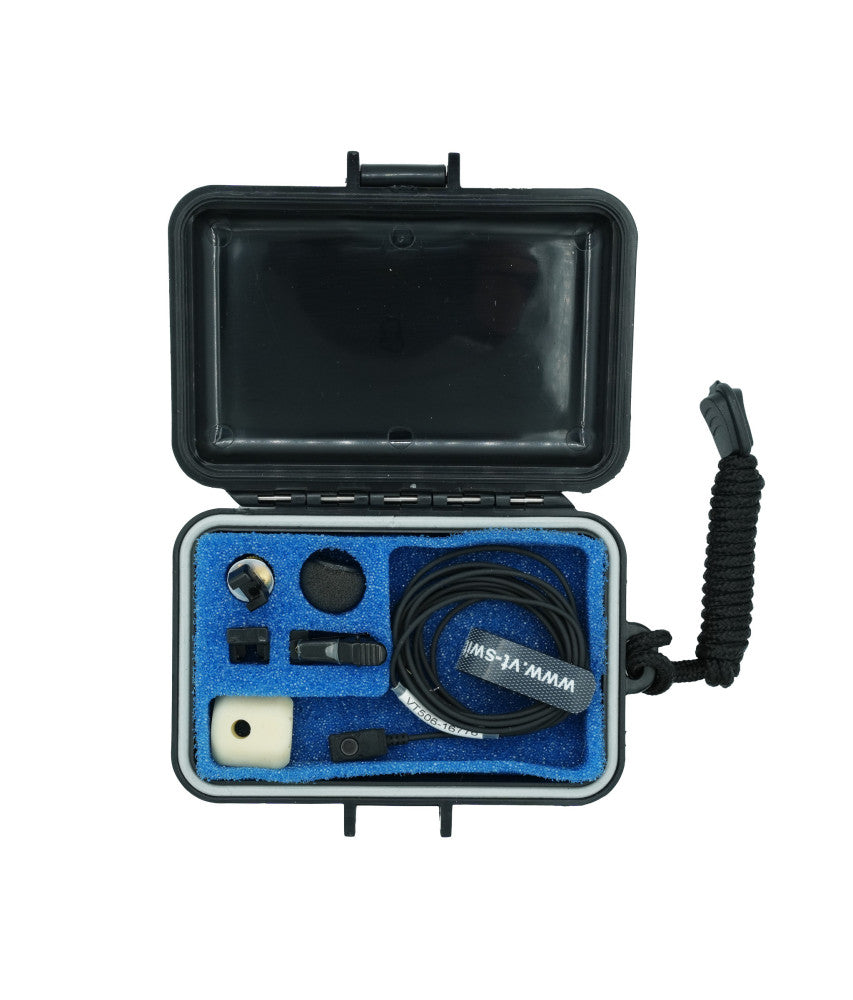

The VT506 comes in the waterproof VTO box with the following accessories:

ACCESSORIES

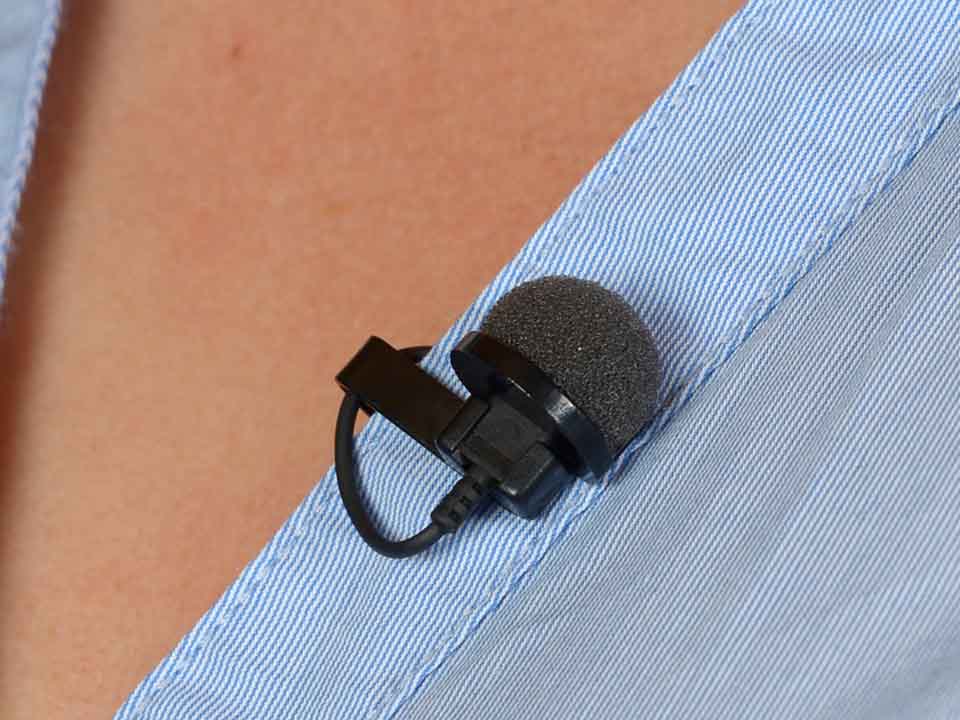

  • Alligator clip, fixation at the microphone head for a better connection
  • Dracula clip, fixation at the microphone head for a better connection

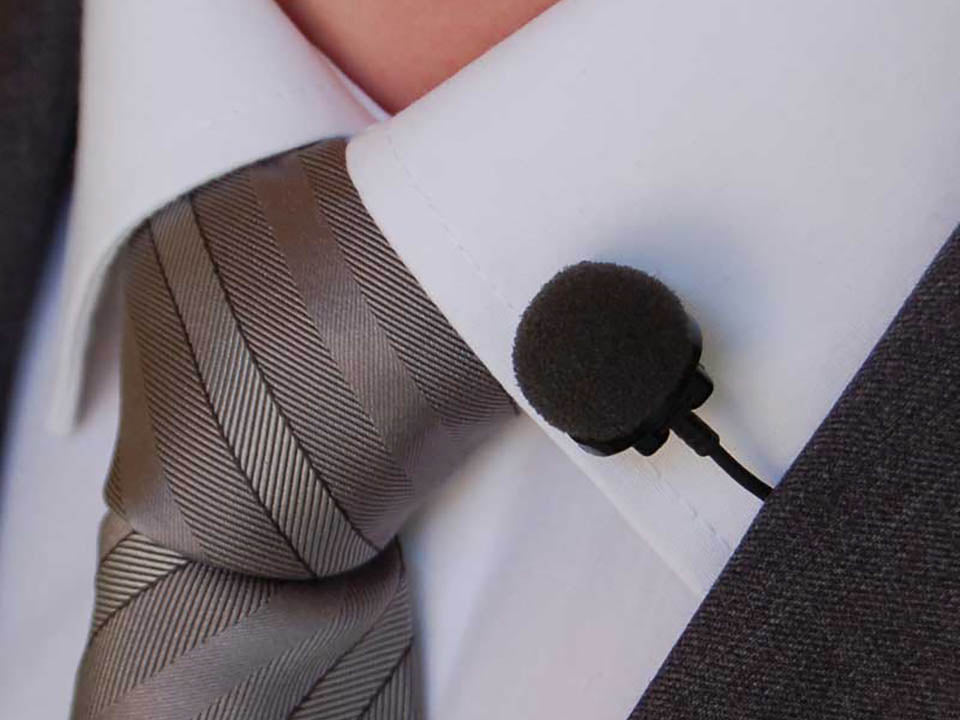

  • Professional windscreen, perfect tool for light wind, for example speech
  • Tie tac clip, fixation at the microphone head for a better connection

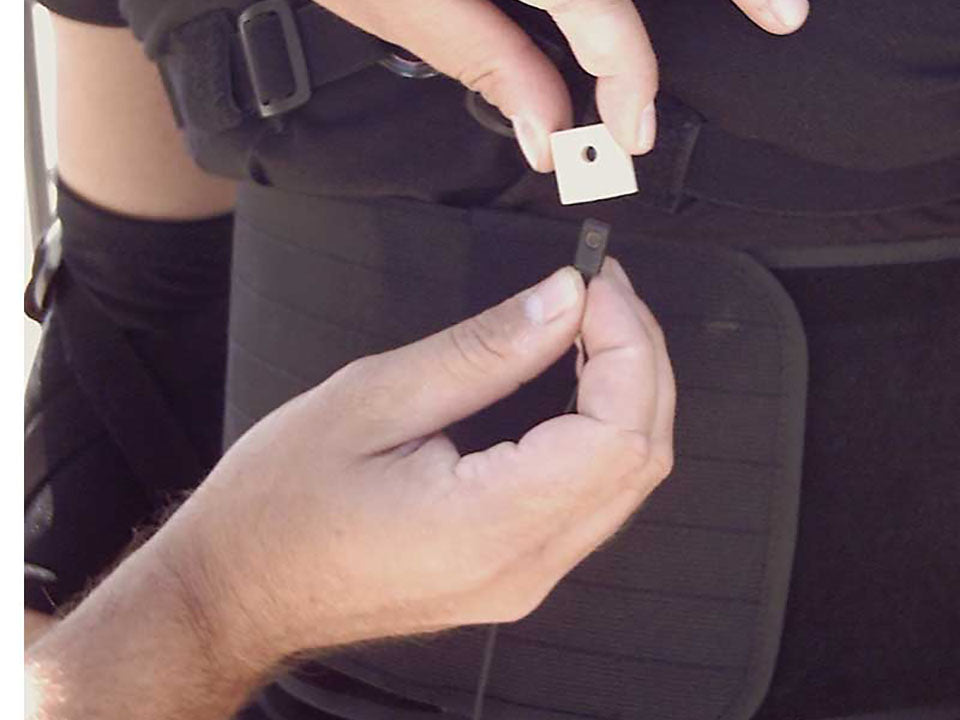

  • RBM2 rubber body mount: perfectly suited to invisibly mount the microphone
  • VTO box, waterproof
  • Cage clip
  • Magnetic cage clip
  • Dual alligator clip
  • Magnetic clip with cord

Important Note: To operate the microphone, you will need a suitable connector for your wireless system. Please remember to add the appropriate connector to your cart so that you can connect and use the microphone right away.



The VT506 is also available as economy version VT506ECO in a transparent small box with an alligator clip and a professional windscreen.

  • Generating Element: Electret Condenser
  • Polar pattern: Omni-Directional

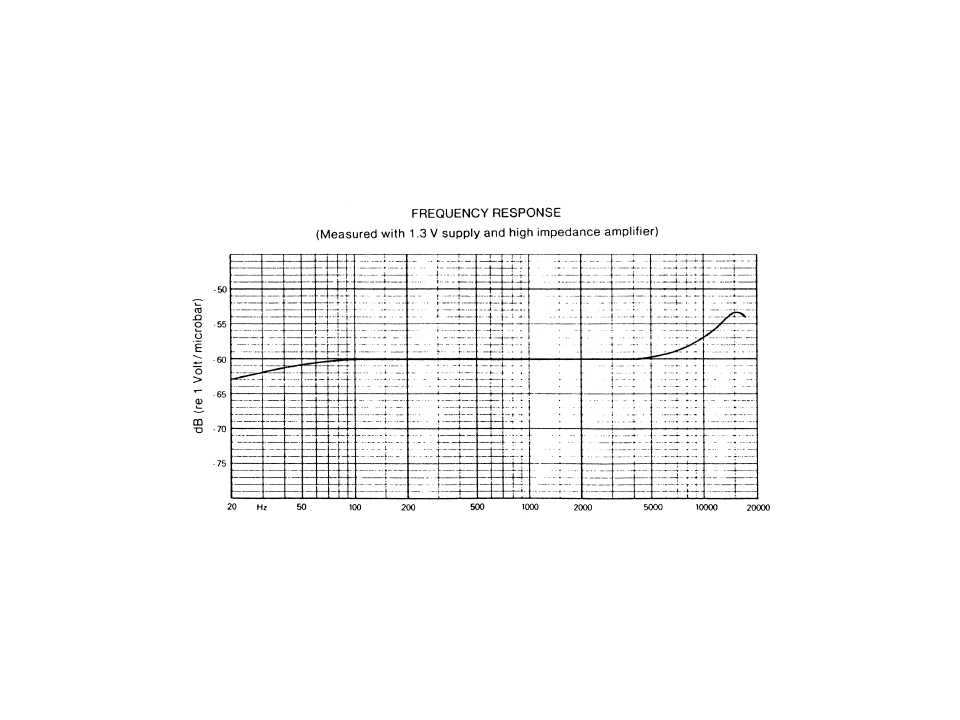

  • Frequency Range: 40Hz - 20kHz
  • Sensitivity: -60dB ±3dB re 1V/microbar (1mV/Pa)
  • Noise level: 26dB “A” weighted
  • Max. Input SPL: 118dB
  • Impedance: 3 kOhm
  • Bias/+VDC: 1.3V (0.9-20V)
  • Colors: black, beige, white (other colors on request)
  • Current drain: 25 μA
  • Microphone Dimensions: 13mm x 7mm x 3.5mm
  • Cable: Length 1.5m (59") Ø 1.5mm
  • Weight: 7g (0.25oz)
  • Wiring configuration (3-wired):
  • Red: +VDC
  • Copper: NF
  • Green: Ground
