Voice Technologies

VT506WATER - Lavalier Microphone

VT506WATER - Lavalier Microphone

Waterproof lavalier microphone

Regular price 336,70 EUR

excl. VAT

Regular price Sale price 336,70 EUR
Sale
Color
Accesories
  • Colors: beige, black (more colors on request)
  • Polar pattern: omnidirectional

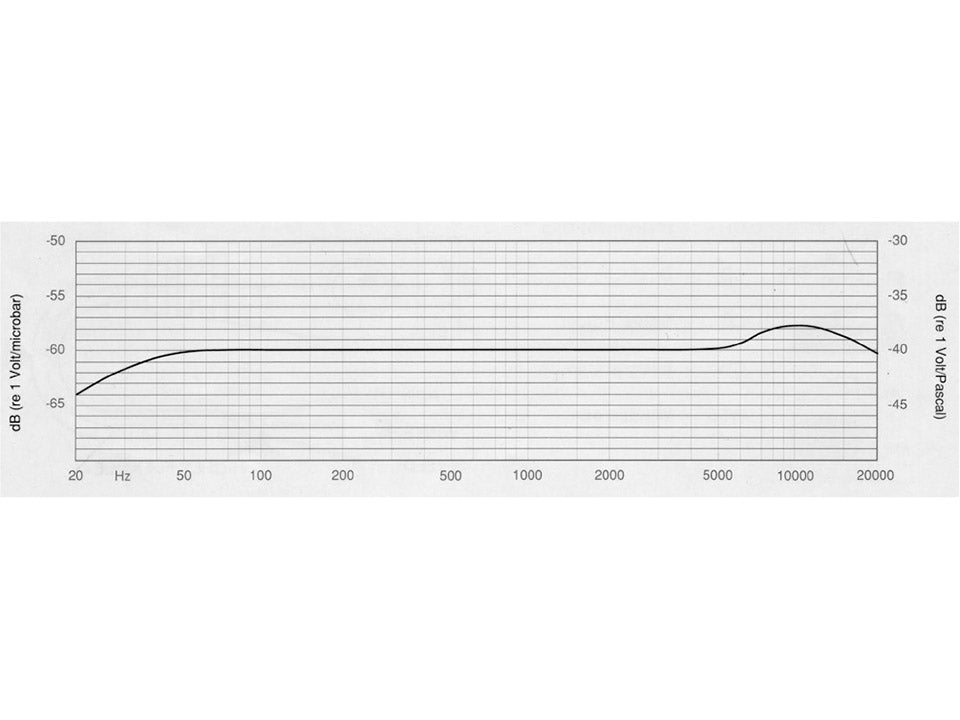

  • Slight frequency boost at 10KHz
  • Flexible cable
  • IPX-7 certified = 1m under water for 30 minutes
  • Field of application: broadcast and live, sporting events
  • Optional with accessories
  • Important Note:Microphone without plug.
    Choose an additional plug for your setup.

Ready to ship in 5-8 days

Item number: A09149

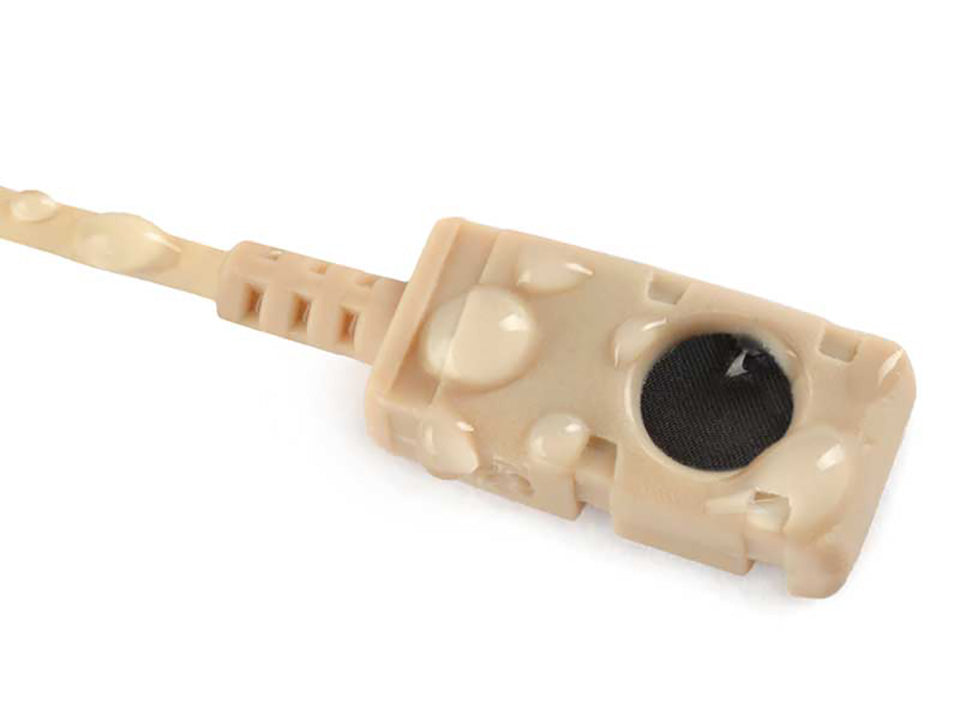

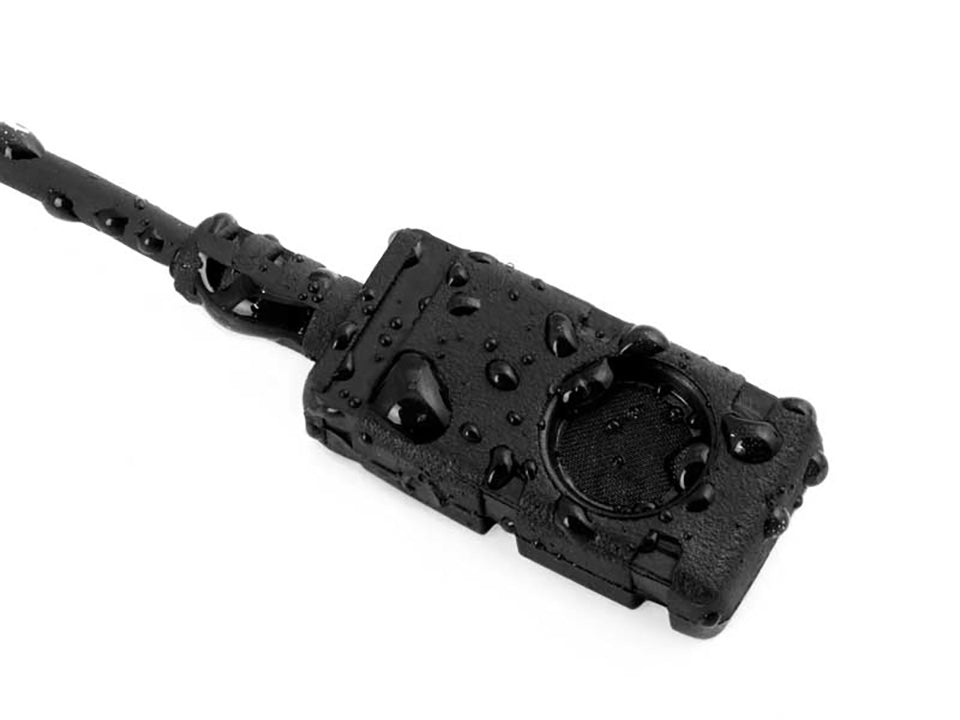

The VT506WATER is the waterproof version (IPX-7 certified) of the VT506 lavalier microphone.

Due to a special molding injection treatment the microphone can be temporarily submerged in water without taking any damage. This enables a special flexible use for broadcast and live applications or at sports events. In addition the microphone is tough and shockproof. The microphone capsule is RF-protected. Voice Technologies also relies on an especially flexible cable, which offers excellent insulation from handling noise.



ACCESSORIES

  • Alligator clip, fixation directly on the microphone head
  • Dracula clip, fixation directly on the microphone head
  • Professional windscreen, perfect for light wind, for example from speech
  • Tie tac clip, fixation directly on the microphone head

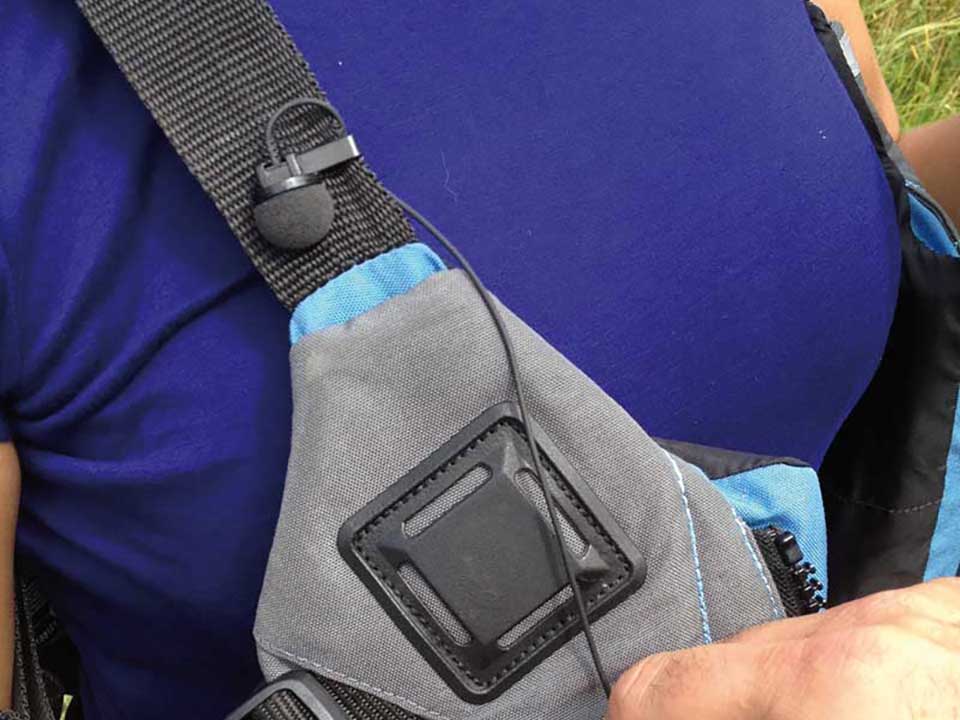

  • RBM2 rubber body mount, perfectly suited for mounting the microphone invisibly
  • VTO box, waterproof
  • Cage clip
  • Magnetic cage clip
  • Dual alligator clip
  • Magnetic clip with cord



Important Note: To operate the microphone, you will need a suitable connector for your wireless system. Please remember to add the appropriate connector to your cart so that you can connect and use the microphone right away.


  • Waterproof: IPX-7 certified
  • Generating Element: Electret Condenser
  • Polar pattern: Omni-Directional
  • Frequency Range: 40Hz - 20kHz
  • Sensitivity: -60dB ±3dB re 1V/microbar (1mV/Pa)
  • Noise level: 26dB “A” weighted
  • Max. Input SPL: 118dB
  • Impedance: 3 kOhm
  • Bias/+VDC: 1.3V (0.9-20V)
  • Colors: black, beige (other colors on request)
  • Current drain: 25 μA
  • Microphone Dimensions: 13mm x 7mm x 3.5mm
  • Cable: Length 1.5m (59"), beige 1.8m (71") Ø 1.5mm
  • Weight: 7g (0.25oz)
  • Wiring configuration (3-wired):
  • Red: +VDC
  • Copper: NF
  • Green: Ground
