Voice Technologies

VT860MKII - Headset - Cardioid

VT860MKII - Headset - Cardioid

As flexible as you.

Regular price 591,60 EUR

excl. VAT

Regular price Sale price 591,60 EUR
Sale
Color
  • Colors: beige, black
  • Polar pattern: cardioid
  • Sturdy
  • Easy to use
  • Adjustable size
  • For broadcast, presentations
  • Earphone 3,5mm jack
  • Important Note: Microphone without plug.
    Choose an additional plug for your setup.

Ready to ship in 5-8 days

Item number: A10092

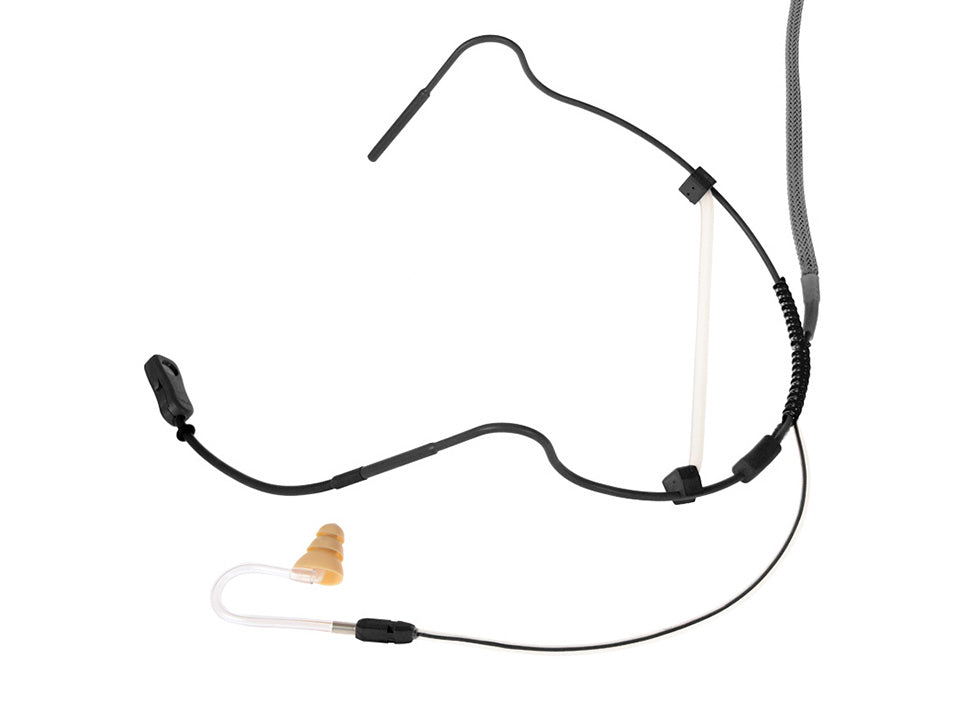

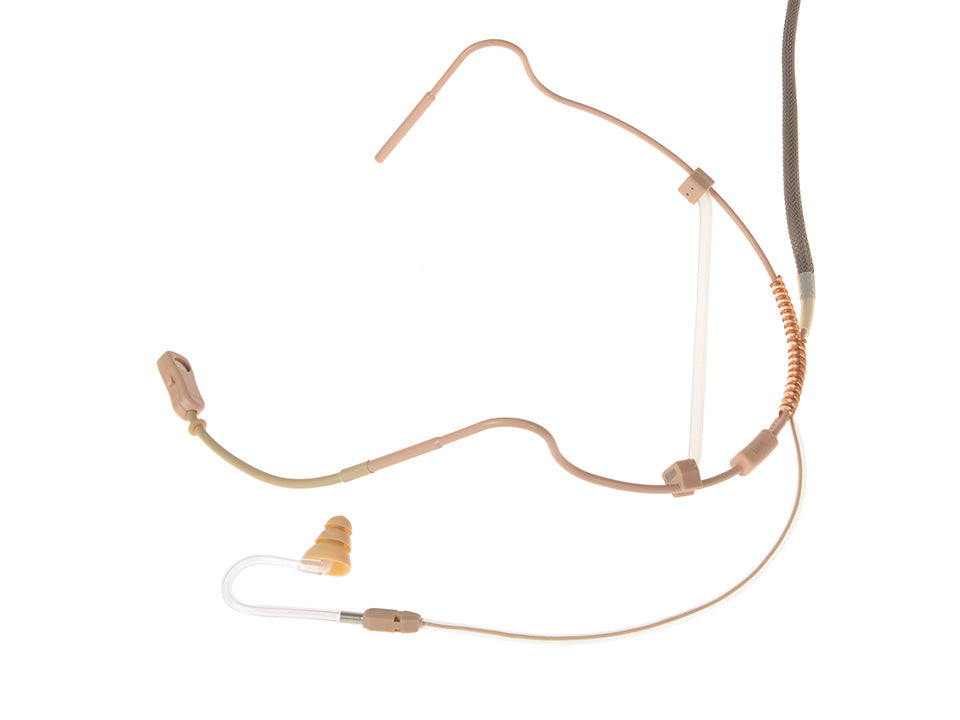

The VT860MKII is a combination of a VT800 headworn with a VT600 earphone. It allows you to communicate with your immediate environment and simoultaneously listen and speak with your headset. Ideal for applications where there is an abundance of ambient sound.

The adjustable, gooseneck style mic boom enables the talent to stay close to monitor speakers and to produce a clear, intelligible voice over the noise. The headband is highly resistant to corrosion and is easy to clean.



ACCESSORIES

  • WS800 windscreen (beige/black), length 28mm, Ø 17mm, hole 5mm
  • Strap (beige/black)
  • Case4



Important Note: To operate the microphone, you will need a suitable connector for your wireless system. Please remember to add the appropriate connector to your cart so that you can connect and use the microphone right away.

  • Generating element: electret microphone
  • Polar pattern: cardioid

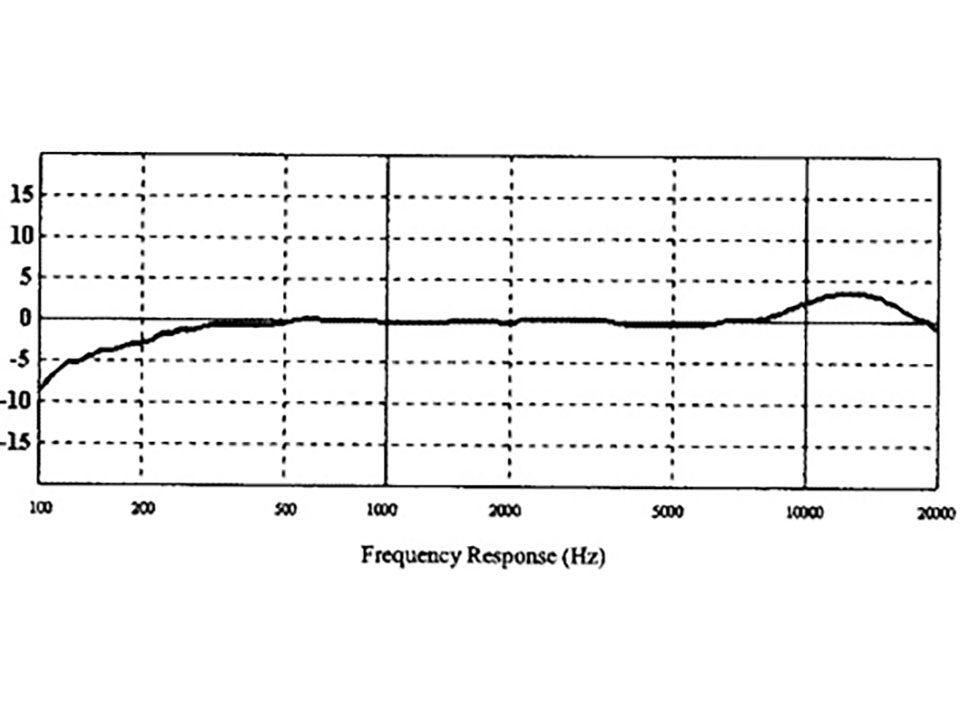

  • Frequency range: 100Hz- 10 kHz
  • Sensitivity: -53dB ±3dB 1V/microbar (2.2mV/Pa)
  • Noise level: 32dB “A” weighted
  • Max. input SPL: 120dB based on 9V supply
  • Impedance: 2.8 to 6.8 kOhms, nominal 4.4 kOhms
  • Dynamic range: 88 dB
  • Signal noise ratio: 62dB @94dB SPL
  • Bias/+VDC: 1.5V to 9V
  • Cable: length 1.5m (59") Ø 2mm
  • Weight: 49g (1.73oz)
  • Color: beige

Earphone:

  • Element: subminiature magnetic receiver
  • Frequency range: 200Hz - 8kHz
  • Impedance: 500 kOhm
  • Sensitivity: 104+/-3dB
  • Distortion: 5% max.

Wiring Configuration (3-wire):

  • Red: +VDC
  • Copper: Ground
  • Blue (Transparent): Signal

Wiring Configuration (2-wire) - Speaker:

  • Red: "+"
  • Green: "-"
