Lectrosonics

ZS-IFBR1B-WITH-CHARGER - IFBR1B IFB-Set with Single Charger

ZS-IFBR1B-WITH-CHARGER - IFBR1B IFB-Set with Single Charger

UHF Multi-Frequency Belt-Pack IFB Receiver

Regular price 922,00 EUR

excl. VAT

Regular price Sale price 922,00 EUR
Sale
Frequency range
Accessories

Ready to ship in 28 days

Item number: A00226

Wireless IFB (interruptible fold back) systems are used for talent cueing and crew communications in broadcast and motion picture production. In other cases, the IFB system is used by directors and other management to monitor program audio during a production. The IFBR1B receiver provides simplicity and flexibility in a package that is intuitive for untrained users to operate. Despite its tiny size, the new IFBR1B receiver offers excellent performance on par with all of Lectrosonics’ IFB products.

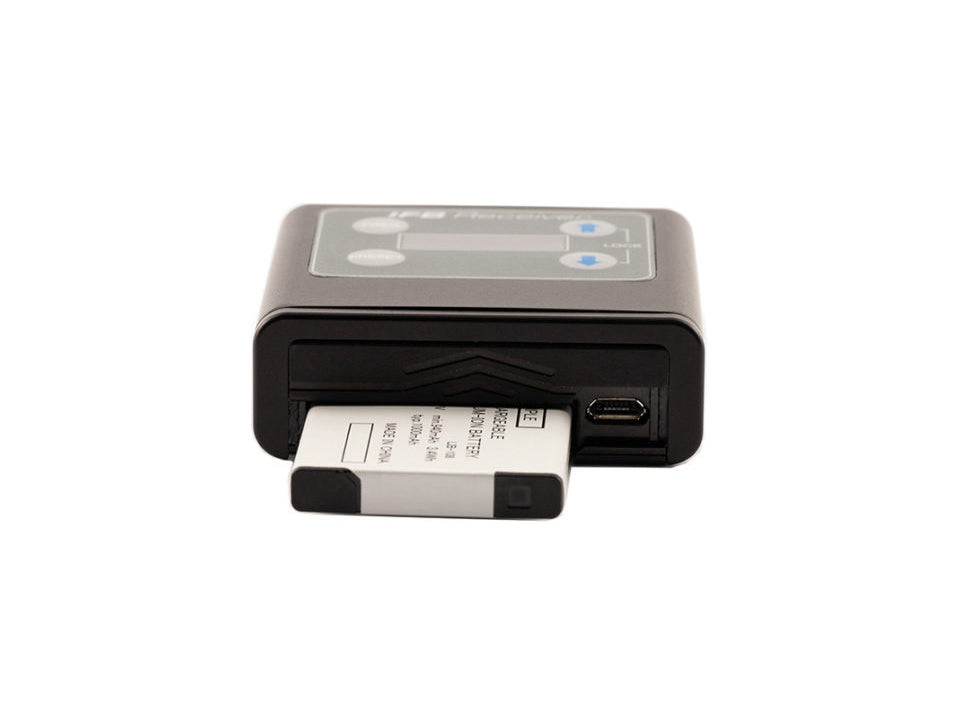

The IFBR1B is housed in a rugged aluminum package. A wire beltclip is included and provides a secure mounting on a wide variety of belts, pockets and fabrics. An optional “clamp style” spring-loaded belt clip is also available: the IFBR1BBCSL. The IFBR1B is powered for over 8 hours by a removeable, rechargeable LB-50 lithium ion battery.

Included Accessories

  • 1 – 3.7 Volt Lithium Ion Battery LB-50 (Part # 40106-1)
  • 1 – Wire belt clip (Part # 27258)
  • 1 – Velcro Strain Relief (Part #VSR1)
  • 1 – Manual
  • optional Charger 40107

NOTE: There is also the IFBR1B available without charger. The IFBR1B can be dock charged without removing the battery with the optional CHSIFBR1B.

 Features

  • Stores up to 10 frequency presets in memory
  • LCD interface for programming and operation
  • High sensitivity for extended operating range indoors or outdoors
  • USB port for firmware updates
  • Compact, rugged machined aluminum housing
  • Attached battery door
  • 8+ hours battery life with removable LB-50 Li-ion
  • Dock chargeable with optional CHSIFBR1B

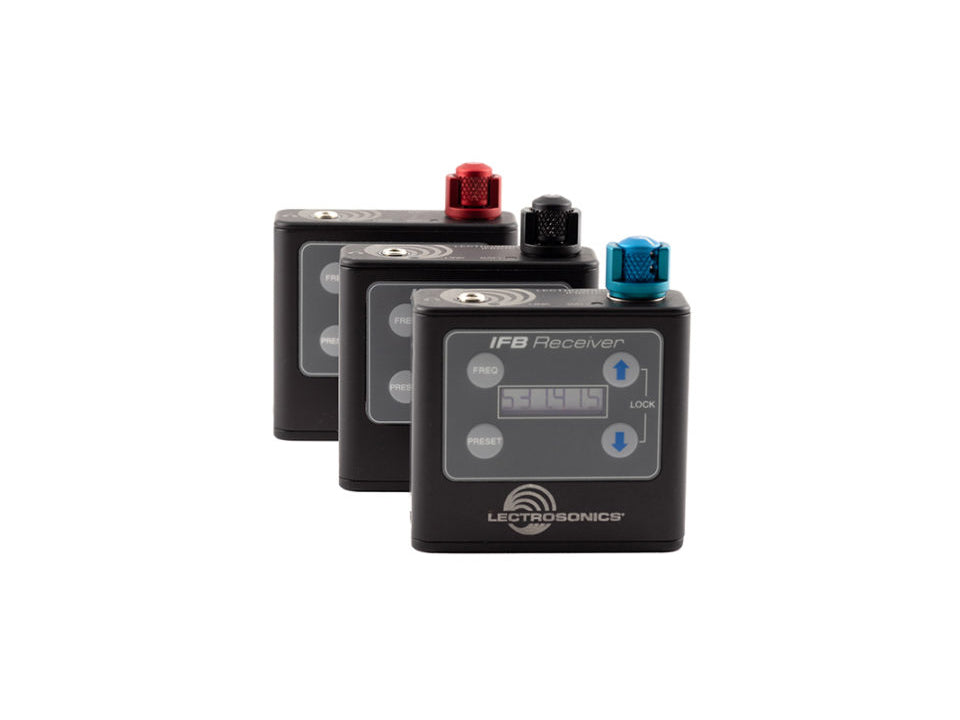

Available frequency bands for the IFBR1B:



Frequency

Block

VHF (red knob)

174-216 MHz

IFBT4-VHF

A1 (blue knob)

470-537 MHz

IFBT4-470, 19, 20

B1 (blue knob)

537-614 MHz

IFBT4-21, 22, 23

C1 (blue knob)

614-692 MHz

IFBT4-24, 25, 26

941 (black knob)

941-960 MHz

IFBT4-944



Optional Accessories

  • DCR5/9AU, Power supply for up to 4 CHSIFBR1B charging docks
  • IFBR1BBCSL, Optional “clamp” type belt clip for IFBR1B, Spring loaded beltclip for IFBR1B Receiver
  • 27258, Wire belt clip for the IFBR1B Receiver
  • 40106-1, Rechargeable LiOn battery, LB-50 type, for IFBR1B, for SSM Micro Transmitter (3.7V 1000 mAH), 6-hour runtime.
  • CHS12LB50, Multi-battery rack charger for LB-50/40106-1 LiOn batteries
  • 40107, Individual battery charger for LB-50/40106-1 LiOn batteries, Battery charger kit for Lectrosonics LB-50 battery; includes charger, EU plug adapter and vehicle auxiliary power cord
  • VSR1, Velcro cable strain relief. One piece mounts to receiver and the cable is held between that piece and a mating cover piece.

  • Frequenzauswahl: 25 kHz oder 100 kHz Schritte wählbar; VHF: 125 kHz
  • Empfindlichkeit: 1 uv (20 dB SINAD)
  • Signal/Rauschabstand: 95 dB A-bewertet
  • Rauschunterdrückung: 90 dB
  • Nachbarkanalunterdrückung: 50 dB, 10 uV bis 100 mV
  • Modulationstiefe: ±20 kHz
  • Störunterdrückung: Größer als 70 dB
  • Betriebstemperaturbereich: -20 bis 45 Grad Celsius
  • Intermodulationsempfindlichkeit IP3: 0 dBm
  • Frequenzbereich: 100 Hz bis 10 kHz, (+/-1 dB)
  • Audio-Ausgabe: 1V RMS in 50 Ohm Minimum
  • Antenne: Kopfhörerkabel
  • Min. Kopfhörer-Impedanz: 16 Ohm
  • Programmierbarer Speicher: 10 Frequenzen können als Voreinstellung gespeichert werden
  • Kontrollen:

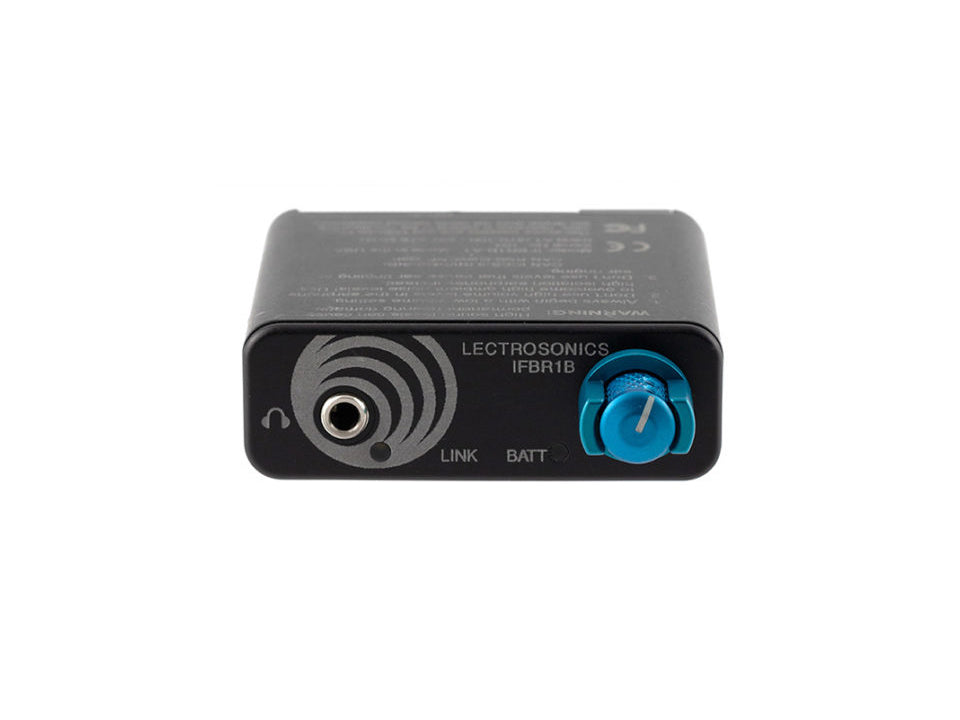

  • · Oberes Bedienfeld: Drehknopf für Audio-Ausgangspegel und zum Einschalten
  • · Vorderseite: Tastatur und LCD-Anzeige für Frequenz-Auswahl und Voreinstellungsfunktion
  • Status-Anzeige: Mehrfarbige LED für Betrieb und Batterie-Status
  • Batterie: LB-50 kompatible Li-Ion 3,6 V 1000 mAH Lectrosonics 40106-1
  • Batterielebensdauer: 8 Stunden pro Ladung mit 40106 Lithium-Ionen-Akku
  • Stromaufnahme: 120 mA
  • Gewicht: 96,4 g (mit Batterie und Drahtgürtelclip)
  • Größe: 71,1 x 70,0 x 20,3 mm
