A20 Monarch antenna

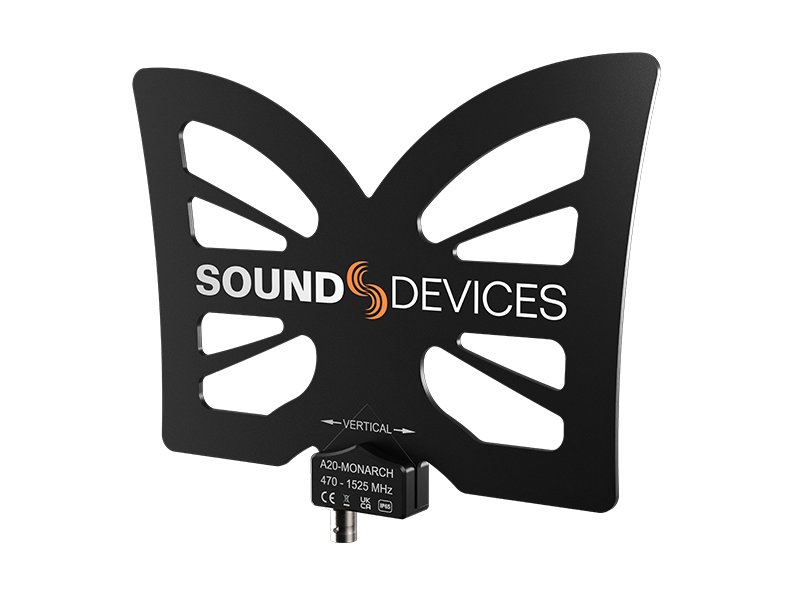

The A20-Monarch is an omnidirectional wideband antenna (470-1525 MHz). It provides uniform coverage and gain across the exceptionally wide SpectraBand tuning range of the Sound Devices Astral series for wireless products. The antenna comes with a multifunction clamp, an articulating arm, and two accessory cables.

The A20-Monarch kit includes:

• 1x A20-Monarch antenna with BNC-F connector and 1/4″-20 female threaded mount

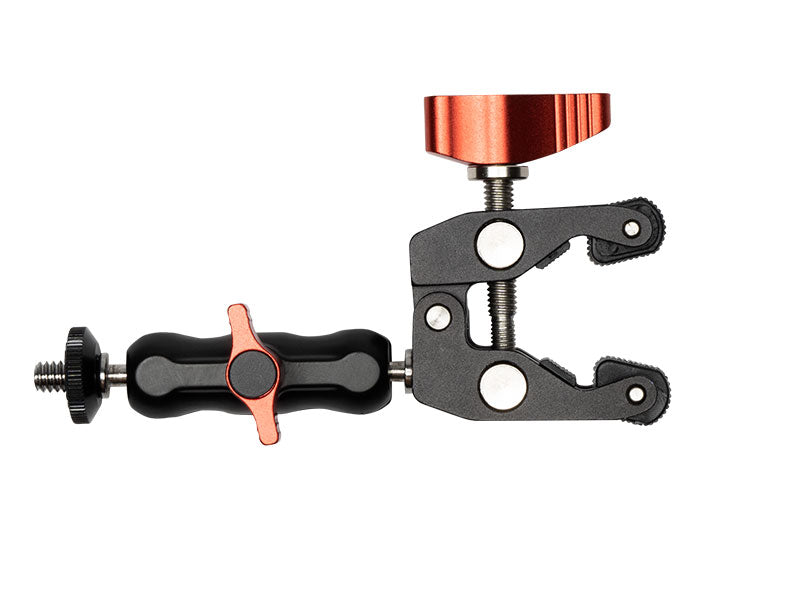

• 1x adjustable clamp and articulating arm with 1/4″-20 male threaded mount
• 1x 75 cm (30 in) BNC-M to BNC-M cable
• 1x 45 cm (18 in) BNC-M to SMA-M cable

Specifications

• Frequency range: 470 MHz – 1600 MHz
• Gain: 2.2 dBi
• Pattern: Omnidirectional
• Return loss: Better than 15 dB across the entire range of 470 – 1600 MHz
• Mounting threads: ¼-20
• Dimensions (H x W x D): 17.0 cm x 21.0 cm x 1.7 cm
• Weight: 0.12 kg (unpackaged)
