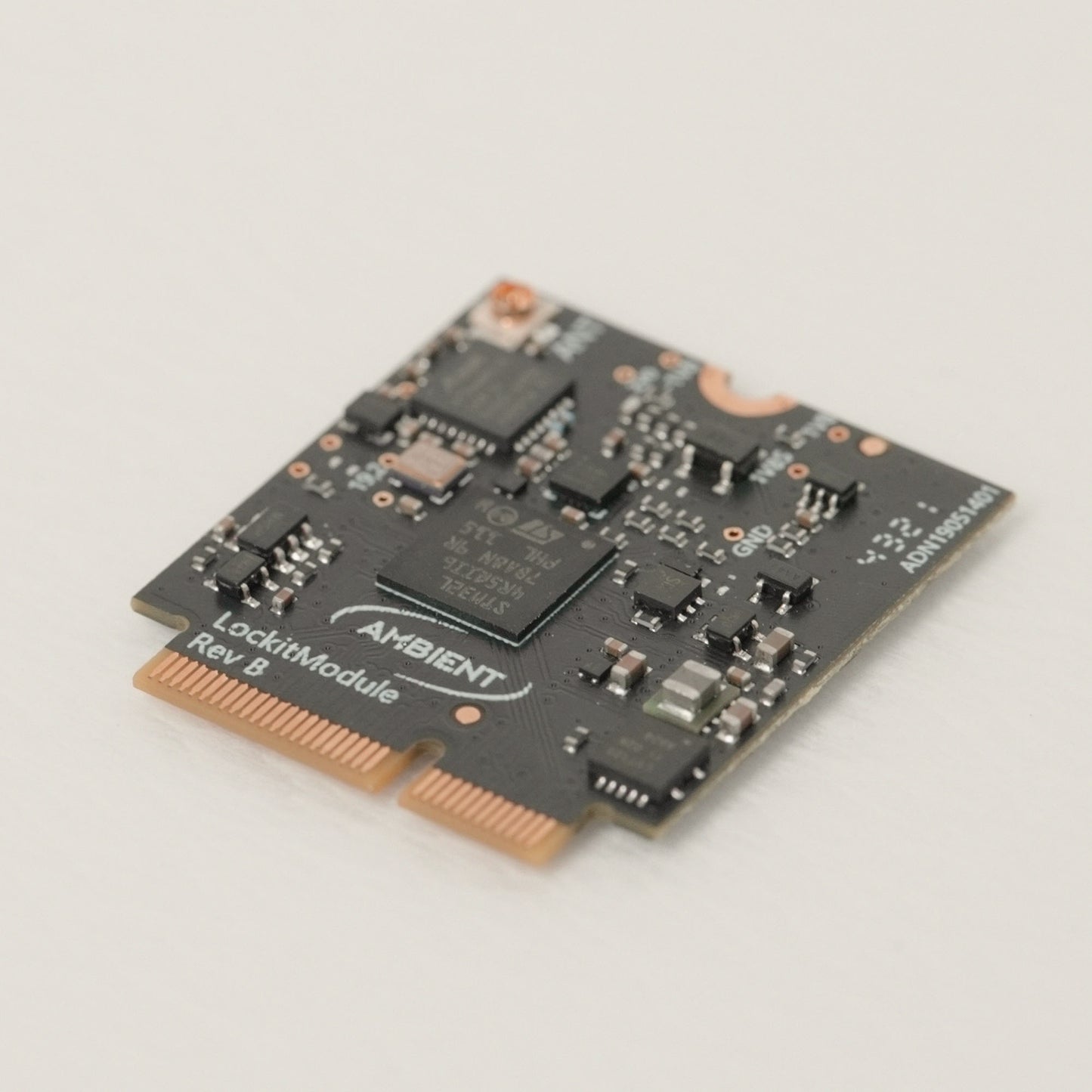

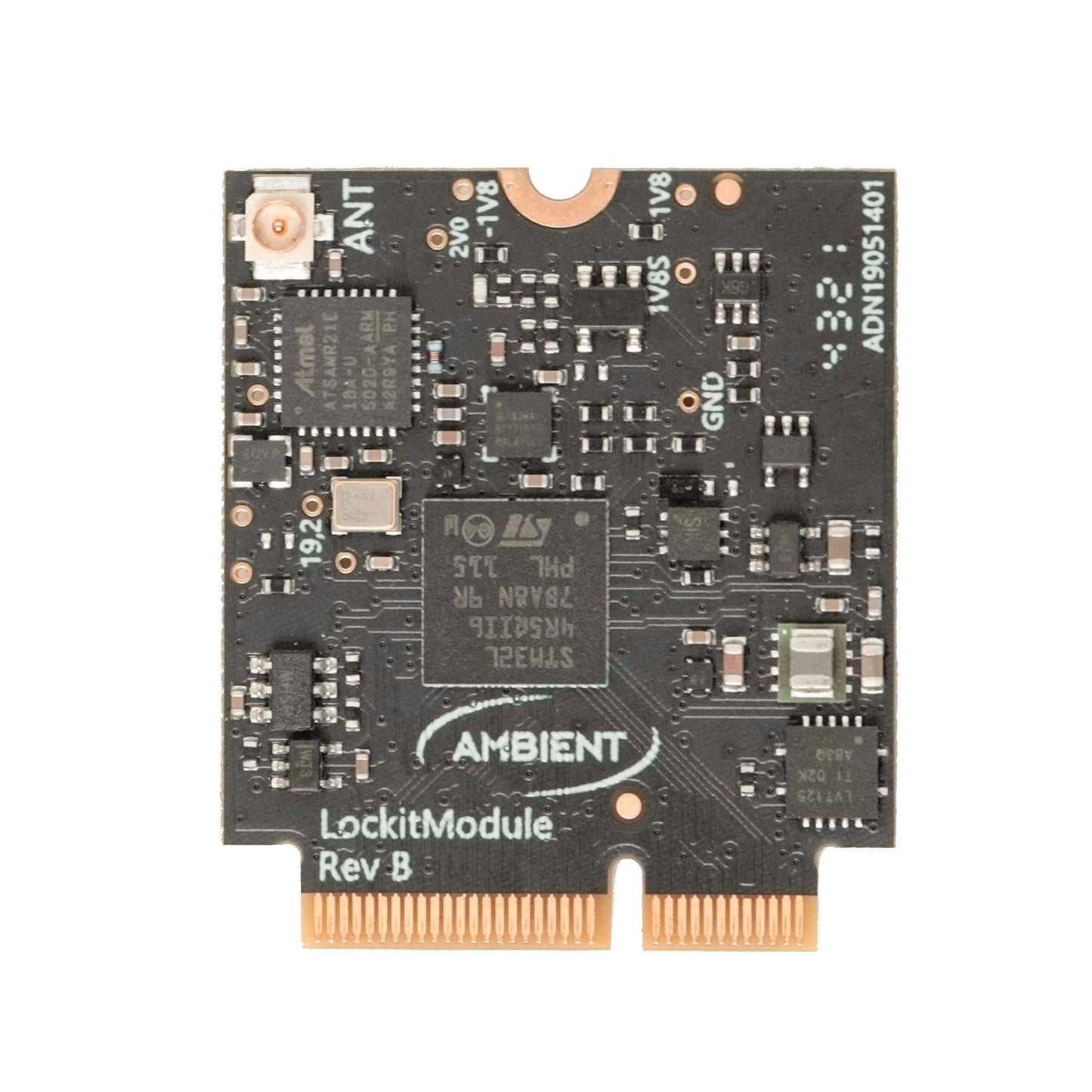

LockitModule (ACN-LM) - Timecode and Sync Plug-In Module

LockitModule (ACN-LM) - Timecode and Sync Plug-In Module

Regular price 305,50 EUR

excl. VAT

Regular price Sale price 305,50 EUR
Sale
  • Highly accurate Timecode and Sync senerator as plug-in module
  • Supports SMPTE Timecode and Genlock / Wordclock Sync
  • Standalone: drift of less than 1 frame a day (~0,1ppm)
  • Zero Drift with active C-Jam Mode
  • Full ACN™ (Ambient Communication Network) compatability
  • API control interfacing over UART and USB
  • Support via ACN™ Partner Programm

Delivery time upon request

Item number: A80614



Make your Hardware speak ACN

Are you a product developer who wants to integrate highly accurate Timecode and Sync? Or do you have an application that would benefit from frame-accurate metadata? Implement the LockitModule including full ACN functionality into your own hardware design.



Adantages and Possiblities

  • No more need for connecting an external Timecode and Sync generator
  • Automated setup and configuration via ACN, UART and RED Command Protocol (RCP)
  • API control interfacing over UART and USB
  • Available Timecode: SMPTE 12M, MIDI Timecode (MTC), RS232 Serial Timecode Callback
  • Available sync signals: 1080p, i/PsF tri-level sync, PPF shutter sync, word clock
  • Plug-in module for easy integration


ACN Partner Program

For comprehensive support and implementation advice, we encourage you to sign up for the ACN Partner Program. Take a look - you're in good company.





  • Automated setup and configuration via ACN, UART and RED Command Protocol (RCP)
  • API control interfacing over UART and USB
  • Available Timecode: SMPTE 12M, MIDI Timecode (MTC), RS232 Serial Timecode Callback
  • Available Sync signals: 1080p, i/PsF tri-level sync, PPF shutter sync, word clock
  • Plug-in module for easy integration
  • m.2 Interface
  • 25mm x 26mm footprint
  • U.FL antenna socket
