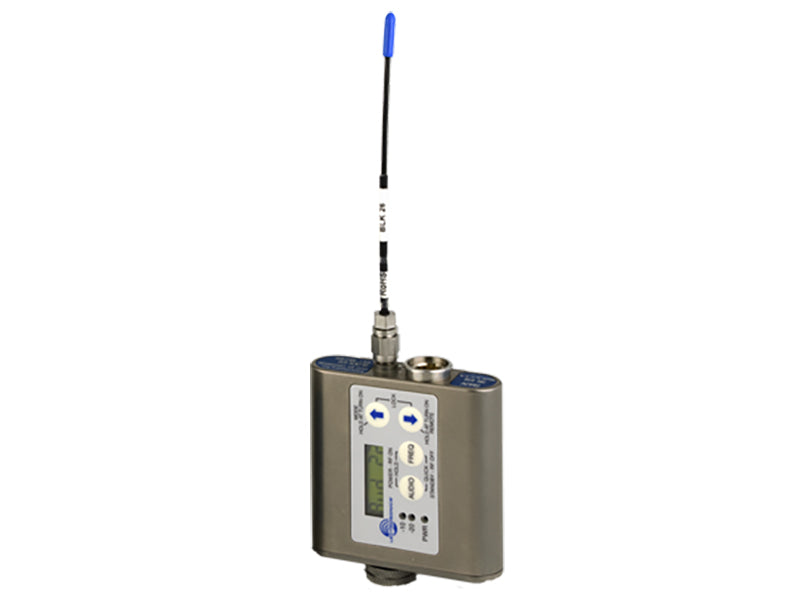

SMDB/E01 - Dual battery bodypack transmitter

Super Mini Dual Battery Belt-Pack Transmitter

• Digital Hybrid Wireless™ Technology* (U.S. Patent #7,225,135)
• Power Output: SMDB: 50mW (E01)
• Membrane switch control panel with LCD display
• Wide input dynamic range
• DSP-based pilot tone signal
• Circulator/Isolator output stage
• Splash-proof, machined aluminum housing
• Corrosion-resistant, super-hard finish

The input section features the unique servo bias input circuitry with a standard TA5M jack for use with electret lavalier mics, dynamic mics, or line-level signals. A DSP-controlled analog audio limiter is employed before the A/D converter. The limiter provides over 30 dB of range for excellent overload protection. With a dual release envelope, the limiter remains acoustically transparent, maintaining low distortion. It recovers quickly from brief transients and slowly from sustained high levels to keep distortion low while preserving short-term dynamics.
