Schoeps

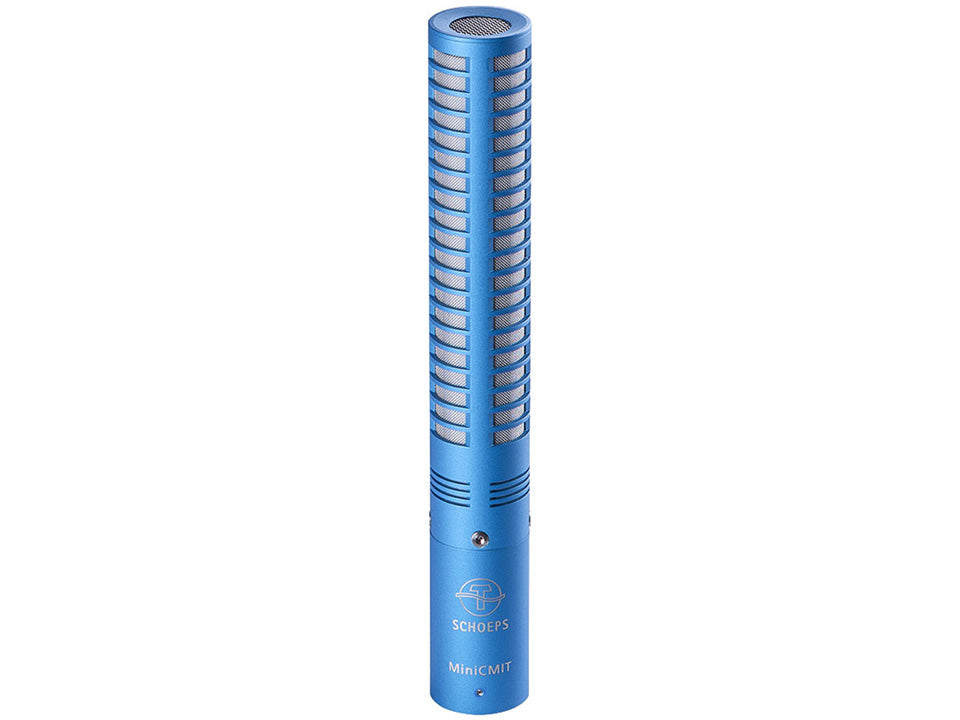

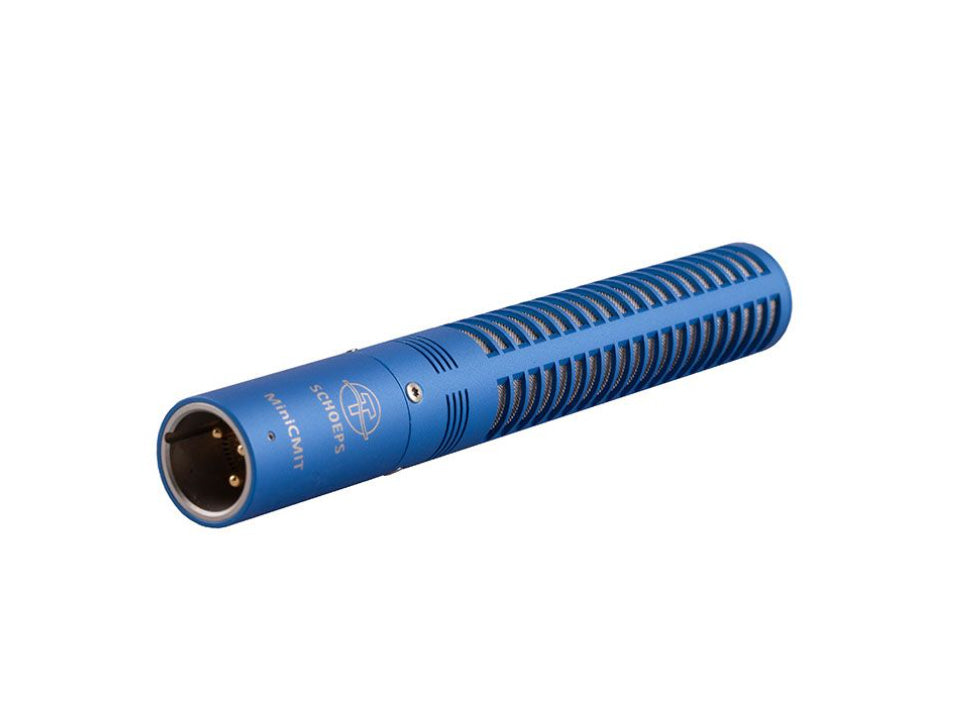

MiniCMIT - Short Directional Microphone

MiniCMIT - Short Directional Microphone

Miniature Shotgun Microphone

1.759,70 EUR

excl. VAT

1.759,70 EUR
Sale
Color
  • Offers the features of a CMIT 5 in a compact design
  • P12 and P48 can be used for power supply
  • Low current consumption
  • Fixed low-cut, 4th order at 70 Hz

Ready to ship in 3-5 days

Item number: A07015

The shotgun microphone MiniCMIT offers the characteristics of a CMIT 5 in more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. Furthermore, the MiniCMIT and CMIT 5 have circuitry with similar characteristics, such that the microphones can be interchanged without altering the sound.

The MiniCMIT is recommended for use with digital transmitters such as the Audio Ltd. A10-TX for two reasons:

The MiniCMIT can use P12, which is more power-efficient.

The MiniCMIT has the latest version of the Schoeps RFI Shield, which has been specifically developed and tested for this type of application.



FEATURES

  • Offers the characteristics of a CMIT 5 in more compact form
  • Phantom Powering with P12 and P48
  • low current draw
  • Fixed 4th order low-cut filter at 70 Hz



VARIANTS & OPTIONS

custom color: anthracite gray, chromagreen, other custom colors on request

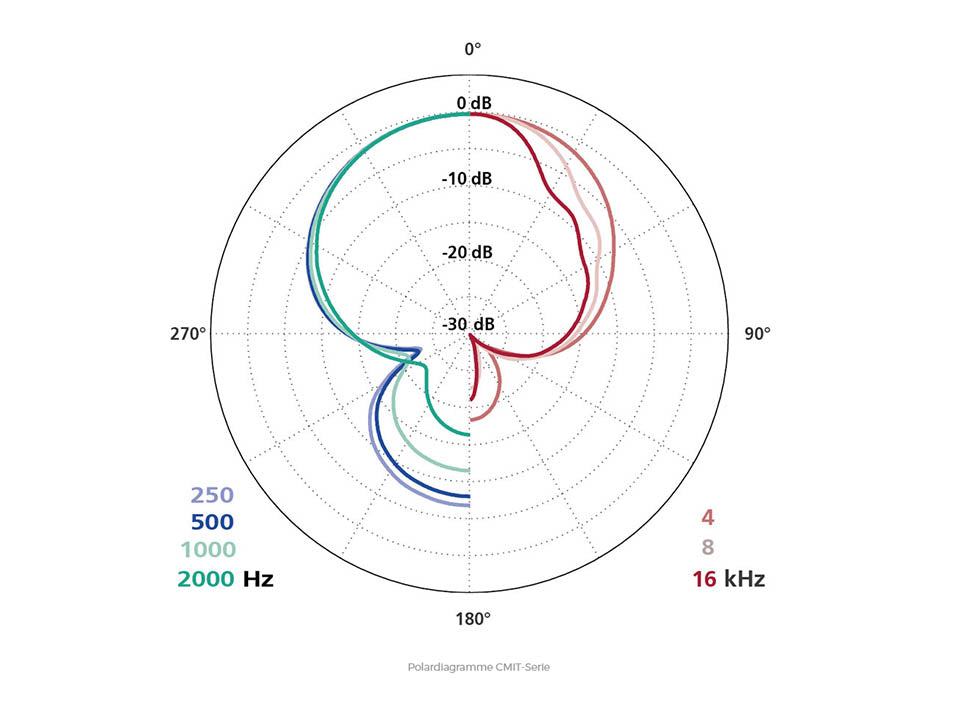

  • Pickup pattern: Supercardioid / lobe-shaped

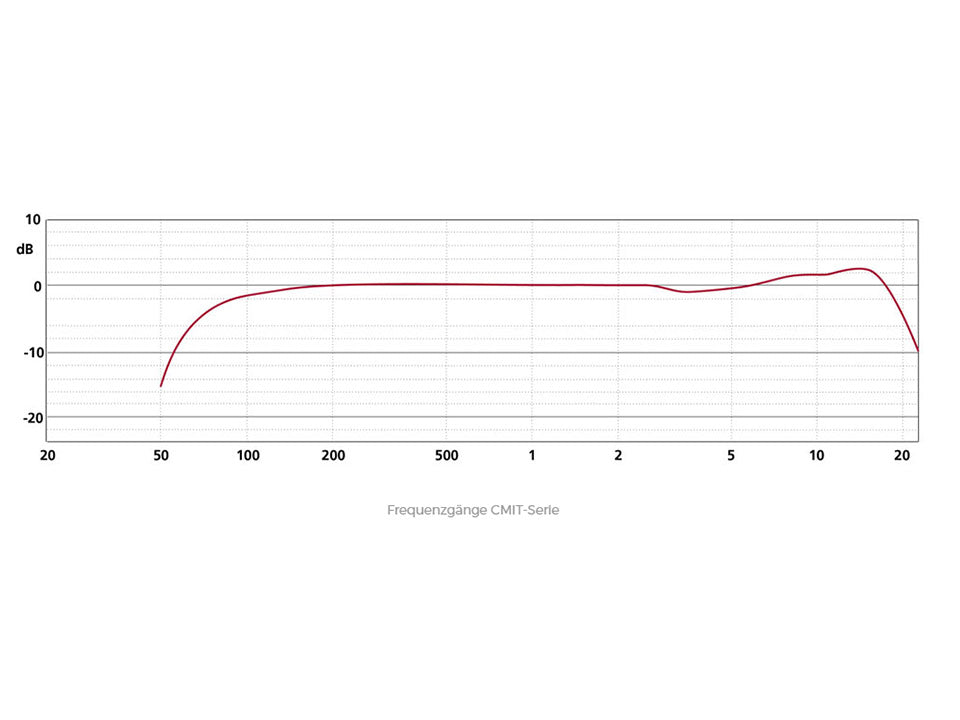

  • Frequency range: 60 Hz - 20 kHz
  • Sensitivity: -35 dB (V/Pa), 17 mV/Pa
  • Equivalent noise level (A-weighted): 14 dB
  • Equivalent noise level (CCIR): 24 dB
  • Signal-to-noise ratio (A-weighted): 80 dB
  • Maximum sound pressure level (THD < 0.5 %): 130 dB-SPL (P48), 115 dB-SPL (P12)
  • Maximum output voltage: 1 V (0 dBV) with 2 kΩ load
  • Low cut filter: fixed, 70 Hz, 24 dB/oct.
  • Minimum recommended load impedance: 2 kΩ
  • Output impedance: 100 Ω
  • Maximum cable length: >100 m
  • SCHOEPS RFI Shield: Yes
  • Powering standard / Valid range: P48 / >24 V, P12 / >11 V
  • Current consumption: 2.3 mA (P48)
  • Common mode rejection ratio (at 1 kHz): > 55 dB
  • Output: XLR-3M, analog, 1 channel
  • Length: 151 mm
  • Diameter: 21 mm
  • Weight: 78 g
  • Surface finish: blue, custom color: anthracite gray, chromagreen
