Sennheiser

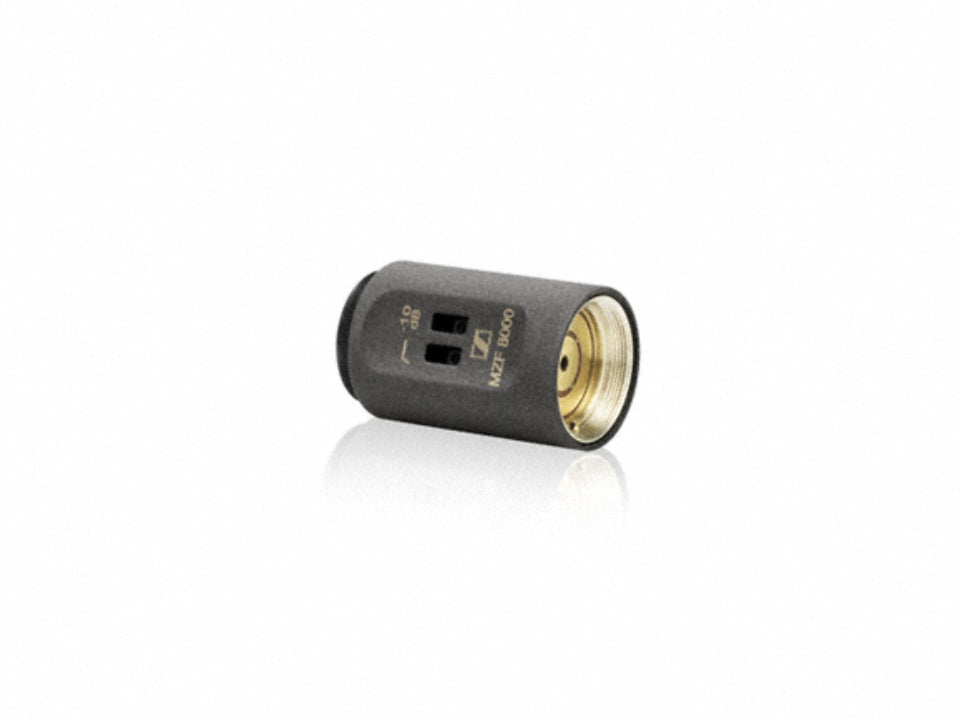

MZF 8000 - Filter Module for MKH 8000

MZF 8000 - Filter Module for MKH 8000

Filter module

392,80 EUR

excl. VAT

392,80 EUR
Sale

Ready to ship in 3-5 days

Item number: A07803

MZF 8000 is a new filter module for the MKH 8000 professional RF condenser microphone series. Especially in the broadcast and film industries, it effectively blocks interference caused by infrasound, such as low-frequency noises caused by wind and handling.



Features

  • Switchable roll-off filter (-3 dB at 160 Hz)
  • Fixed low-cut filter (-3 dB at 16 Hz)
  • Suppresses infrasound especially well
  • Extremely low inherent noise - complex acoustic details are preserved
  • High-quality -10 dB pad protects against overdriving
  • Fully floating balanced output allows for non-critical connection technology with minimal distortion
  • Extremely compact design
  • Module can be used with remote accessory

  • Dimensions: Ø 19 x 29 mm
  • Weight: 26 g
  • Attenuation: -10 dB (switchable)
  • Nominal impedance: 50 Ohm
  • Phantom powering: 44 to 52 V
  • Equivalent noise level: increase at 0 dB: 1 dB(A), at -10 dB: 4 dB (A)
  • Input voltage range: at 0 dB: max. 14 dBV, at -10 dB: max. 9 dBV
  • Output voltage: at 0 dB: max. 14 dBV, at -10dB: max. - 1 dBV
  • Low-cut filter: -3 dB bei 160 Hz (switchable)
