NDTCH "Nomad Touch" - Controller

Design

Nomad Touch is a software GUI that expands the functionality and features of your Nomad 12. It was originally designed to be run on a Windows based Touch Screen tablet in your sound back, but it can run on any computer with a Windows based operating system.

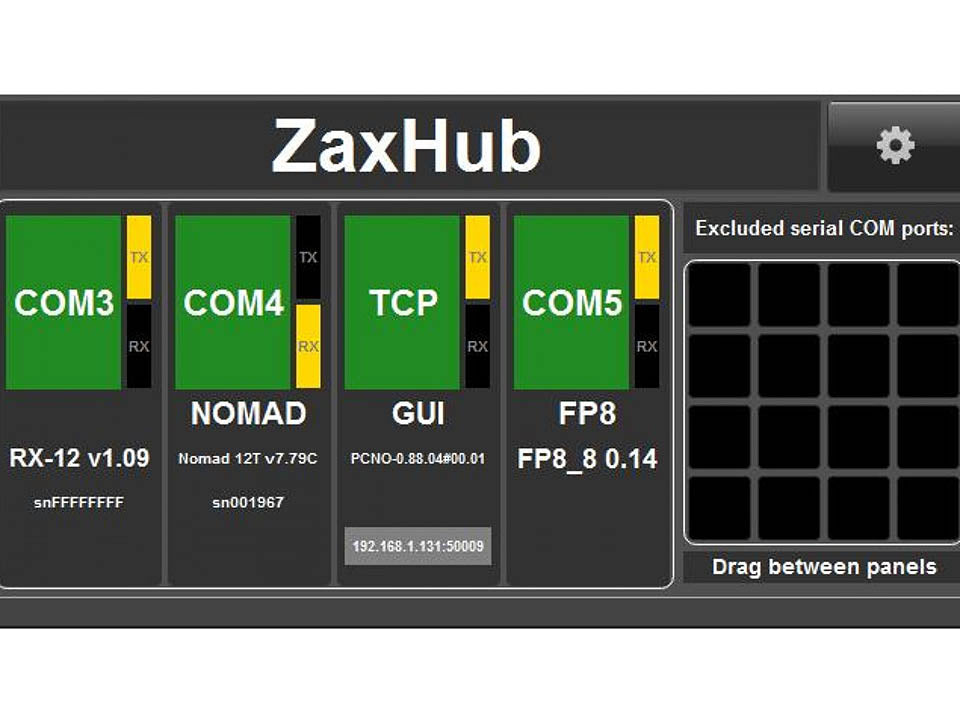

ZaxHub integration allows you to use your Nomad Touch along with your FP-8 or Mix-8 and RX-12.

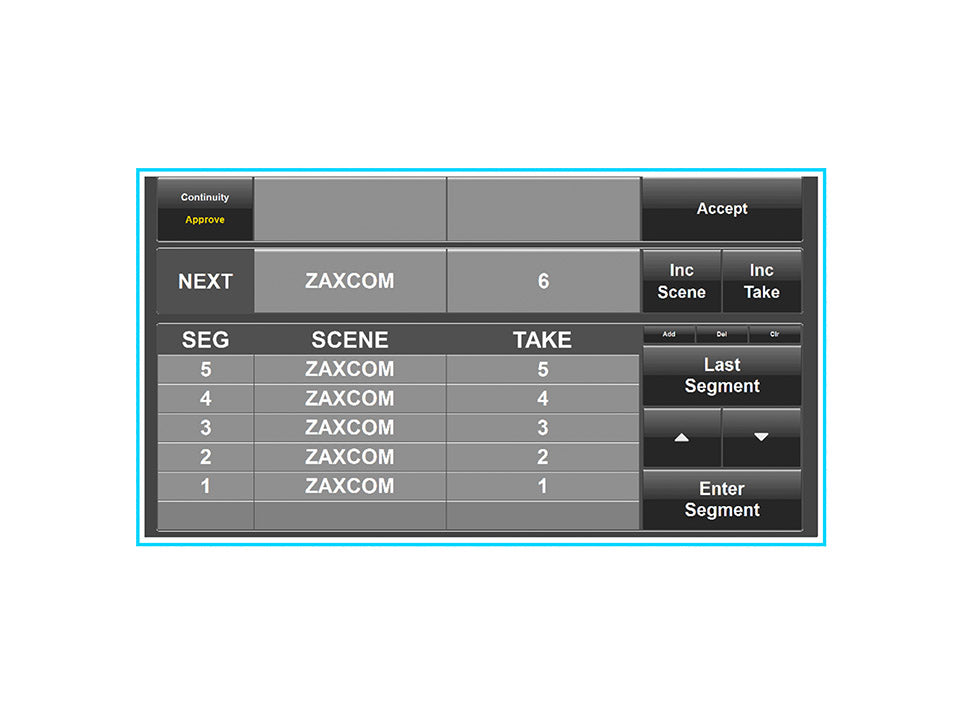

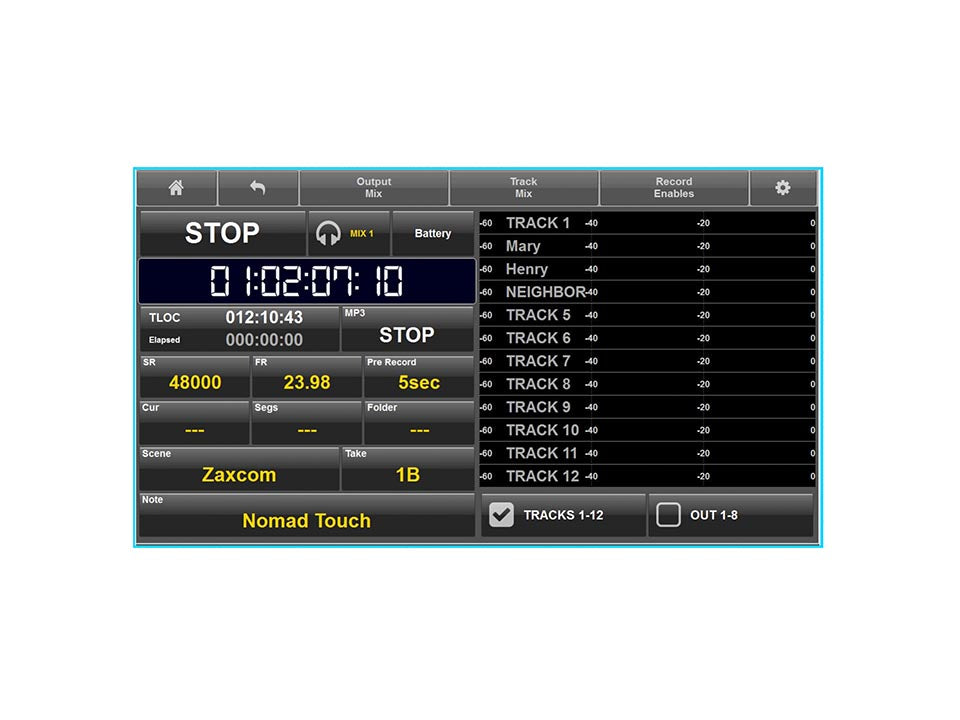

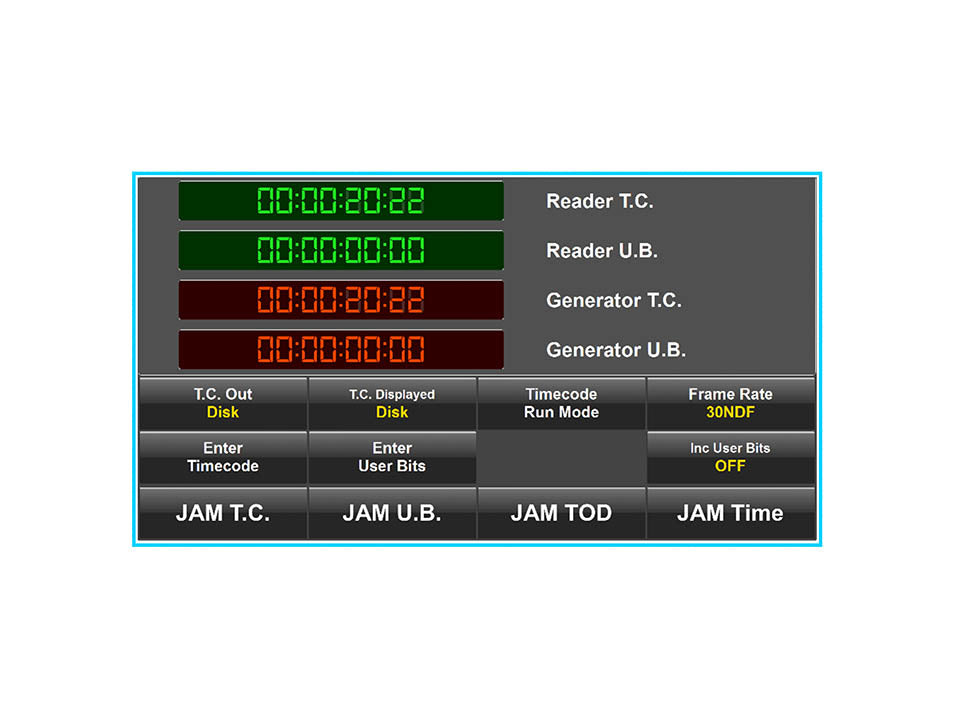

Nomad Touch software makes accessing the power of your Nomad incredibly simple. It gives you simple access to menus and matrices, cross points and metadata entry, expanded metering views, a much larger visual timecode slate with metadata, a full-function playback controller for simultaneous audio playback while recording, and MovieSlate® Wi-Fi interface for direct sharing of metadata.

MP3 Delivery

The Touch acts as an MP3 transcription recorder with timecode and metadata. It writes the files directly to a microSD card inserted into your tablet or computer for instant client delivery or you can transfer directly via Touch connected to Wi-Fi in an e-mail or FTP.

Connection

The Nomad Touch software package includes a software unlock key for your Nomad, interface cables, and software for any tablet or computer that’s running Windows 8.1 or higher.

Considerations when choosing your device

• We recommend a tablet with 2 x USB ports, or a USB port and a charging port for simultaneous operation and charging
• SD or MicroSD slot for immediate transfer of MP3 audio files to a physical card to hand off
• Audio input jack for recording MP3 files, you’ll need this to input the audio Audio output
• Jack to use the Nomad Touch playback feature WiFi capable / Internet ready to upload MP3 files

The ZaxHub requires the use of interconnecting cables between devices and any off-the-shelf USB hub, please see the user manual for details. Please note, in order to run Touch, you must be running Nomad software v7.81 or higher.
