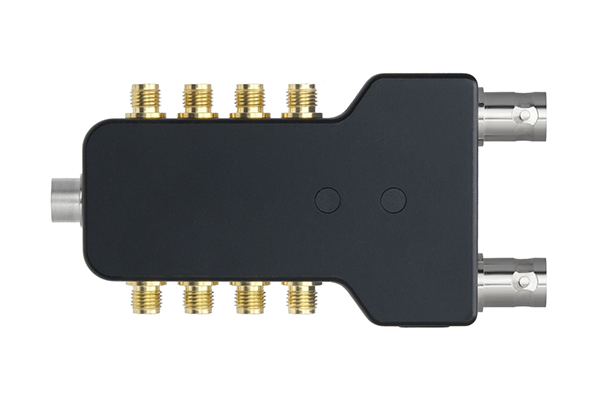

RF OCTOPUS – RF Splitter, Combiner & Diagnostic Tool

The RF OCTOPUS is the smallest and most versatile RF tool of its kind – a true all-rounder for sound professionals. Whether used as a splitter (1:8 or 2:8), combiner, or diagnostic device, this compact powerhouse offers maximum flexibility and control over your wireless audio setup.

The RF OCTOPUS is a toolbox and control center in one – perfect for audio pros who want to manage and monitor their entire RF environment with a single device.

Highlights

• Flexible configurations: Splitter 1:8 / 2:8, combiner-splitter
  ① Splitter 2:8 (Diversity: 1 input → 4 outputs)
  ② Splitter 1:8 (1 input → 8 outputs)
  ③ Combiner-Splitter 1:8 (SUM of two inputs → 8 outputs)

• Selectable low-pass filters (700 / 960 / 1260 MHz) – ideal for worldwide use
• Top-tier performance: OIP3 > 40 dBm, RF amp noise figure < 0.8 dB, isolation between outputs > 21 dB (typical)
• User-selectable gain: Adjust overall gain from -10 to +10 dB in precise 1-dB steps
• Built-in cable attenuation measurement – quickly and reliably test cable condition
• Transmitter RF power measurement* – fast and reliable system checks

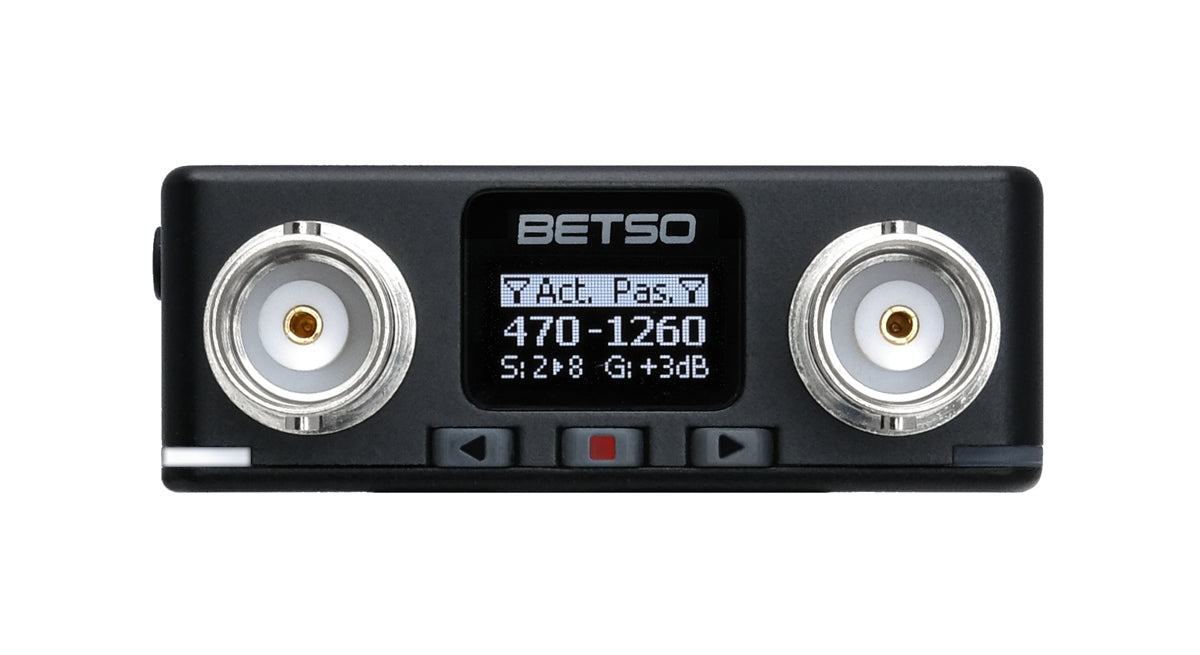

• Bright OLED display + integrated LEDs – easy to read in any light
• Individually switchable antenna power with protection and failure indication
• USB-C for firmware updates
• Convenient power options: Standard 4-pin HRS connector (6–18V DC)
• Durable CNC-milled aluminum alloy chassis, dust- and water-resistant

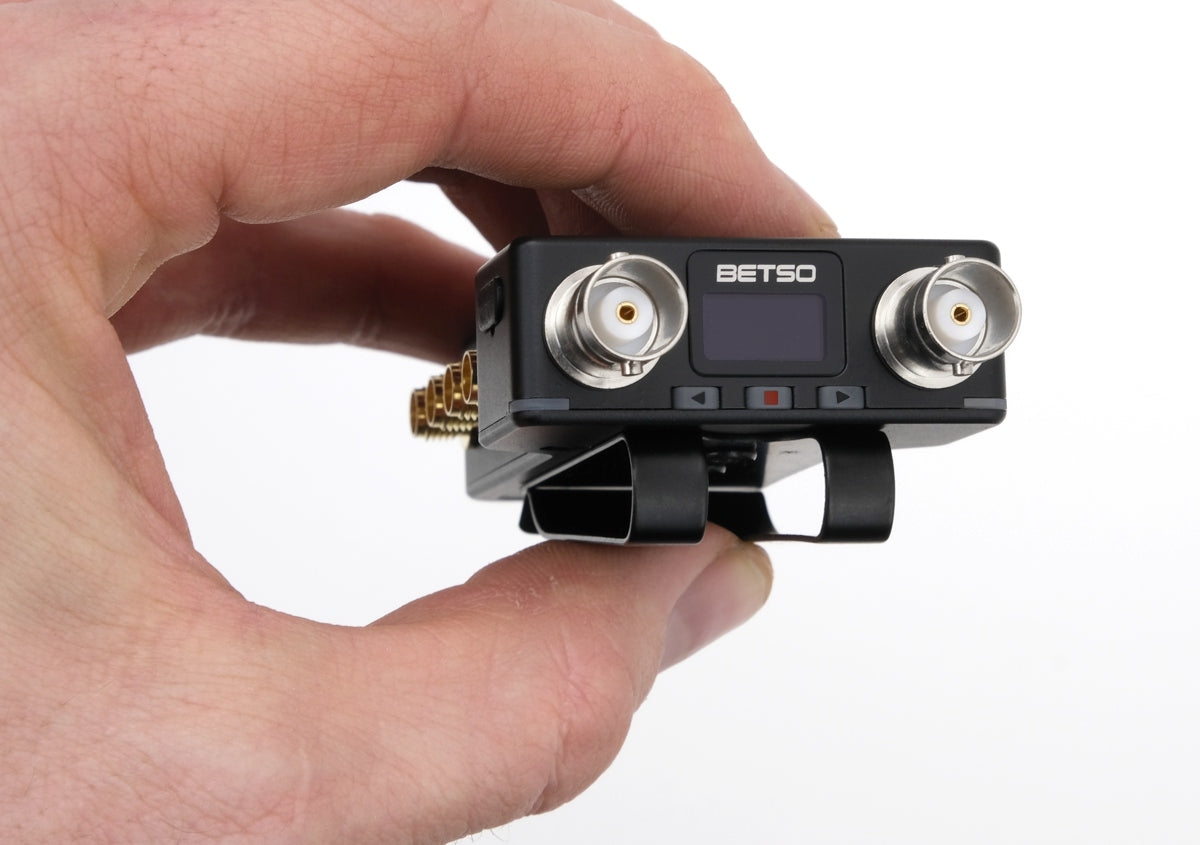

• Removable belt clip, mountable on top or bottom
• Compact and lightweight design: Measures 75 x 48 x 17.8 mm (without belt clip) and weighs only 110 g (with clip)
