Sanken
CMS-50 - MS Stereo Shotgun Microphone
CMS-50 - MS Stereo Shotgun Microphone
excl. VAT
Ready to ship in 3-5 days
Item number: A06797
Couldn't load pickup availability

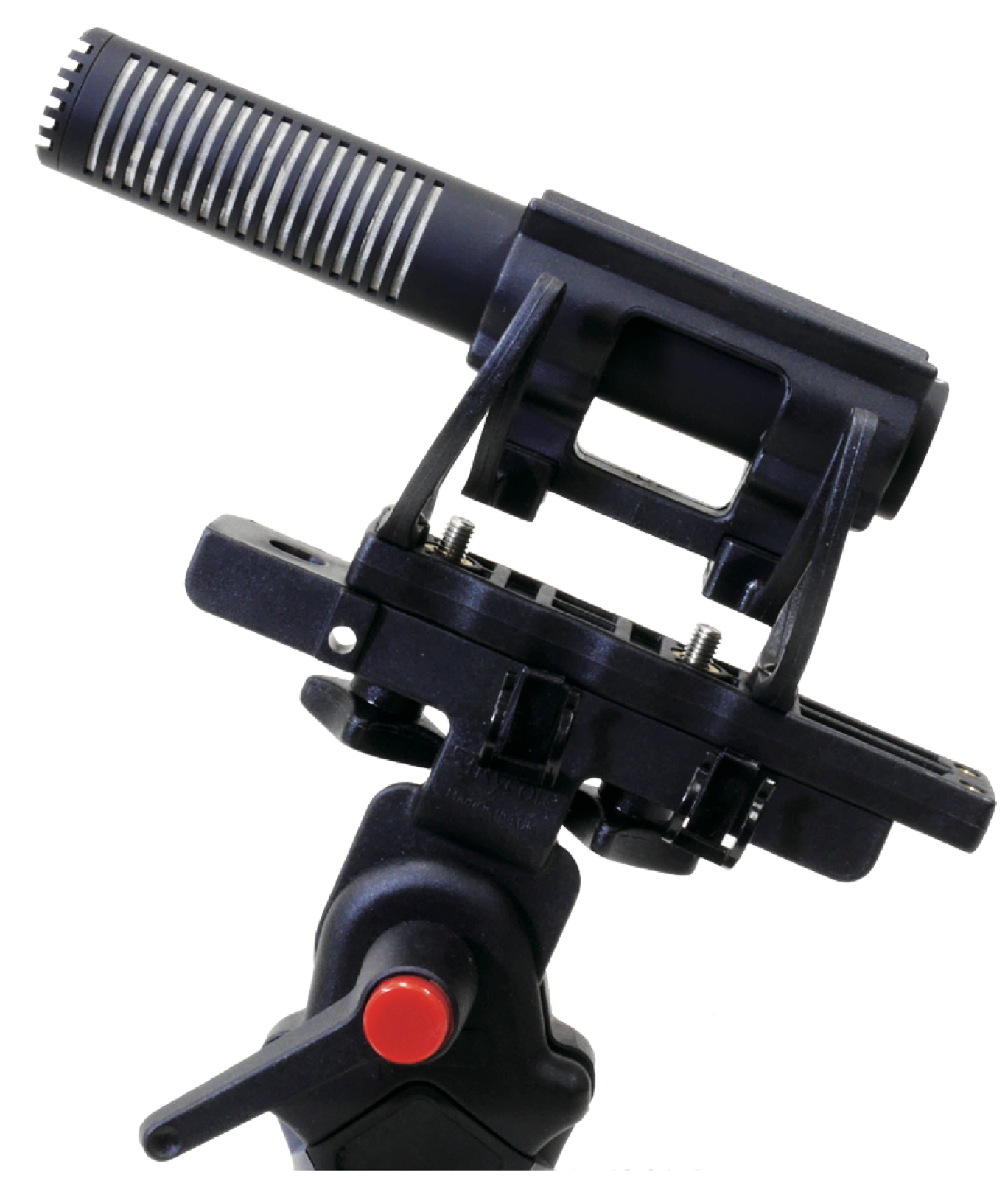

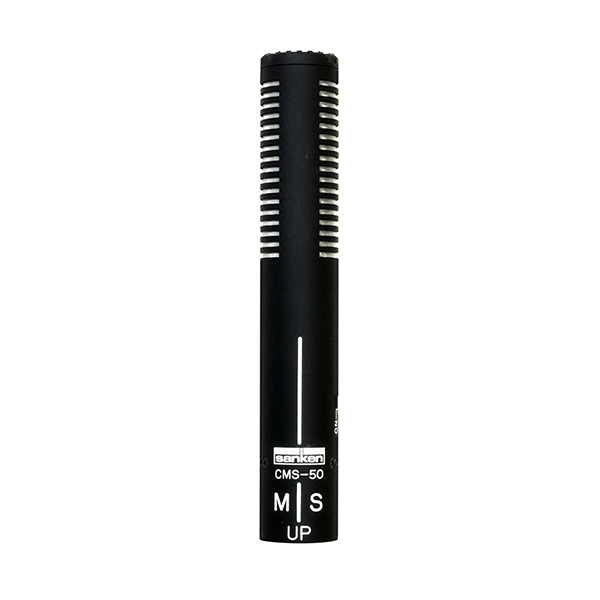

The unique CMS-50 is a compact stereo condenser shotgun microphone. It is 14 cm long and weighs only 130 g. It is particularly suitable for users who require the versatility and stereo sound of an MS (Mid-Side) design. The shotgun microphone features two outputs: one cardioid and one figure-eight to adjust the stereo image.
This MS configuration allows the stereo width to be adjusted from mono to stereo sound. If both outputs are recorded separately, this stereo impression can be modified later in post-production.
|

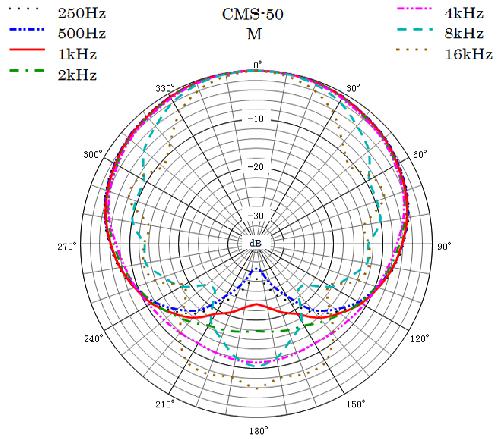

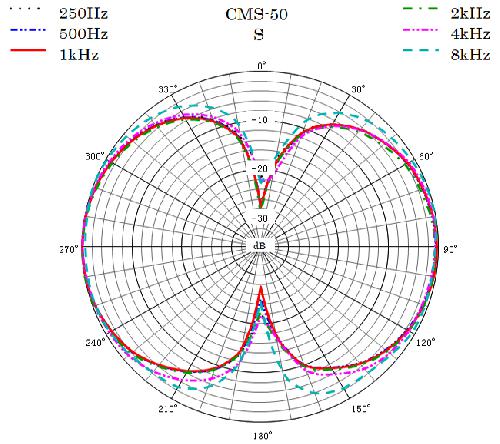

Directivity |
M: Cardioid, S: Figure-8 |
|
Transducer |
Self – polarised condenser |
|

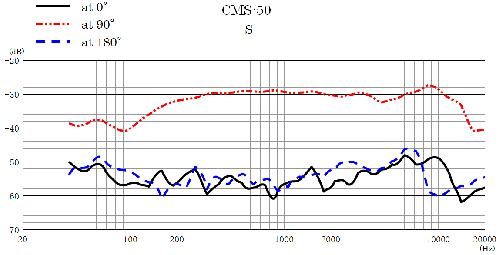

Frequency response |
(60Hz – 20kHz) |
|
Sensitivity (at 1kHz) |
-28dB (40mV) (0dB = 1V/Pa) |
|
Equivalent noise level (A weighted) |
18dB SPL (A weighted) |
|
Max SPL (1% THD) |
138dB SPL |
|
Output impedance( 1kHz ) |
140 ohms |
|
High pass filter cut off freq. |
60Hz |
|
Powering |
+48V ± 4V Phantom U.P.F |
|
Current consumption |
4 mA (each channel) |
|
Weight |
130 g |
|
Dimensions |
137 mm x 22 mm (diameter) |
|
Surface finish |
Matte Black |
|
Connector |
XLR-5M |
