Sanken

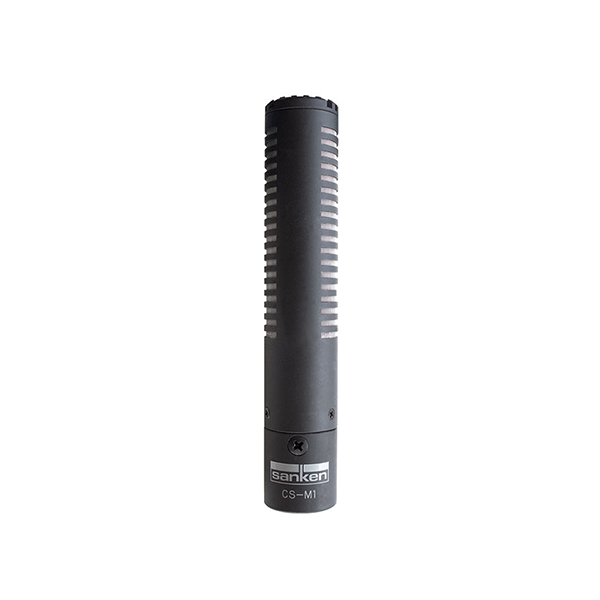

CS-M1 - Ultra Short Shotgun Microphone
CS-M1 - Ultra Short Shotgun Microphone
excl. VAT
Ready to ship in 3-5 days
Item number: A06819
Couldn't load pickup availability

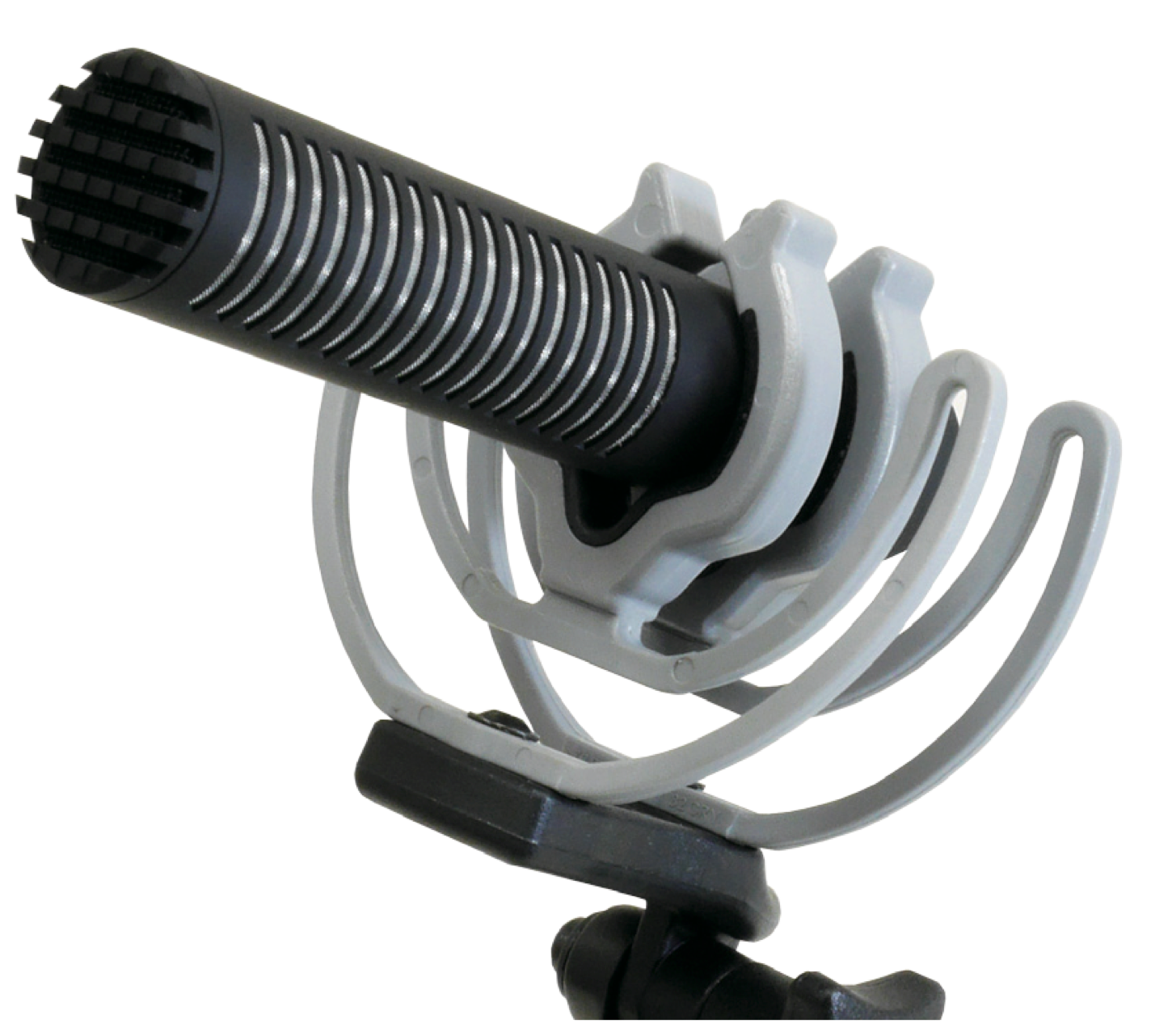

The CS-M1 is the perfect solution for use on boom poles or direct camera mounting. It can be mounted on a camera without interfering, even with a short lens, while still delivering the audio quality demanded by professionals.
|

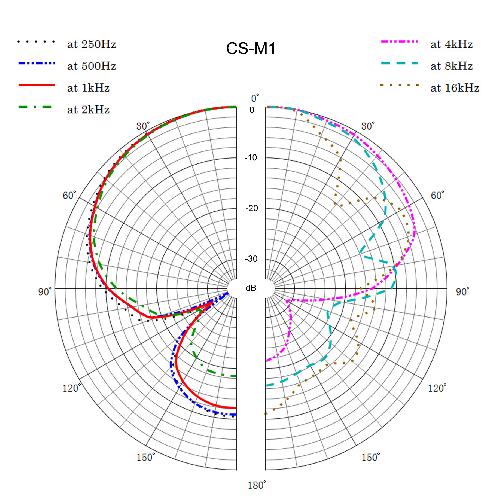

Directivity |
Super Cardioid / lobar |
|
Transducer |
Back Electret Condenser |
|

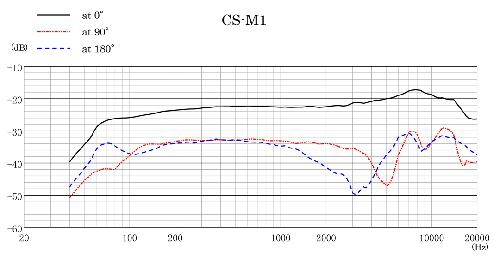

Frequency response |
(70Hz – 20kHz) |
|
Sensitivity (at 1kHz) |
79mV/Pa (-22dB, 0dB=1V/Pa) |
|
Equivalent noise level (A weighted) |
16dB SPL |
|
Max SPL (1% THD) |
137dB SPL |
|
Output impedance( 1kHz ) |
140 ohms |
|
Powering |
+48V±4V Phantom Powering |
|
Current consumption |
4mA |
|
Weight |
55g |
|
Dimensions |
103mm x 19mm (diameter) |
|
Surface finish |
matte black |
|
Connector |
XLR-3-12C(M) equivalent |
|
Included Accessories |
WM-M1 Urethane windscreen |
