Sanken

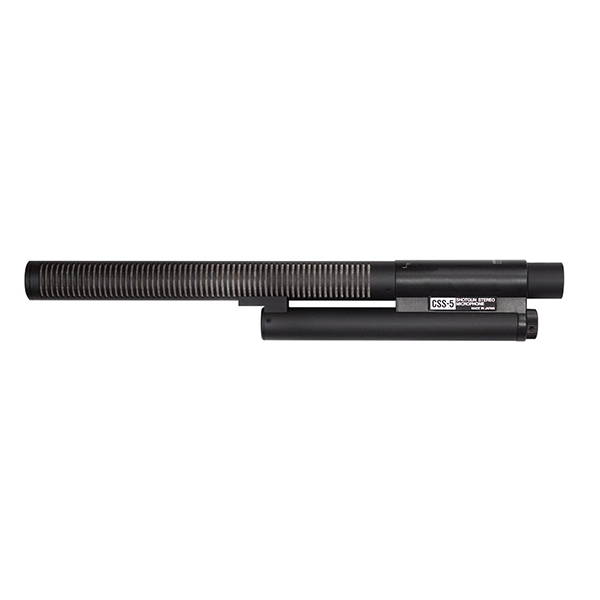

CSS-5 - stereo/mono switchable shotgun microphone
CSS-5 - stereo/mono switchable shotgun microphone
excl. VAT
Ready to ship in 3-5 days
Item number: A06820
Couldn't load pickup availability
Thanks to its vertically arranged three-capsule design, the CSS-5 offers excellent mono/stereo compatibility without phase issues.

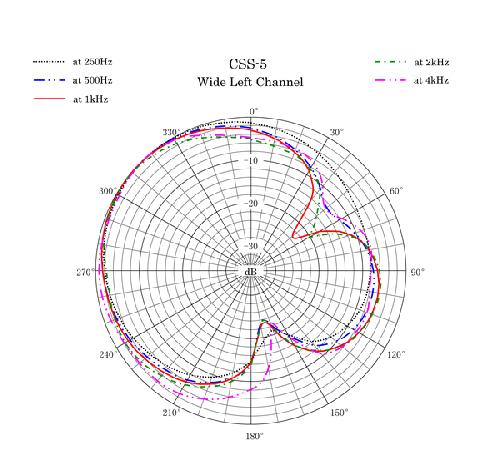

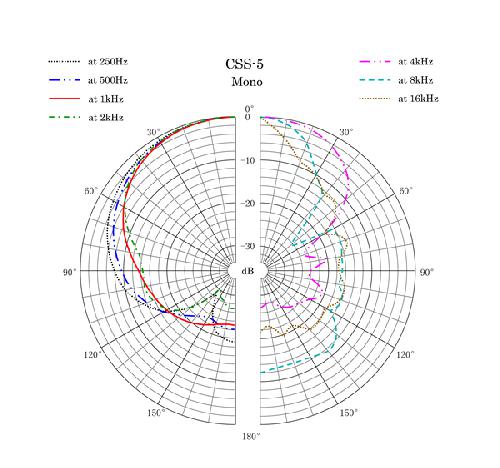

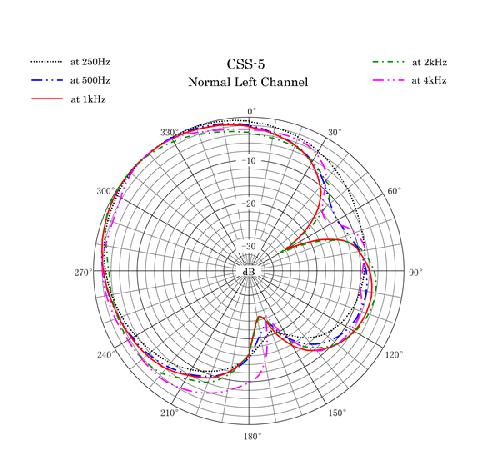

In MONO mode, the CSS-5 provides a sharp directional pattern across a wide frequency range, making it ideal for clear recordings even in noisy or reverberant environments. In NORMAL mode, it captures targeted sounds with precision, featuring a stereo angle of approximately 115°. The WIDE mode expands the stereo width to 140 degrees, perfect for ambient sound recordings where dialogue will be added later.
Directivity |
Super Cardioid / lobar, 2ch stereo |
Transducer |
DC biased condenser |

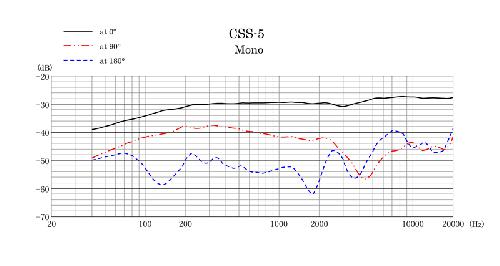

Frequency response |
100Hz – 15kHz |
Sensitivity (at 1kHz) |
MONO 35mV/Pa ( -29dB,0dB=1V/Pa) |
Equivalent noise level (A weighted) |
18dB-A |
Max SPL (1% THD, at 1kHz) |
120dB SPL |
Output impedance( 1kHz ) |
240 ohms |
Powering |
+48±4V phantom X 2ch |
Stereo Angle |
NOR 120°, WIDE 140° |
Current consumption |
less than 2.5mA ( Lch ) |
Weight |
250 g |
Dimensions |
300 mm x 45 mm |
Surface finish |
Matte Black |
Connector |
XLR-5M |
