Sanken

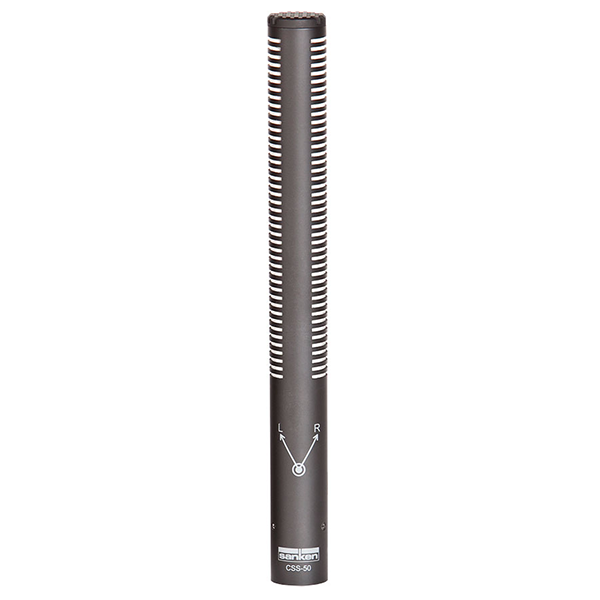

CSS-50 - stereo/mono switchable shotgun microphone

CSS-50 - stereo/mono switchable shotgun microphone

Regular price 1.462,10 EUR

excl. VAT

Regular price Sale price 1.462,10 EUR
Sale

Delivery time upon request

Item number: A16900



Thanks to its vertically arranged three-capsule design, the CSS-50 offers excellent mono/stereo compatibility.

In MONO mode, it maintains sharp directivity across a wide frequency range, capturing sound sources clearly even in noisy or reverberant environments. In NORMAL mode, it provides precise stereo localization with an angle of approximately 115 degrees. The WIDE mode expands the stereo width to 140 degrees, making it ideal for recording sound effects.

The CSS-50 nearly eliminates the proximity effect, ensuring consistent sound quality regardless of the distance to the sound source.

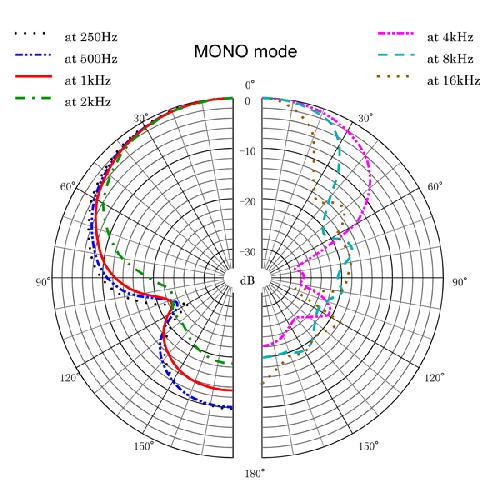

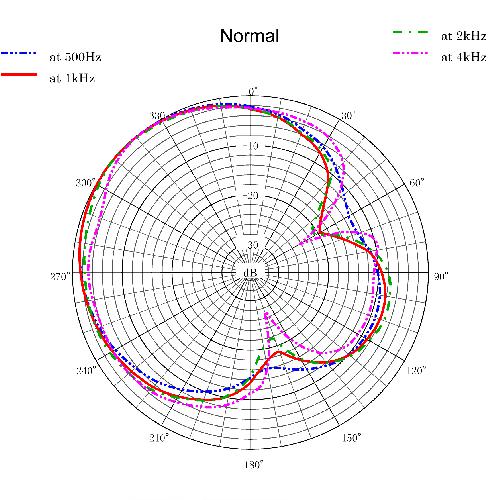

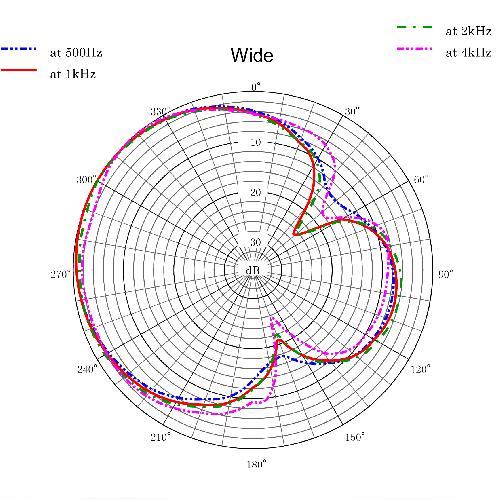

Directivity

Super Cardioid / lobar and 2 channel stereo

Transducer

Back electret condenser x 3

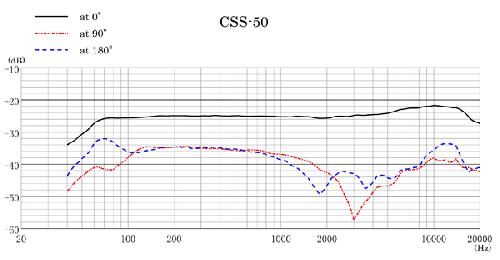

Frequency response

60Hz – 20kHz

Sensitivity (at 1kHz)

MONO: 56mV/Pa (-25dB, 0dB=1V/Pa)
NORMAL: 100mV/Pa (-20dB, 0dB=1V/Pa)
WIDE: 141mV/Pa (-17dB, 0dB=1V/Pa)

Equivalent noise level (A weighted)

MONO: 16dB SPL
NORMAL,WIDE: 17dB SPL

Max SPL (1% THD, at 1kHz)

120dB SPL

Switch

MONO, NORMAL, WIDE


Output impedance( 1kHz )

140 ohms

Powering

+48±4V phantom

Current consumption

4mA

Weight

160 g

Dimensions

215mm x 22mm diameter

Surface finish

Matte Black

Connector

XLR-5M

Included Accessories

WM-50 Urethane windscreen
