Sound Devices

Scorpio - Portable 32-Channel Audio Mixer/-Recorder

Name: Scorpio - Portable 32-Channel Audio Mixer/-Recorder
Brand: Sound Devices
SKU: A09886
Price: 11252.0 EUR
Availability: InStock

Premium Portable Mixer-Recorder

11.252,00 EUR

excl. VAT

11.252,00 EUR

Sale

Quantity

16 ultra low-noise, Scorpio microphone preamplifiers
32 channels, 12 buses, 36 tracks
32 channels of Dante I/O
256 GB internal SSD, 2 SD card slots
USB control surface support via MCU

Ready to ship in 5-8 days

Item number: A09886

Description

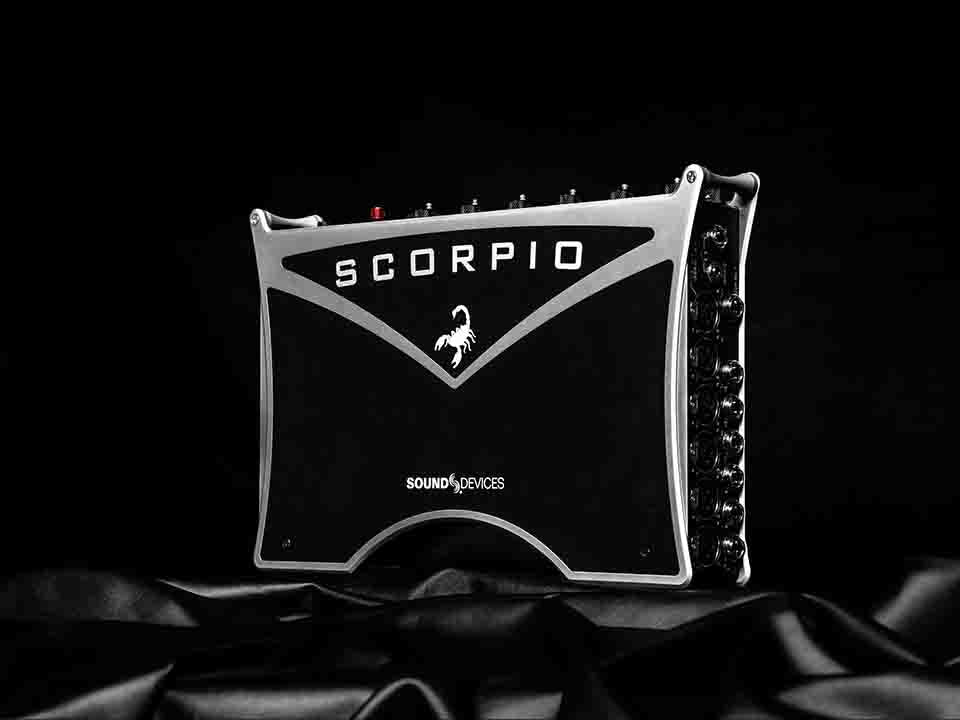

Scorpio is a 32 channel, 36 track mixer-recorder and the most powerful product ever designed by Sound Devices. With 16 mic/line preamplifiers, 32 channels of Dante in and out, AES in and out, 12 analog outputs and multiple headphone outputs, Scorpio is well-suited for any production scenario. A fully-customizable routing matrix enables sound professionals to send any input to any channel, bus, or output. Up to 12 buses may be individually mixed. Due to its compact form factor, the Scorpio is equally at home over-the-shoulder or in a mobile rig.

Scorpio incorporates Sound Devices’ most cutting-edge technology. An ultra-powerful engine comprised of three FPGA circuits and six ARM processors deliver the horsepower needed for the most complex tasks. FPGA-based audio processing with 64-bit data paths ensures the highest sound quality and reliability. The Scorpio also features Sound Devices’ latest and best in analog microphone preamplifier design. These preamps have the smoothest sound and lowest noise of any preamp in the company’s 20-year history and include built-in analog limiters, high pass filters, delay, 3-band EQ and phantom power.

The Scorpio has an internal 256GB SSD and can simultaneously record to two SD cards for redundancy. For additional flexibility, sound professionals can send different files to their choice of media. The companion SD-Remote Android application allows for control of the Scorpio via a large display.

Great attention to detail has been paid to every aspect of the Scorpio’s design. Most common menus are accessible with only one or two button presses, and many menu shortcuts can be achieved with only one hand. Scorpio features a built-in dual L-Mount battery charger and may be powered with L-Mount batteries or via the TA4 DC inputs using smart batteries, NP-1 batteries, or in-line power supplies. The ultra-accurate, fully-featured timecode generator contains its own battery to hold timecode for up to four hours after power off.

ACCESSORIES

SL-2

SuperSlot Module

SD-REMOTE

Companion Android application
Large metering and timecode display
Transport control
Metadata editing

CL-16 USB CONTROL SURFACE

Supports select third party controllers via MCU open protocol
iCON Platform M+ with D2 Display supported in v1.00

XL-SmartBattery

14.4 V Smart Battery Li-ion 6.8 Ah, 98 Wh.

XL-SmartCharger

Inspired Energy dual charger for XL-SmartBattery

Frequency Response 10 Hz to 80 kHz ± 0.5 dB (192 kHz sample rate, re 1 kHz)
THD + Noise 0.005% max (mic in, 1 kHz, 22 Hz–22 kHz BW, trim at 20, fader at 0, -10 dBu in)
Equivalent Input Noise -131 dBV (-129 dBu) max (mic in, A-weighting, 76 dB gain, 150 ohm source impedance)

Highly extensible, full FPGA-based audio processing, 3 FPGAs
Six-way ARM multiprocessor system
64-bit audio processing precision

Dante, AES67 compatible
32 channels in, 32 channels out (up to 96 kHz); 16 channels in, 16 channels out (192 kHz)
1 Gb/s Ethernet, 2 ports, transformer-balanced

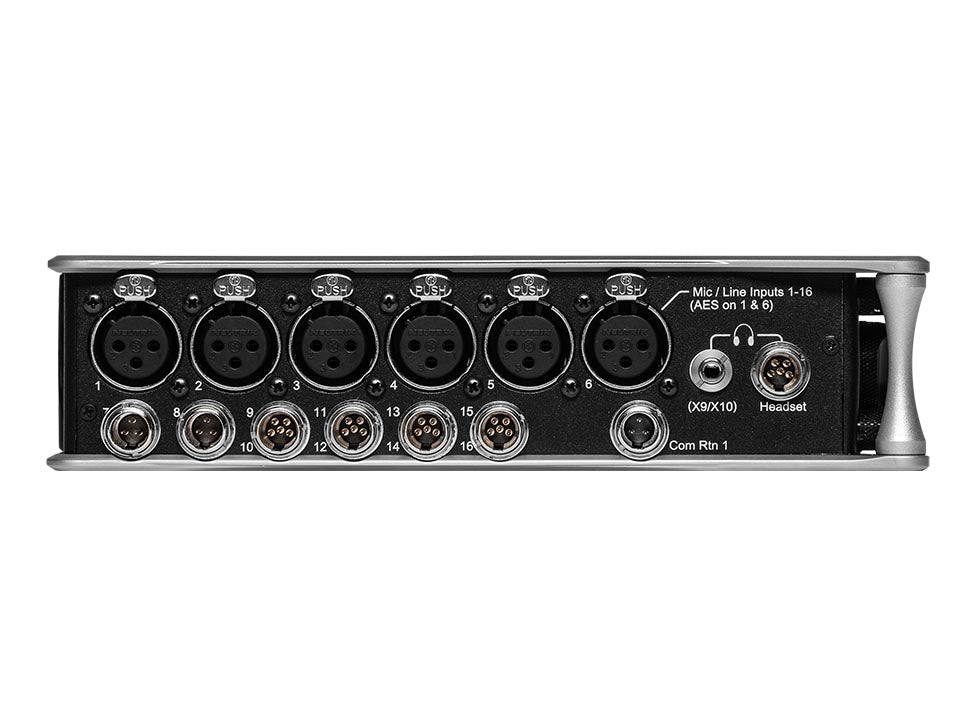

Mic/Line inputs 16 total, all fully featured; 6 on full-size XLR, 2 on TA3, 8 on TA5
Mic-level inputs: (XLR, TA3, TA5): Class-A, discrete differential long-tail pair, 4k ohm input impedance
Line-level inputs: (XLR, TA3, TA5): active-balanced, 4k ohm input impedance
48V phantom: full 10mA to all 16 inputs simultaneously
AES3 or AES42 available on XLR inputs 1 and 6
AES42: +10 V, 250 mA available, mode-1, auto-ASRC
Rtn A, B, C (3.5 mm/10-pin): unbalanced 2-channel, 4k ohm input impedance
Com Rtn 1,2 (TA3, 3.5mm) balanced, 1-channel, 8k ohm input impedance
External Slate Mic (TA5): balanced, 8k ohm input impedance, menu-selectable 12 V phantom
Maximum Input Level | Mic: +8 dBu (2.0 Vrms)
Maximum Input Level | Line: +28 dBu (19.5 Vrms)
Maximum Input Level | Rtn A, B, C: +18 dBu (6.2 Vrms)
Maximum Input Level | Com Rtn 1, 2: +24 dBu (12.3 Vrms)
Maximum Input Level | External Slate Mic: +12 dBu (3.2 Vrms)
High-Pass Filters Adjustable 10 Hz to 320 Hz, 18 dB/oct. 1st stage analog (before preamp), 2nd stage digital.

Limiters available at all channels, buses and headphones for all sample rates
Analog first stage, all subsequent stages digital
Attack time: 1 ms
Release time: adjustable, 50 ms to 1000 ms
Threshold: adjustable, -2 dBFS to -12 dBFS
Selectable ratio: inf:1, 20:1, 18:1, 16:1, 14:1, 12:1, 10:1

Channel Adjustable 0-50 ms
Output Adjustable 0-500 ms

Trim stage (mic input): 76 dB
Trim stage (line input): 50 dB
Fader stage: 16 dB
Bus stage: 16 dB
Headphone stage: 20 dB
Mic-to-Line: 108 dB
Mic-to-Headphone: 112 dB

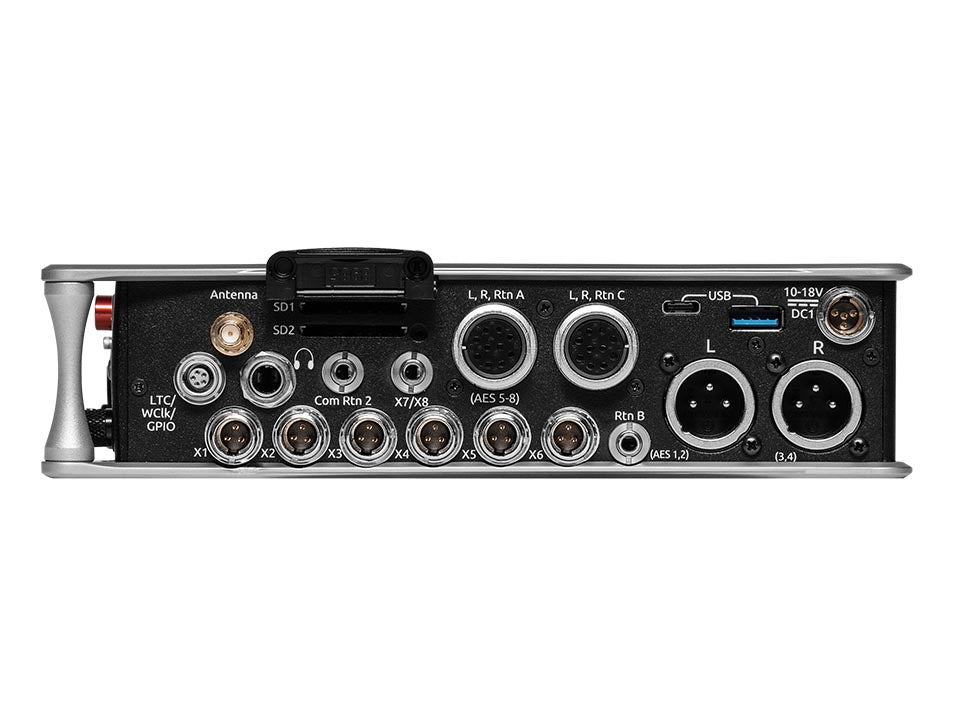

XLR (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
Hirose 10-pin (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
TA3 (X1-X6) active-balanced, 250/3.2k/120 ohms (mic/-10/line)
3.5mm (X7, X8): unbalanced, stereo, 1.8k ohm

¼”, 3.5 mm
TA5 (along with mic input pins) for single connection to headset + mic
High output, 4 ohm output impedance, 400 mW + 400 mW at each connector, all individually driven
Compatible with headphones of any impedance
Maximum Output Level (all into 10k load)
Line: +20 dBu (7.8 Vrms)
“-10”: +6 dBu (1.5 Vrms)
Mic: -20 dBu (0.078 Vrms)
X7/X8 Out: +6 dBu (1.5 Vrms)
Headphone outputs (¼”, TA-5, X9/X10): +14 dBu (4.0 Vrms)

AES3 transformer-balanced, in pairs; 1-2 (XLR-L), 3-4 (XLR-R), 5-8 (Hirose 10-pin A)
110 ohm, 2 V p-p, AES and S/PDIF compatible

A/D Converters 32-bit, 120 dB, A-weighted dynamic range typical
Sampling rates 44.1 kHz, 47.952 kHz, 48 kHz, 48.048 kHz, 88.2 kHz, 96 kHz, 192 kHz
Bit Depth 16, 24
Internal 256 GB SSD; two removable SD Cards. Each 10% over-provisioned (reserved free space) for optimum performance
Simultaneous recording to internal SSD and the two SD cards
exFAT formatting
36 tracks (32 iso channels, 4 buses)
Broadcast WAV monophonic (48048 and lower) and polyphonic file format
64-bit WAV (RF64) monophonic and polyphonic; support for files > 4 GB

Dugan Automixer up to 16 channels on Left and Right Mix bus

USB-C (USB 3.1 type 1) for file transfer of internal SSD, both SD Cards
USB-A host for keyboard, external controller, external USB hubs supported for connecting multiple devices

Modes Supported: Off, Rec Run, Free Run, 24h Run, External, including External Auto-Record and Continuous modes.
Frame Rates: 23.98, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND
Sample/Timecode Accuracy: 0.1 ppm (0.25 frames per 24 hours)
Timecode Input: 20k ohm impedance, 0.3 V – 3.0 V p-p (–17 dBu – +3 dBu)
Timecode Output: 75 ohm impedance, 5 V p-p (+12 dBu)

USB MIDI MCU Control – supported 3rd party fader controllers
SD-Remote Android app
USB Keyboard
External Timecode Record Trigger

320×240, Transflective, excellent sunlight visibility
Larger touchscreen display available via USB-connected SD-Remote app

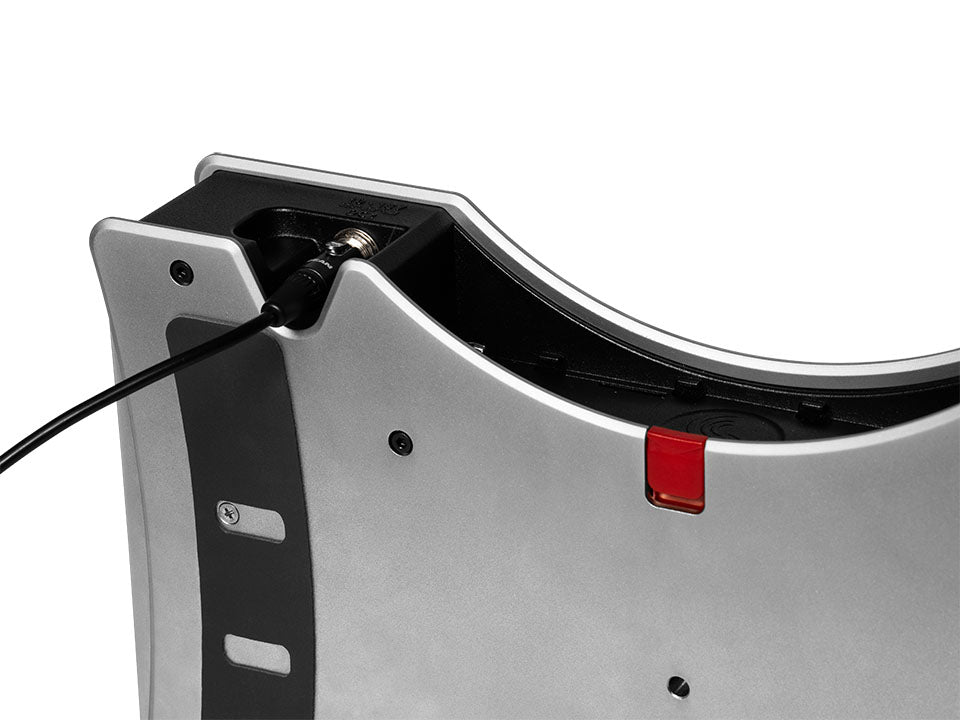

External: dual 10-18 V inputs on locking TA4 connectors, pin-4 = (+), pin-1 = (-)

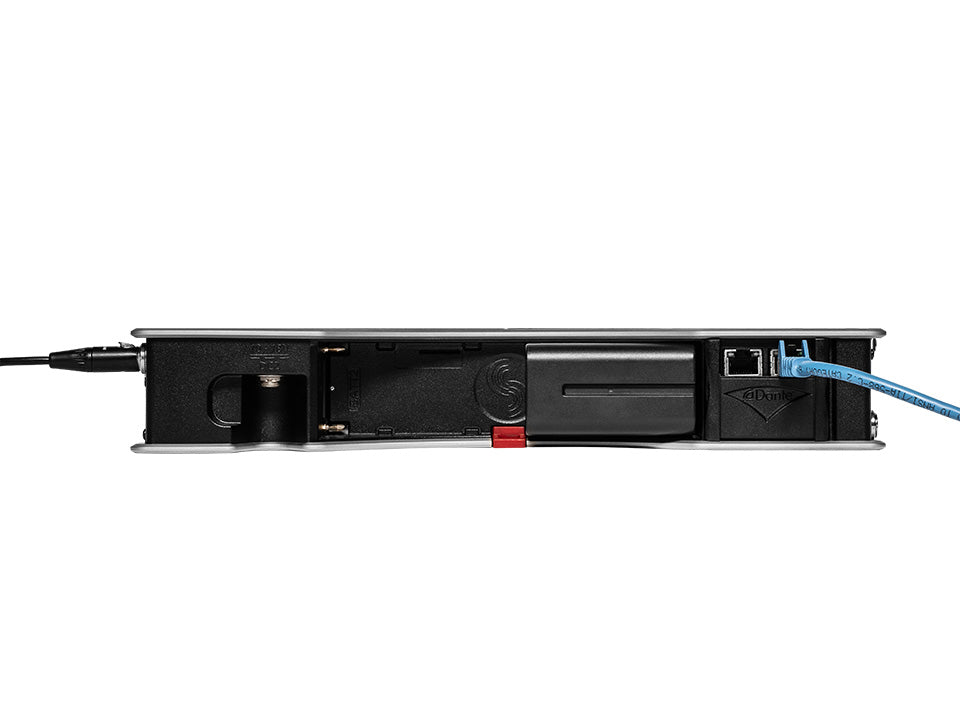

Dual rear-mount Sony-style L-mount batteries with chargers
Current Draw, at 12V no battery charging: All mic preamps off: 1.04 A, All mic preamps on: 1.37 A, All mic preamps on, 192 kHz sample rate, recording to 2 SD Cards: 1.55 A, All mic preamps on, 192 kHz sample rate, recording to 2 SD Cards, Dante enabled: 1.84 A
Intelligent power-down of unused mic preamps and other internal circuits

Operating: -20° C to 60° C, 0 to 90% relative humidity (non-condensing)
Storage: -40° C to 85° C
Dimensions (H x W x D): 5.1 cm x 32 cm x 20.5 cm; 2.0 in. x 12.6 in. x 8.1 in
