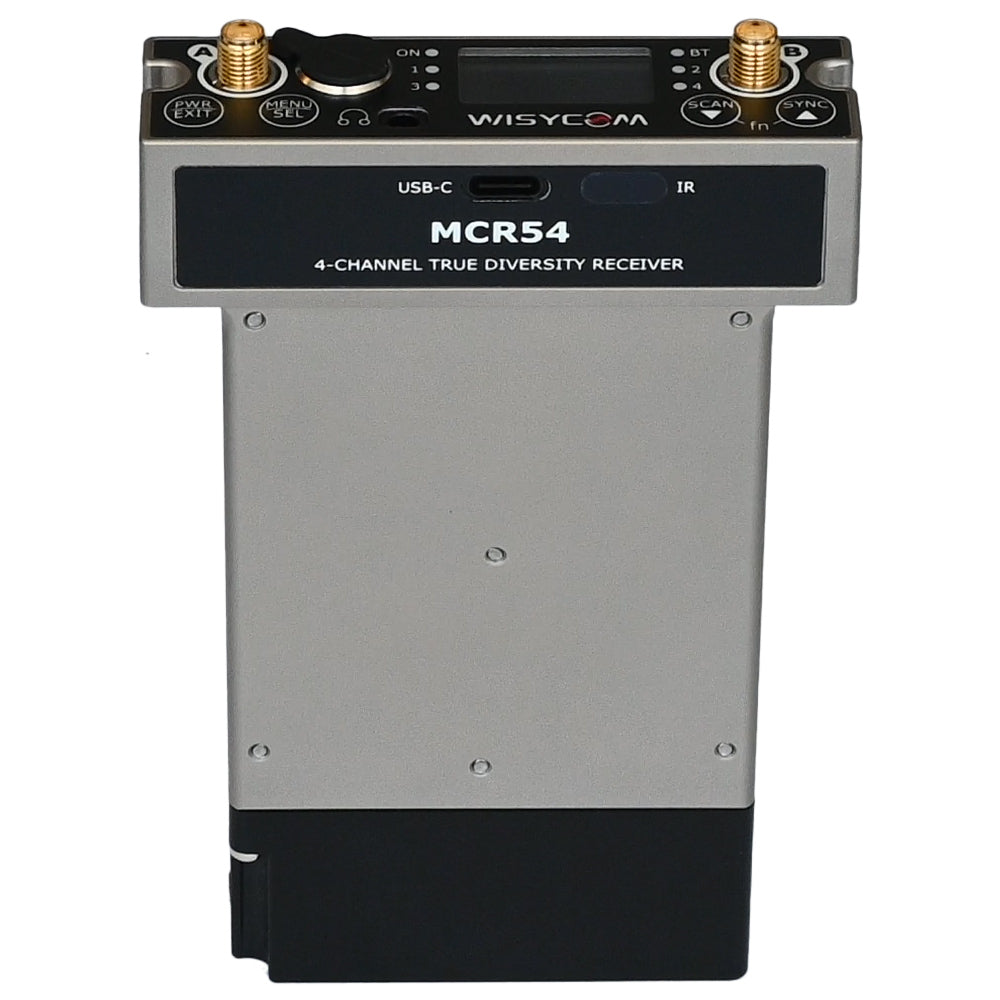

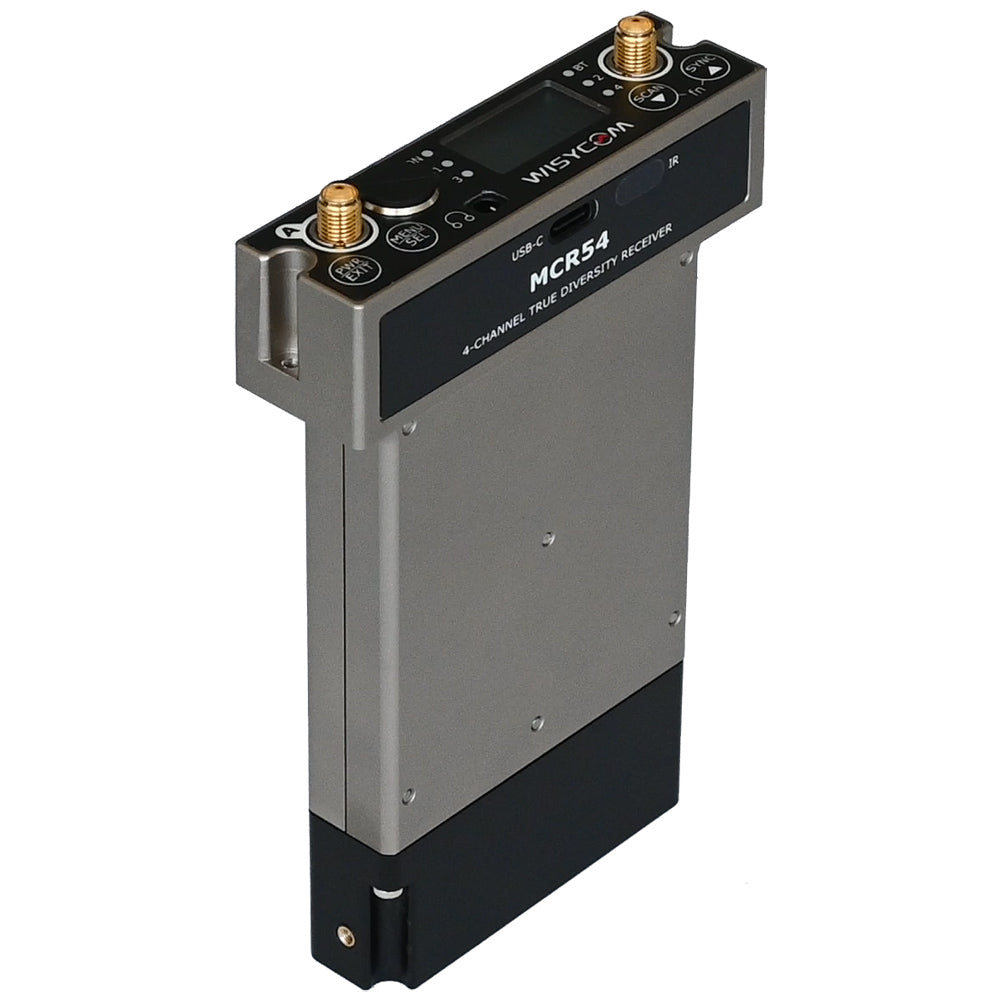

MCR54-B2 - 4 Channels Multiband True Diversity Receiver

The Wisycom MCR54 is a wireless true diversity microphone system with four channels, designed for cameras. It can be used as a standalone module or in a slot configuration and is compatible with most camera slots and “multi-slot” mixer accessories.

FEATURES

• Four-Channel True Diversity Receiver: Features 8 receiving plates for exceptional signal stability.
• Compact and Robust Design: Exceptionally small and durable construction.
• DSP-Analog and Digital Audio Output: Includes AES3 digital output.
• Next-Gen Multiband Frontend Filtering:
   - High-quality electronically tunable filter covering 470–800 MHz
   - 1. Narrowband Filter: 823–832 MHz
   - 2. Narrowband Filter: 940–960 MHz
• Wideband and Narrowband Modes: (DSP-FM, selectable via software)
• Narrowband Advantages:
   - 50% higher bandwidth efficiency
   - Approximately 3 dB improved sensitivity and interference immunity
• Ultra-Low Noise VCO: Enables super-fast frequency scanning for optimal, quick, and easy setup.

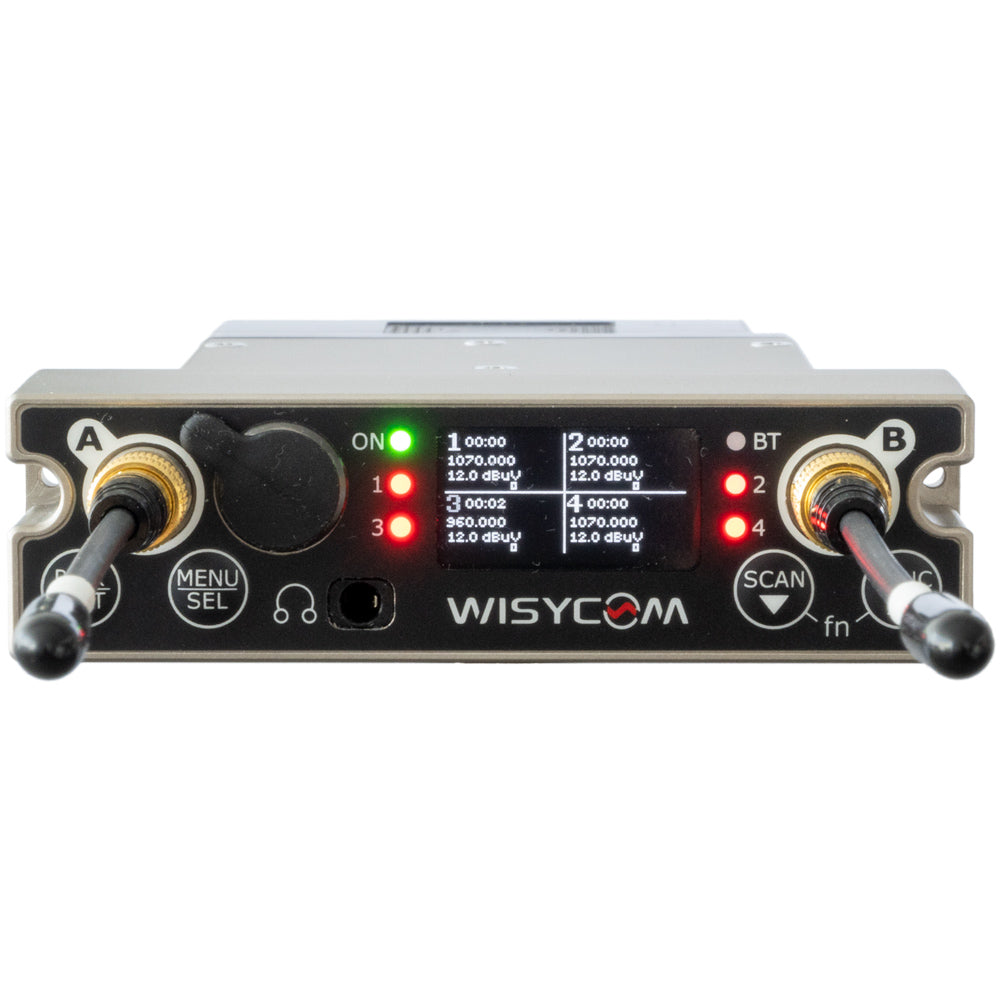

• High-Contrast OLED Display: For clear visibility in all lighting conditions.
• Auto Scan and Transmitter Programming: Via infrared and Bluetooth 5 Long Range.
• DSP-Based Processing: Ensures maximum flexibility and multi-compressor operation.
• Control and Monitoring: Through USB-C or Bluetooth 5 (Long Range) using Wisycom Manager 2.0 software.
• Rear Antenna Connections: Along with micro audio and power adapters.
• Whip Antennas: Provided for the relevant working frequency ranges.
