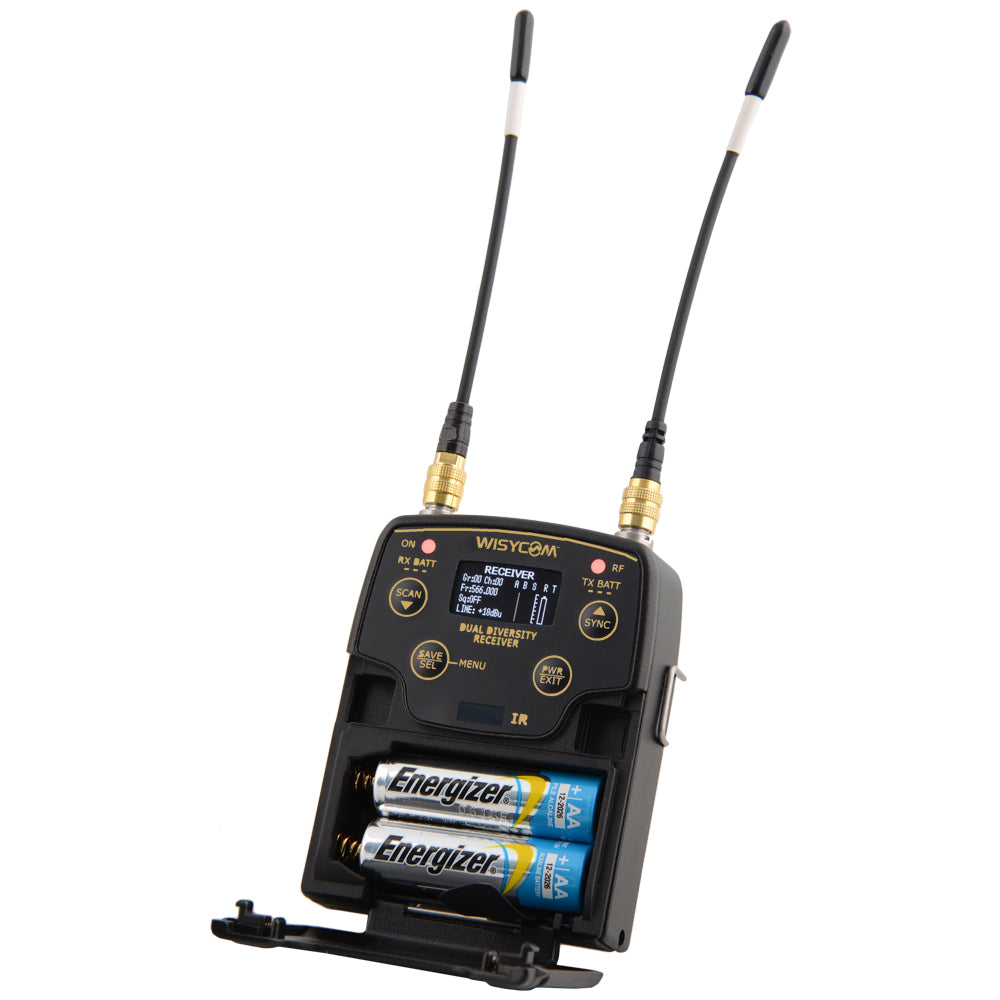

MPR52-ENG - 2 channel receiver

The Wisycom Wisycom is a compact dual-channel receiver specifically designed for professional ENG applications.

The new MPR52 features two integrated diversity receivers with both analog and digital outputs. With a tuning range of up to 790 MHz, spanning 470 to 1260 MHz, the MPR52 offers advanced next-generation multiband frontend filtering.

The software-controlled wideband and narrowband DSP-FM modes give users the flexibility to adapt their projects as needed. Country-specific surface acoustic wave (SAW) filters are also available (USA: 935–960 MHz, Japan: 1240–1260 MHz).

Available Variants:

• B1: 470–800 MHz, 940–960 MHz (for USA), 960–1160 MHz (DME)
• B2: 470–800 MHz, 960–1160 MHz (DME), 1240–1260 MHz (for Japan)

The receiver includes convenient function buttons, including a dedicated frequency scan option. Battery management is flexible, supporting standard battery packs that can be charged using a dedicated charger or via the Micro-USB-B port.

FEATURES

• Dual-Channel Diversity Receiver: Ensures robust signal reception.
• DSP Analog and Digital Audio Outputs: Includes AES3 digital output.
• Up to 790 MHz Bandwidth: Covers a tuning range from 470 to 1260 MHz.
• Next-Generation Multiband Frontend Filtering:
   - High-quality tunable filter for 470–960 MHz
   - High-quality tunable filter for 960–1160 MHz (DME)
   - Country-specific SAW filters: USA 940–960 MHz & Japan 1240–1260 MHz or 806–810 MHz
• Wideband and Narrowband DSP-FM Modes: (software-controlled)
   - Narrowband provides 50% higher bandwidth efficiency.
   - Offers ~3 dB improved sensitivity and interference immunity.
• Ultra-Low Noise VCO: Enables super-fast spectrum scanning for optimal, quick, and easy setup.
• High-Contrast OLED Display: For clear visibility in all conditions.
• Automatic Scan and Transmitter Programming: Via infrared.
• DSP-Based Processing: Ensures maximum flexibility and multi-compressor operation.
• Miniature Design with Integrated Battery Pack:
   - MPRLBP (Cameron Sino Reference No.: CS-WMR500SL)
   - Compatible with 2 x AA batteries
• Supports operation and charging (lithium) via USB port
• Monitoring and Control: Via USB and Wisycom Manager 2.0 software:
• Transforms the MPR52 into a portable, ultra-low noise spectrum scanner!
• Included Accessories: Matching whip antenna and belt clip.
