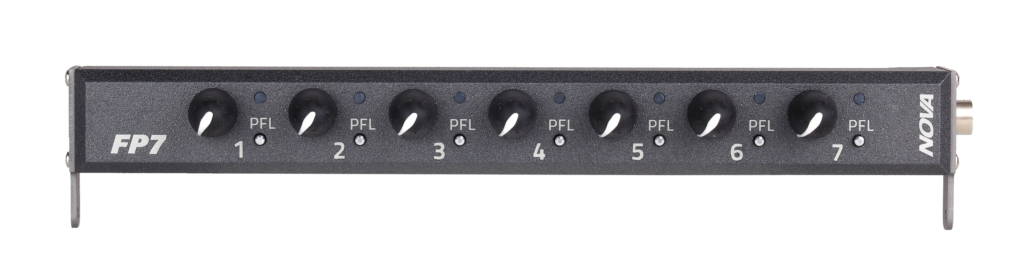

PFP-7 - 7 pot fader panel

FP7 is a small, lightweight fader expansion panel that connects directly to Nova or Nova 2. 7 potentiometers can be used as fader controls for any analog or digital input. The FP7 has traditional faders with smooth movements and end stops. This allows the 5 endless bank-controlled faders of the Nova and Nova 2 to work as usual, while the 7 individual FP7 potentiometers take over control. This provides a total of 12 hardware controls that can be used simultaneously. It also has 7 PFL buttons.

CONNECTIVITY

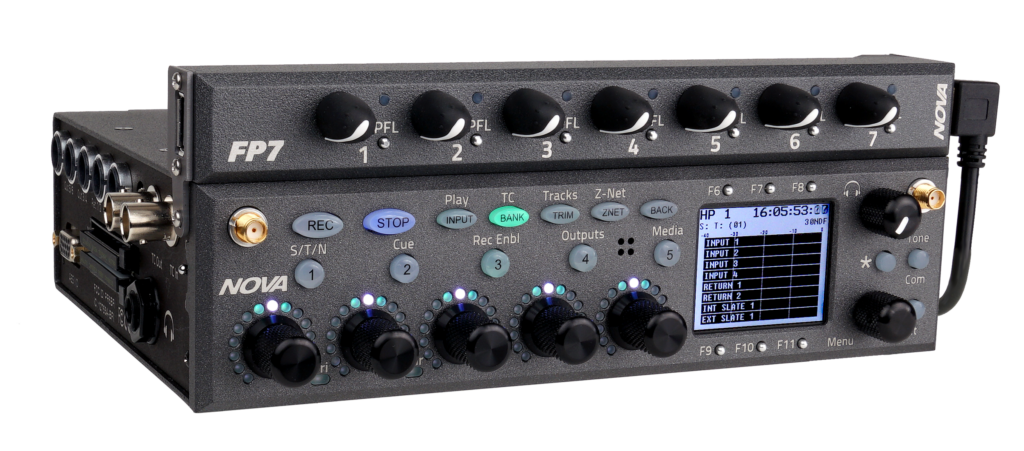

Adding the FP7 to your Nova or Nova 2 couldn't be easier! The control surface plugs directly into the Nova or Nova 2's RS422 port via a USB-A cable and is secured with two 2/56 machine screws and two standoffs.

There is an RS422 port on the side of the FP7 that allows accessories such as the Nova Touch software interface to be used simultaneously with the FP7. There is also a USB-A port on the rear of the FP7 which can be used to connect a full keyboard or software updates.

POWER SUPPLY

The FP7 is supplied with power via a 4-pin 12 V Hirose connection. The current consumption is nominally 50 mA at 12 V.
