VRX1 IFB Audio Receiver - Analog

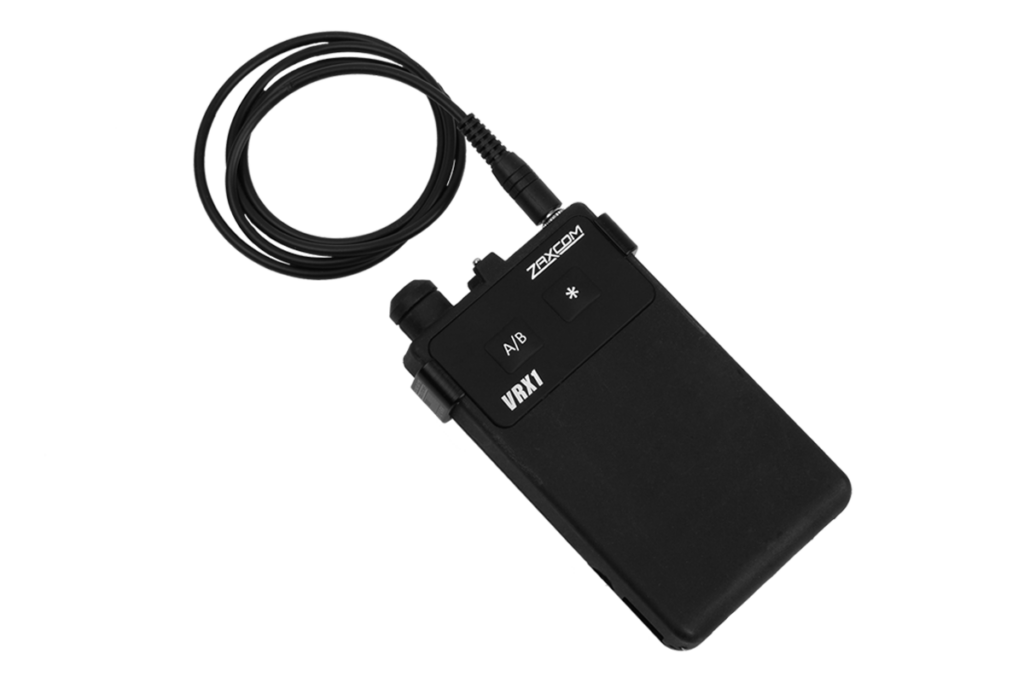

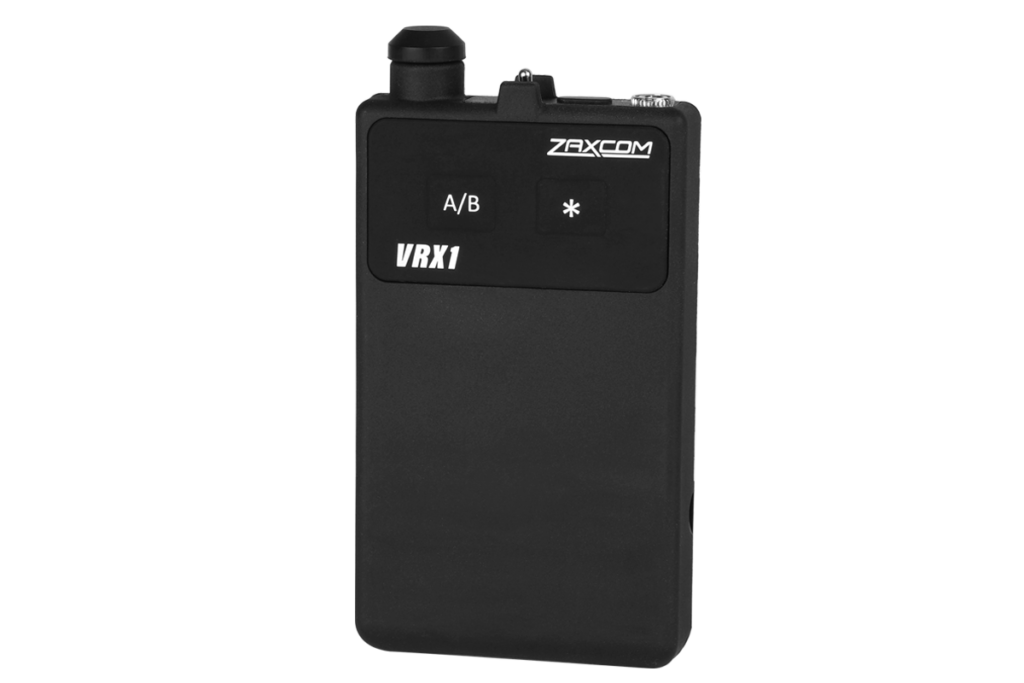

VRX1 is an analog VHF-IFB audio receiver designed for audio monitoring and cueing of voice actors in the film, television and radio industries. Simply connect an earphone or headphones to the 3.5mm output for clean, reliable audio performance.

Key features include an intuitive voice announcement system, tuning, picture-specific audio delay, adaptive squelch, headphone equalization and multiple power options - all in a robust, easy-to-use device.

TECHNOLOGY

VRX1 features an innovative direct conversion design for audio reception that reduces all forms of RF interference while extending battery life.

CONNECTIVITY

VRX1 operates in the VHF frequency range 192-217 MHz and is pre-programmed with 10 standard channels for quick setup:

-216.025 -216.075 -216.175 -216.275 -216.425 -216.525 -216.725 -216.825 -216.925 -216.975

Pre-programmed channels can be reconfigured via the optional Zaxcom GUI Bridge (ZGB).

COMPATIBILITY

VRX1 is compatible with analog VHF FM Comtek transmitters operating on 192-217 MHz. This allows you to combine the VRX1 with other Comtek IFB receivers connected to the same transmitter.

Current transmitter compatibility:
- Comtek BST 75-216
- Comtek BST 25-216
- Comtek M-216

OPERATION, LANGUAGE & TUNING

The A/B and * buttons on the front panel control the settings and can be programmed to restrict control or be disabled completely.

Voice prompts provide information via headphones about the current channel selection, battery life and other button settings. The voice prompts can also customize the button settings.

Voting allows the VRX1 to automatically connect to the strongest transmitter signal when more than one transmitter is in use.

Voice prompts and voting can be disabled.

ZAXCOM GUI BRIDGE (ZGB)

The optional Zaxcom GUI Bridge (ZGB) combines hardware and software and allows complete control over VRX1 settings via an easy-to-use interface. Connect a ZGB to a VRX1 via USB-C to program advanced settings and quickly manage a large inventory.

AUDIO DELAY

VRX1 has audio delay settings that can be customized from 1 to 15 frames.

POWER SUPPLY

The VRX1 can be powered by 2x AA alkaline, NiMH or lithium batteries.

-2x alkaline batteries up to 9 hours
-2x NiMH AA batteries up to 13 hours
-2x lithium AA batteries up to 17 hours

Rechargeable NiMH batteries can be charged in the receiver.

ACCESSORIES

An optional E/V clip is compatible with both the VRX1 and the ERX3TCD and allows for quick and easy connection.
An optional VRX dual charger can charge two VRX1 receivers.
