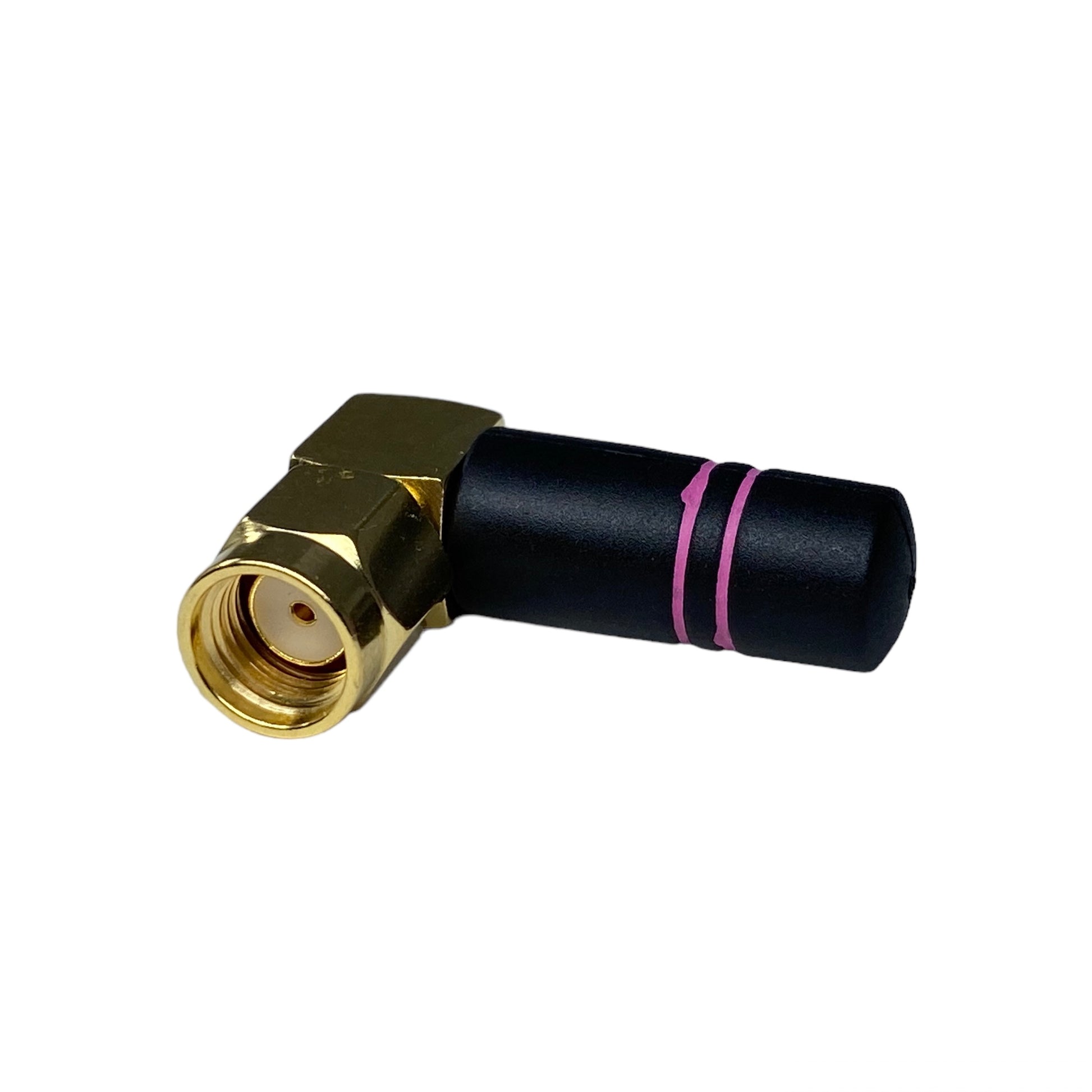

• Right-angle 2.4 GHz antenna with SMA plug and pink ring

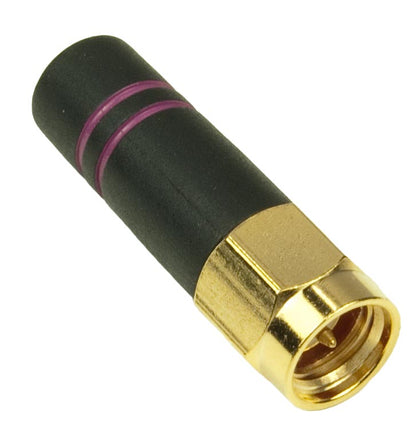

  • Straight 2.4 GHz antenna with SMA plug and two pink rings
1 2

Ambient

Antenna 2.4 GHz

Antenna 2.4 GHz

19,00 EUR

excl. VAT

19,00 EUR
Sale
Orientation
Polarity
  • Omnidirectional antenna
  • Spare part
  • Model: ANT-2.4-SMA-RP-RA
  • SMA plug
  • Orientation: right-angle
  • Polarity: reversed (RP-SMA)
  • Compatible with: Lockit, LockitBT, LockitSlate Take 2, Lockit+

in stock

Item number: A80553

Omnidirectional Antenna (Spare Part)

External antenna for various Lockit Timecode & Sync Generators, straight or right-angle. 2.4 GHz version with an SMA connector.

Polarity: normal or reversed

Compatibility for normal polarity: ACL 204 (discontinued), ACN-TL (discontinued), ACN-LS (discontinued), ACN-ML (discontinued)

Compatibility for reversed polarity (RP-SMA): ACN-CL (Lockit), ACN-LB (LockitBT), ACN-LS2 (LockitSlate Take 2), ACN-LP (Lockit+)

This antenna uses a helical element to greatly reduce the length of the antenna housing. Despite its tiny size, it is ruggedly constructed and withstands even harsh environments.

  • Antenna type: whip antenna
  • Wavelength: ¼ wave
  • Number of bands: 1
  • Center frequency: 2.45 GHz
  • Bandwidth: 300 MHz
  • Impedance: 50 ohms
  • VSWR: ≤ 2.0
  • Nominal gain: 0 dBi
  • Connector: SMA plug (normal or reversed polarity, depending on variant)
  • Mounting type: connector mount
